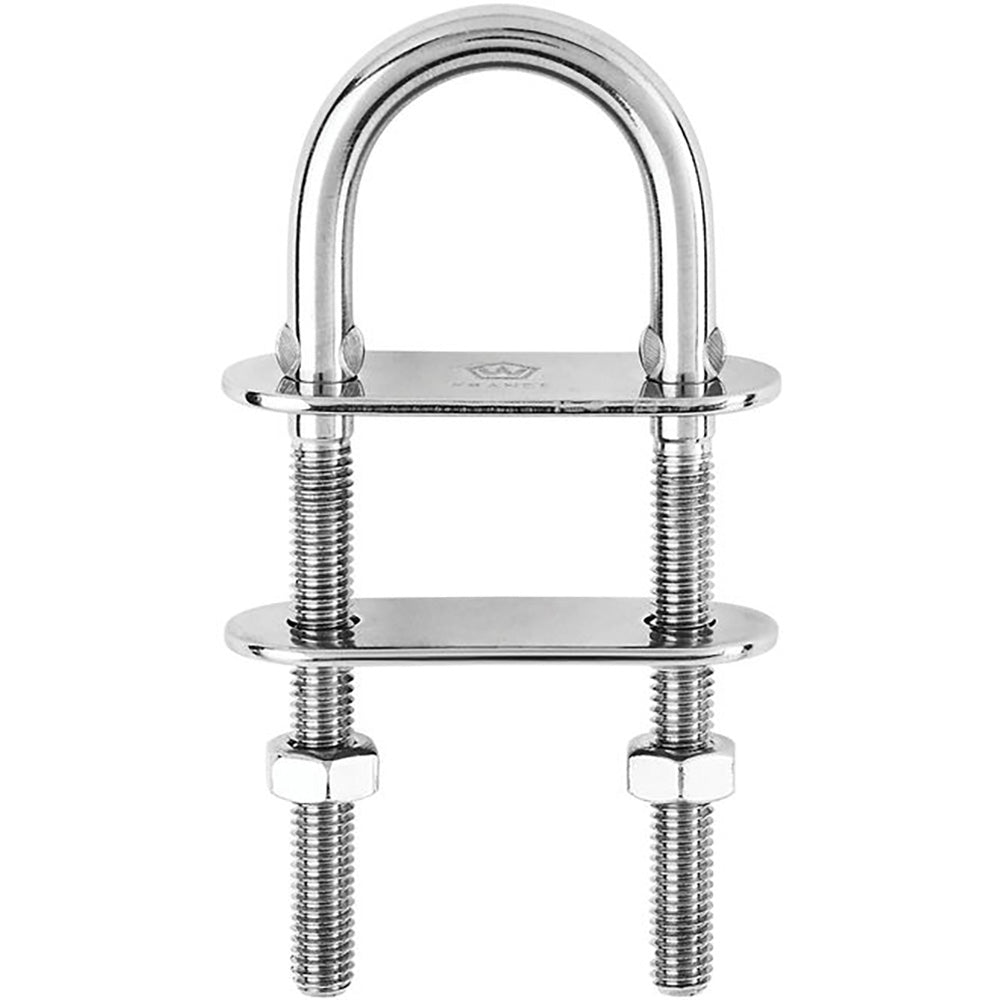

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications
Specifications
Identification
| MPN | 6526W |
|---|

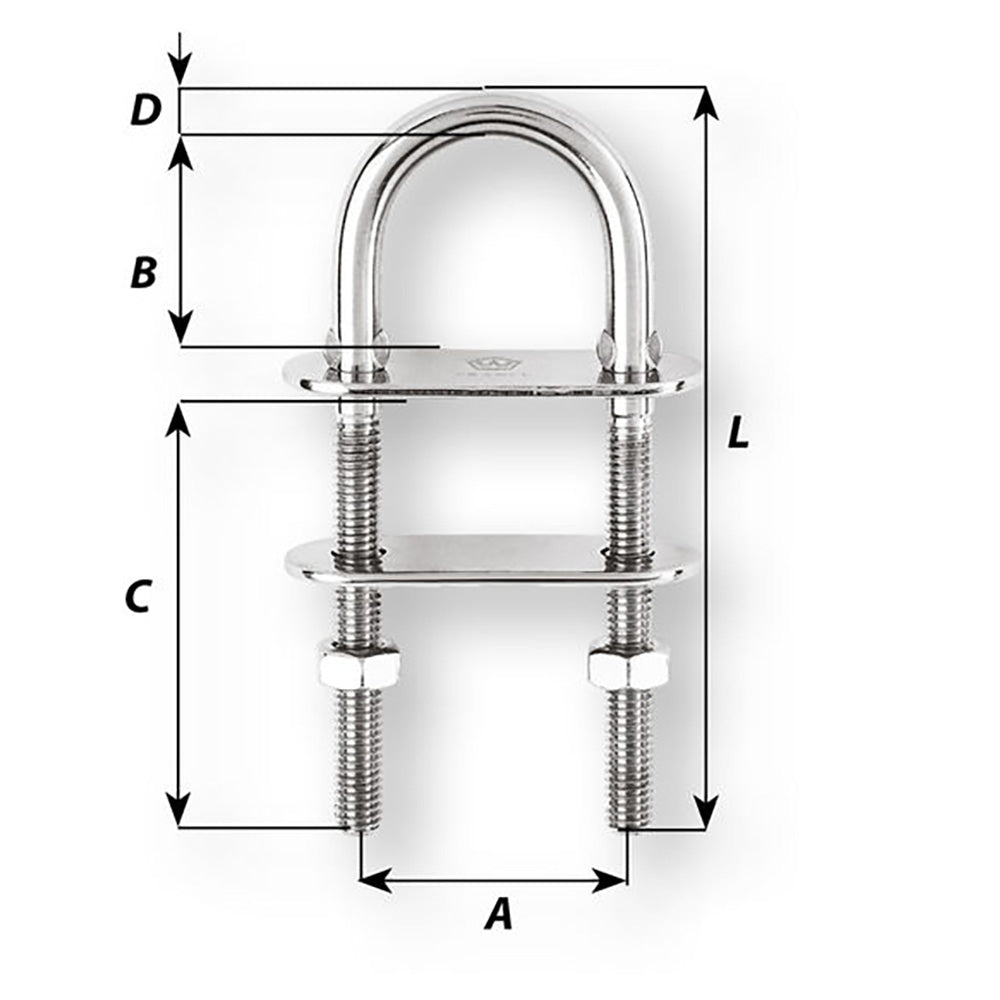

Dimensions:
| A | (inch) 1 47/64" / (mm) 44 |
|---|---|
| B | (inch) 1 11/32" / (mm) 34 |
| C | (inch) 2 3/4" / (mm) 70 |
| D diameter | (inch) 15/32" / (mm) 12 |
| Length | (inch) 5 1/8" / (mm) 130 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
