Descripción
Descripción

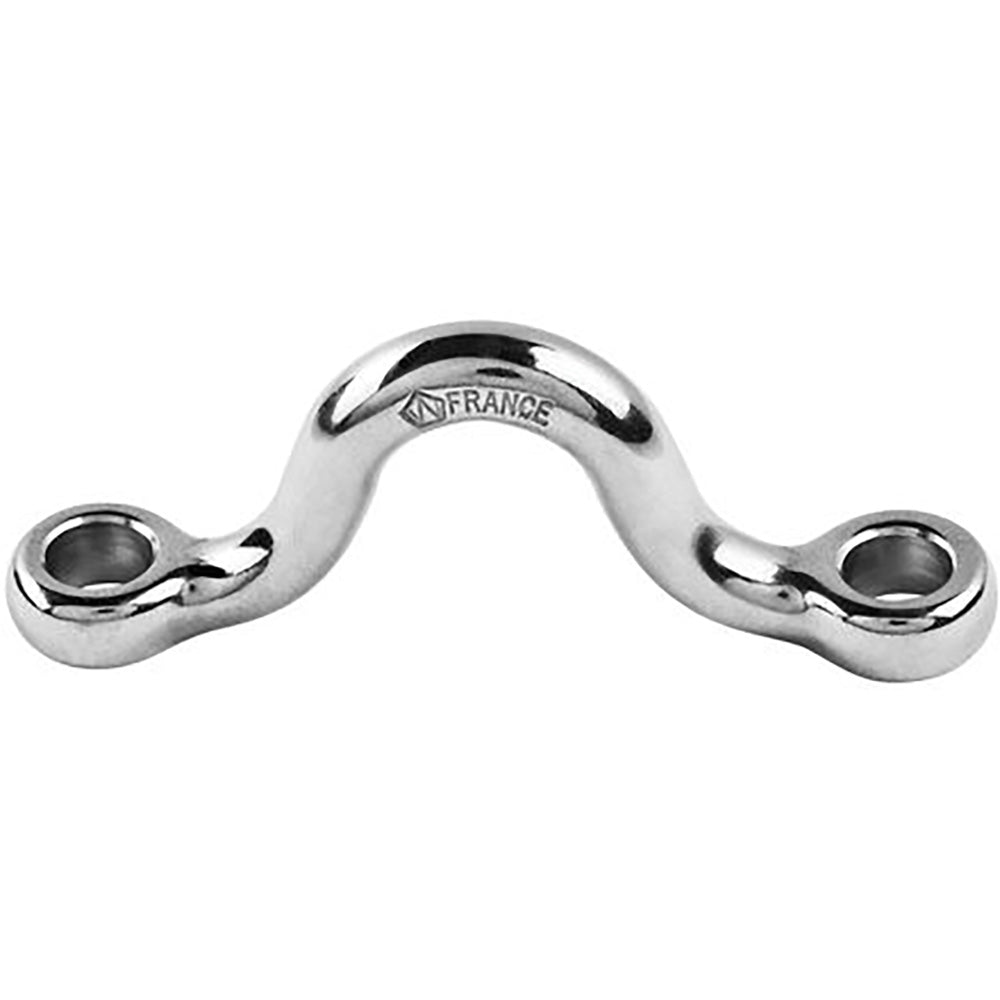

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes...)
Applications:
- Fastening applications
- Attachment of straps & cordage
Specifications
Specifications
Identification
| MPN | 9201W |
|---|

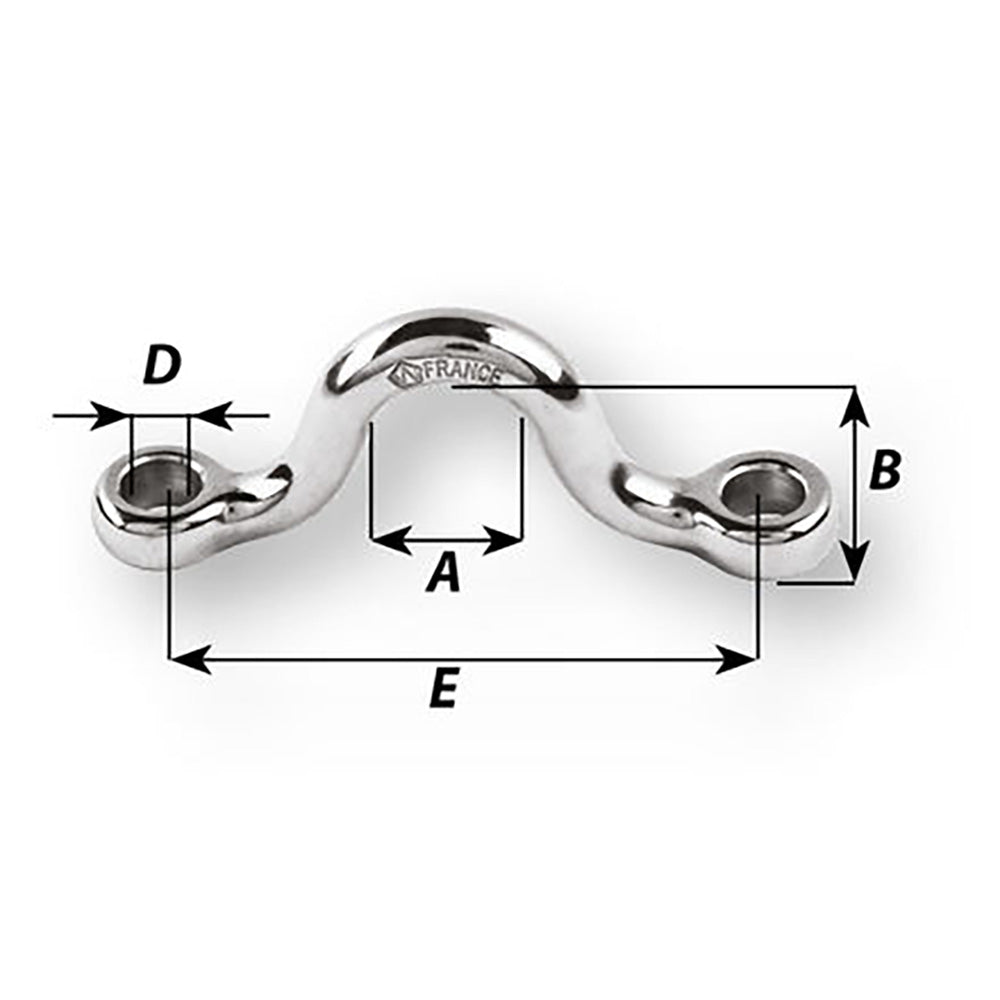

Dimensions:
| A | (inch) 5/16" / (mm) 8 |
|---|---|
| B | (inch) 7/16" / (mm) 11 |
| D diameter | (inch) 5/32" / (mm) 4 |
| E | (inch) 1 17/64" / (mm) 32 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
