SKU:
WIC/9222W
Precio de venta
$2383
Precio normal
$2804
Precio unitario
Descripción
Descripción

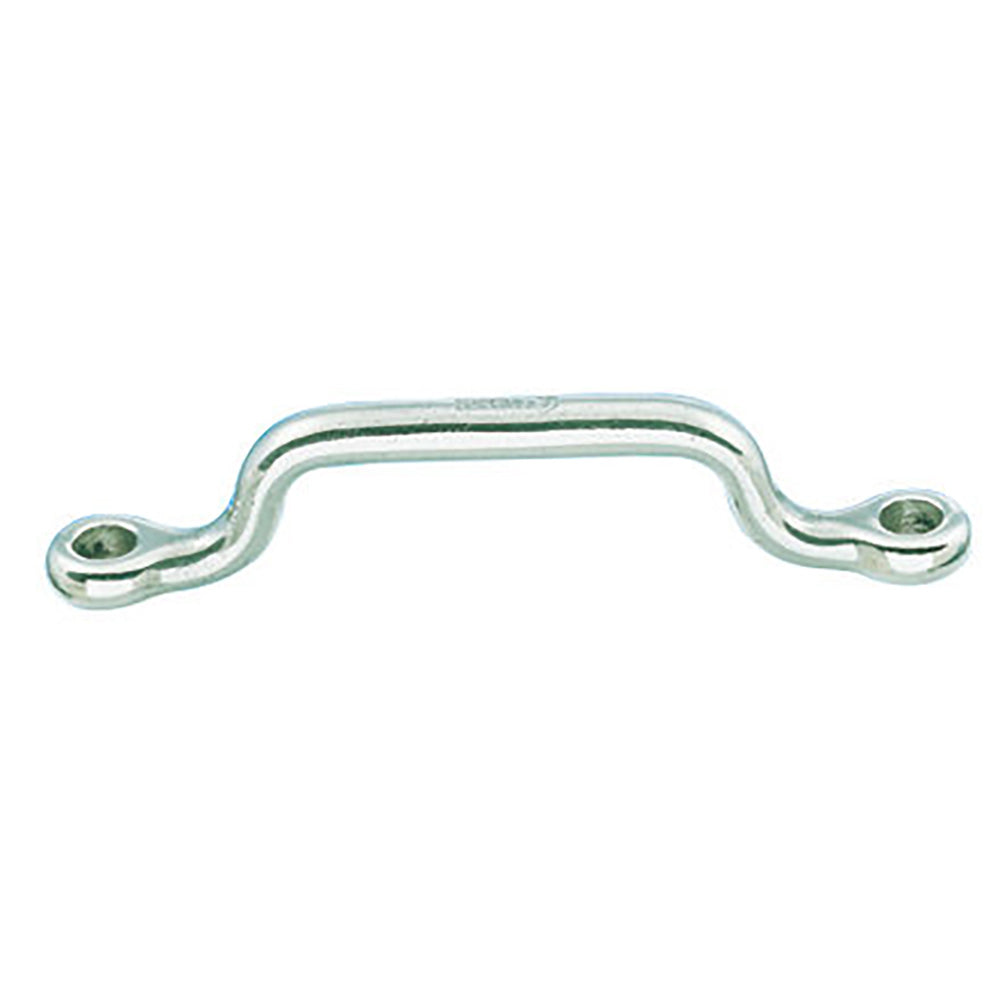

Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64"
Features:
- Drop-forged webbing eye straps with high-quality stainless steel (316L)
- Outstanding strength
- Specific use for webbing
Applications:
- The perfect solution to attach webbing
Specifications
Specifications
Identification
| MPN | 9222W |
|---|---|
| Barcode | 3587790092226 |

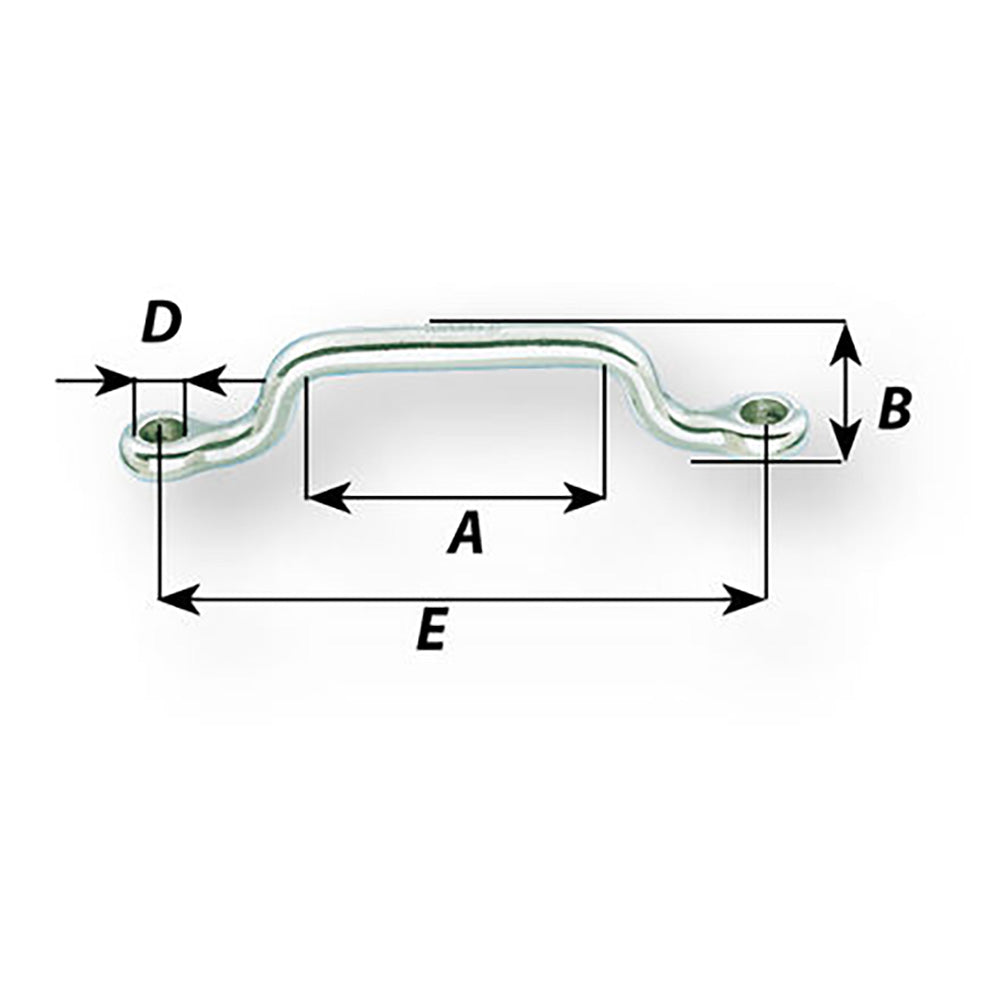

Dimensions:
| A | (inch) 1 31/32" / (mm) 50 |
|---|---|
| B | (inch) 15/32" / (mm) 12 |
| D diameter | (inch) 13/64" / (mm) 5 |
| E | (inch) 3 25/64" / (mm) 86 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
