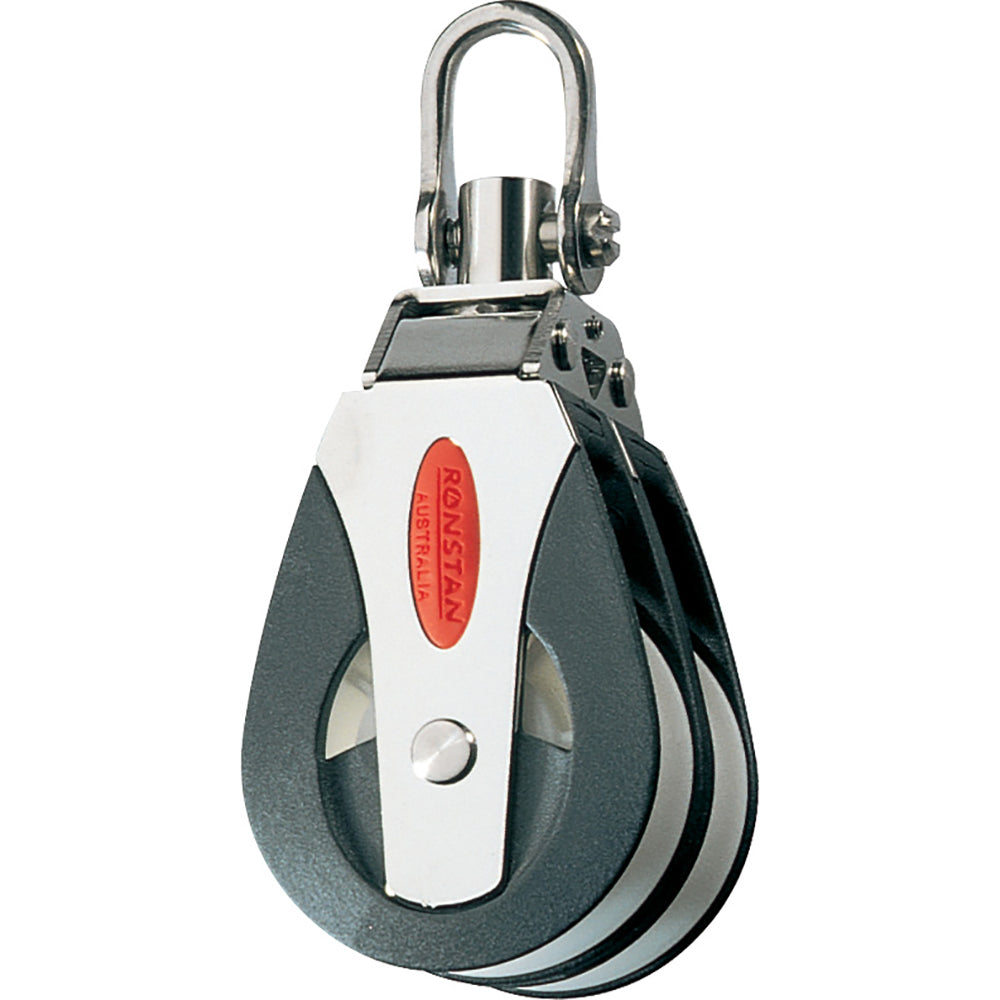

Series 50 All Purpose Block - Double
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Swivel shackle head for full 360 degree rotation (non-locking).
Features:
- Exceptionally high working loads
- Low maintenance & long service life
- Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
- Slotted pin shackle eliminates fouled lines
Applications:
- Mainsheet and halyard applications, vang and spinnaker control lines on boats to (33ft). 10m
- S60 - on boats up to 40ft, (12m)
Materials:
- Grade 316 stainless steel load strap
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications
Specifications
Identification
| MPN | RF51200 |
|---|---|
| Barcode | 9316800241231 |
Physical
| Sheave Diameter | (inch) 2" / (mm) 50 |
|---|---|
| Max Rope Diameter | (inch) 1/2" / (mm) 12 |
| Pin Diameter | (inch) 1/4" / (mm) 6 |
| Weight | (oz) 9.0 / (g) 255 |
General
| Maximum Working Load | (lb) 2200 / (kg) 1000 |
|---|---|
| Breaking Load | (lb) 4410 / (kg) 2000 |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
