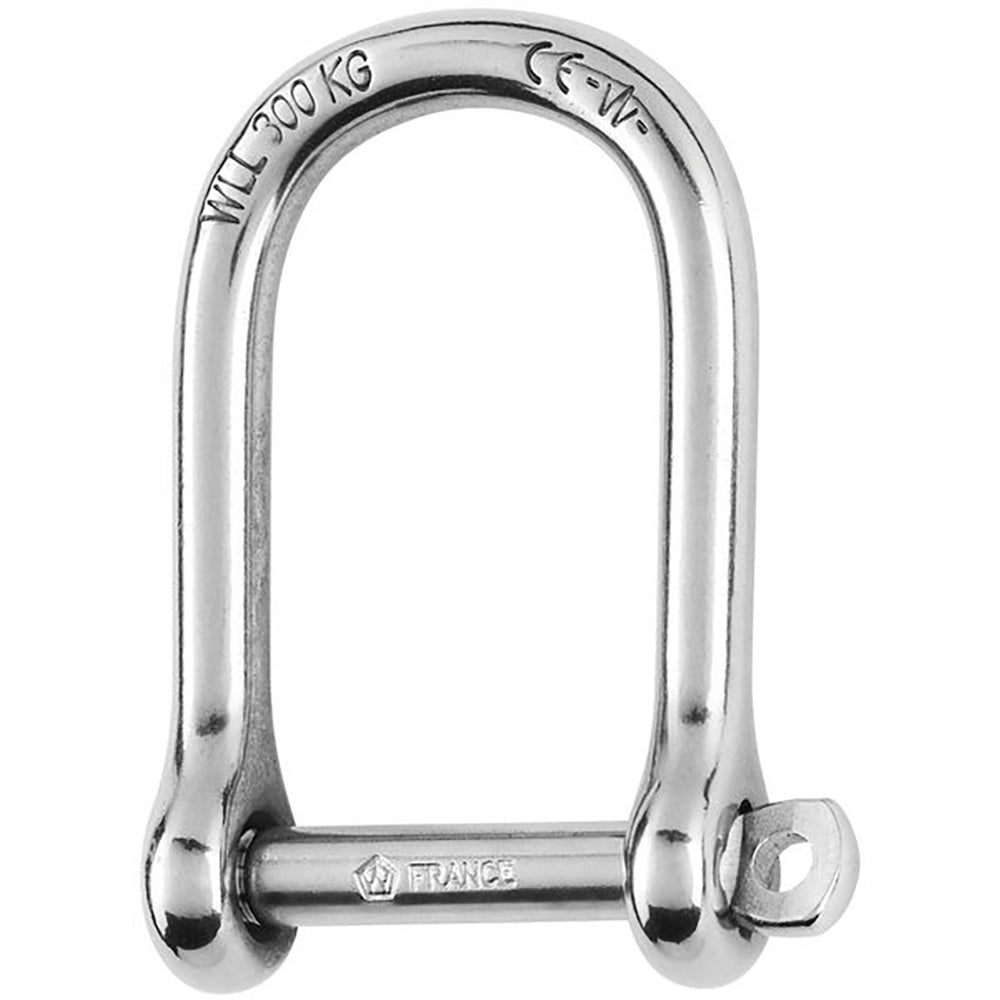

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"
Features:
- Self-locking large shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- For applications where a large opening shackle is required
Specifications
Specifications
Identification
| MPN | 1265W |
|---|---|
| Barcode | 3587790012651 |

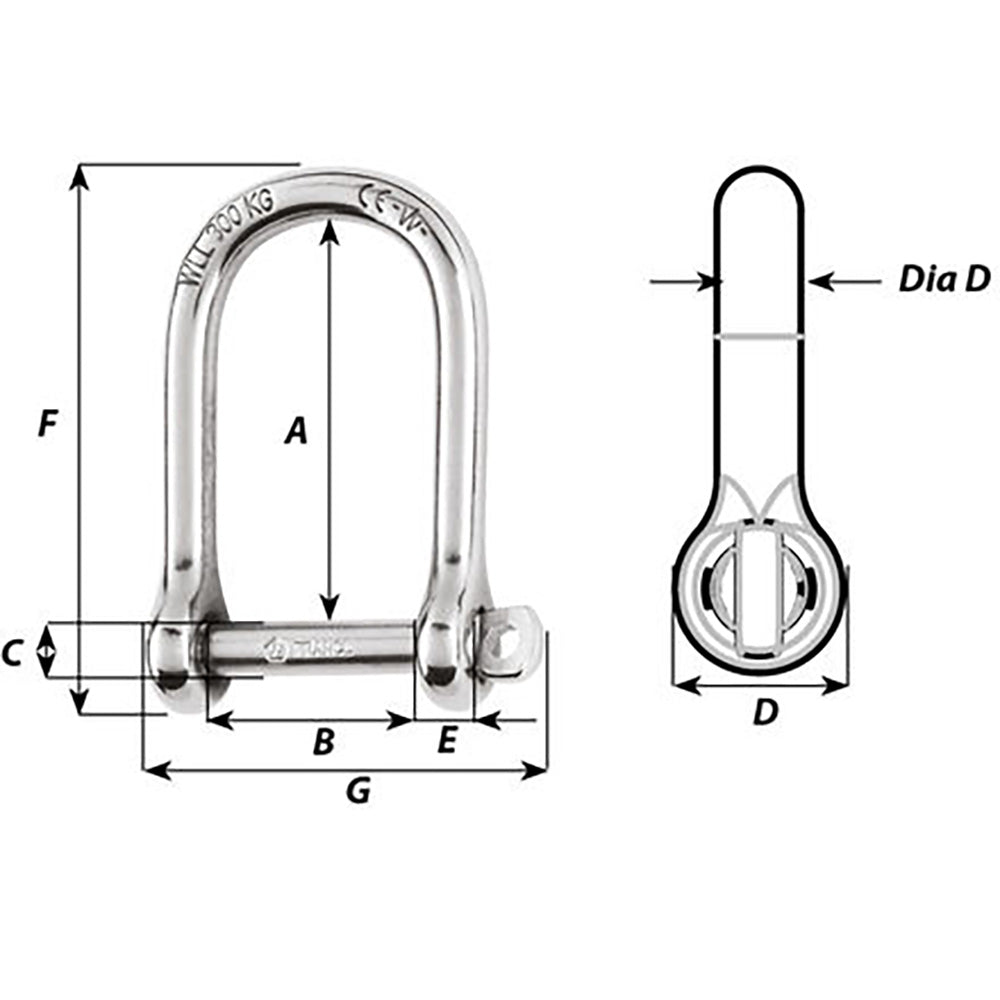

Dimensions:
| A | (inch) 2 53/64" / (mm) 72 |
|---|---|
| B | (inch) 1 37/64" / (mm) 40 |
| Note 1 | C; (inch) 25/64" / (mm) 10 |
| D | (inch) 53/64" / (mm) 21 |
| D diameter | (inch) 25/64" / (mm) 10 |
| E | (inch) 25/64" / (mm) 10 |
| G | (inch) 2 51/64" / (mm) 71 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 |
