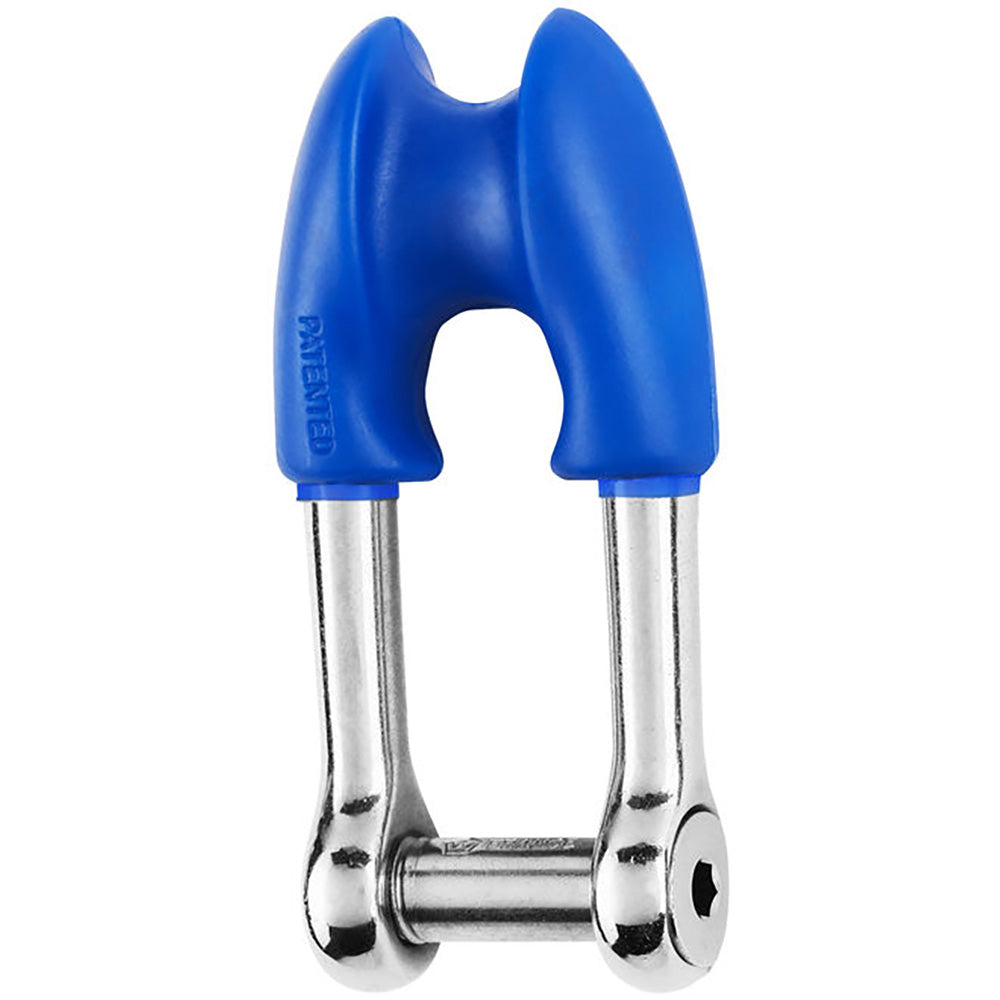

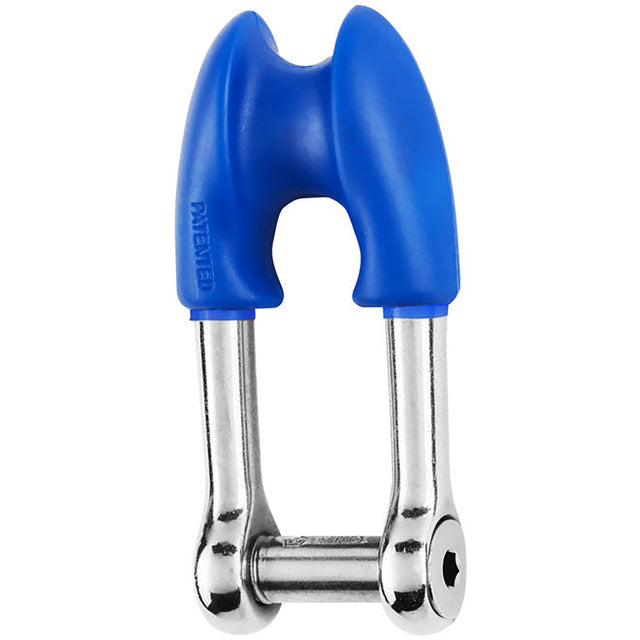

Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"
Features:
- Thimble shackle with allen head pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding and additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 12 mm
Specifications
Specifications
Identification
| MPN | 1394W |
|---|

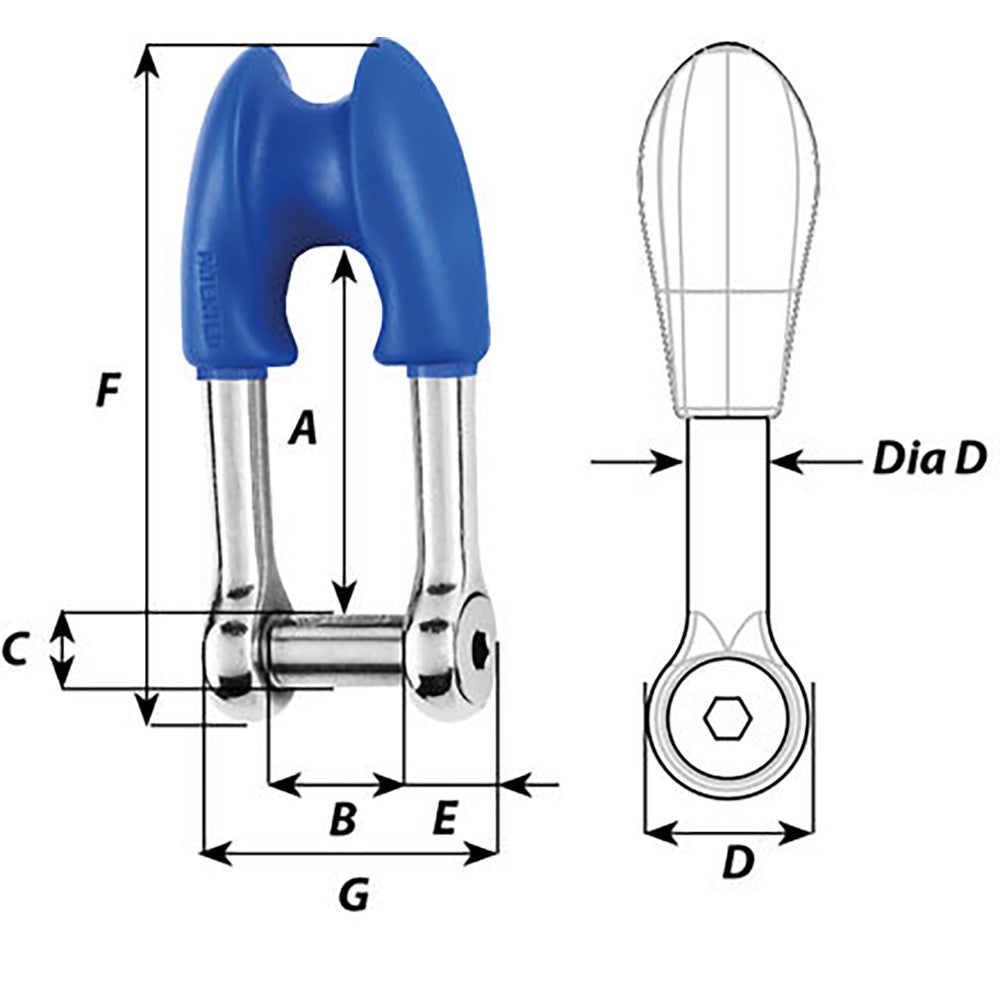

Dimensions:
| A | (inch) 1 39/64" / (mm) 41 |
|---|---|
| B | (inch) 5/8" / (mm) 16 |
| C | (inch) 5/16" / (mm) 8 |
| D | (inch) 5/8" / (mm) 16 |
| D diameter | (inch) 5/16" / (mm) 8 |
| E | (inch) 9/32" / (mm) 7 |
| F | (inch) 2 63/64" / (mm) 76 |
| G | (inch) 1 19/64" / (mm) 33 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
