Descripción
Descripción

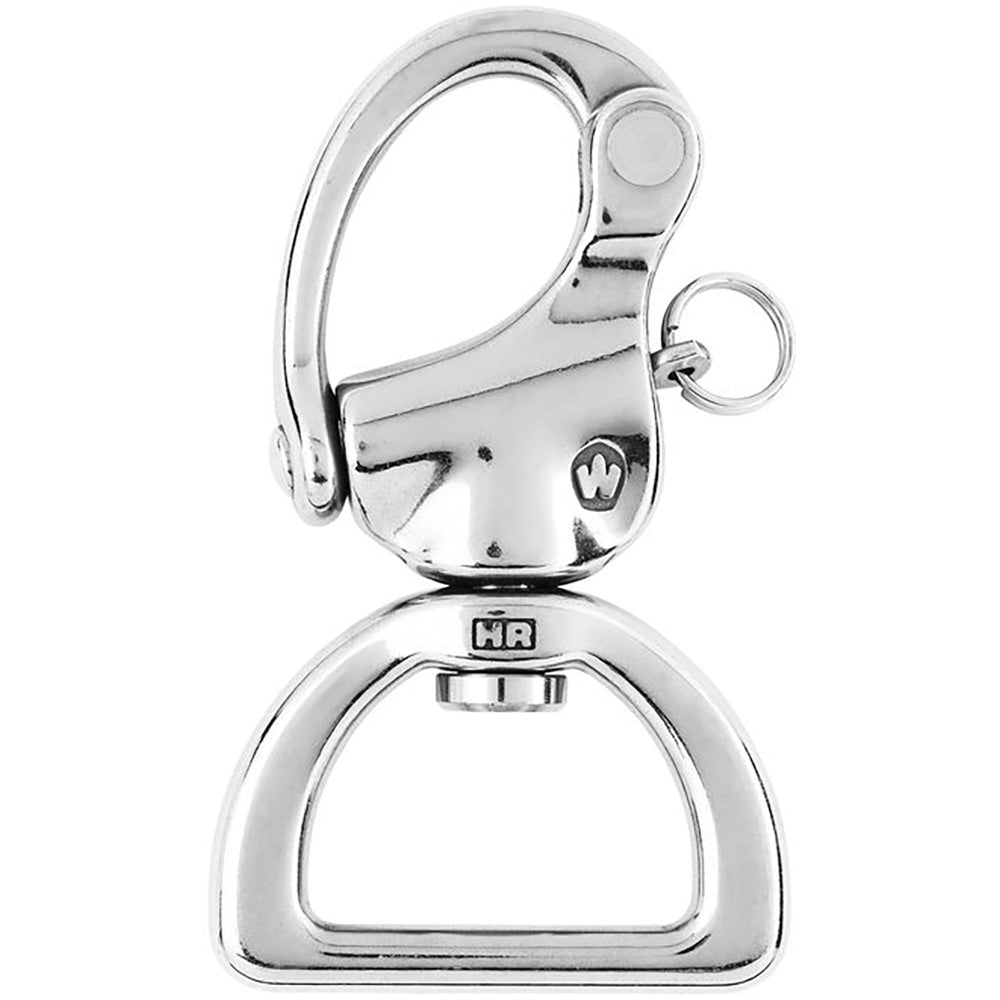

Web Snap Shackle - 3-1/8"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
- Its flat design allows attaching a webbing
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications
Specifications
Identification
| MPN | 2374W |
|---|---|
| Barcode | 768536023749 |

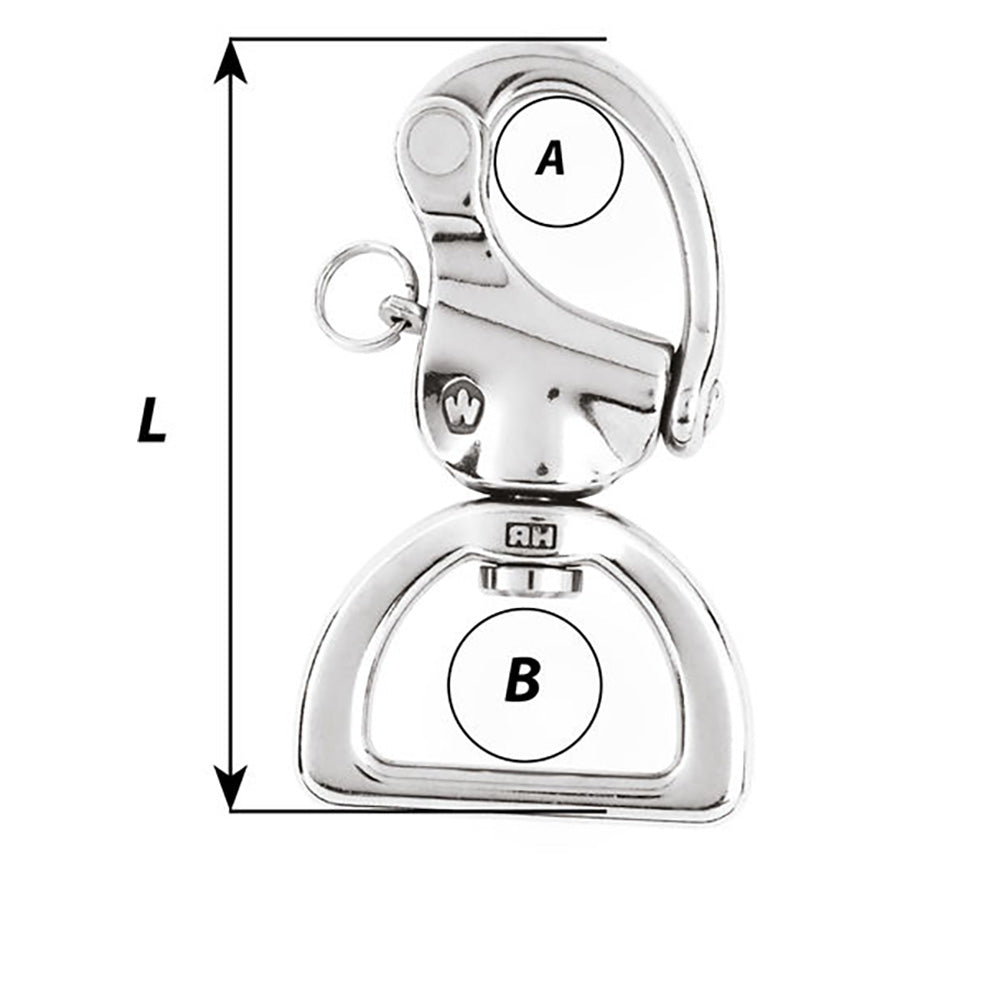

Dimensions:
| A | (inch) 5/8" / (mm) 16 |
|---|---|
| B | (inch) 1 3/16" / (mm) 30 |
| Length | (inch) 3 5/32" / (mm) 80 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
| Note 1 | High Resistance (HR) |
