Shakespeare Galaxy 5018 15' 2” VHF Antenna - 9dB Gain
Descripción
Descripción
Galaxy 5018 15' 2” VHF Antenna - 9dB Gain
This highly sophisticated design is outstanding for long distance communications. Extra rugged for salt water durability, and stability in high seas. Surprisingly light weight.
Features:
- Phased 1/2 wave elements in a collinear array with choking sleeve to suppress cable radiation
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread

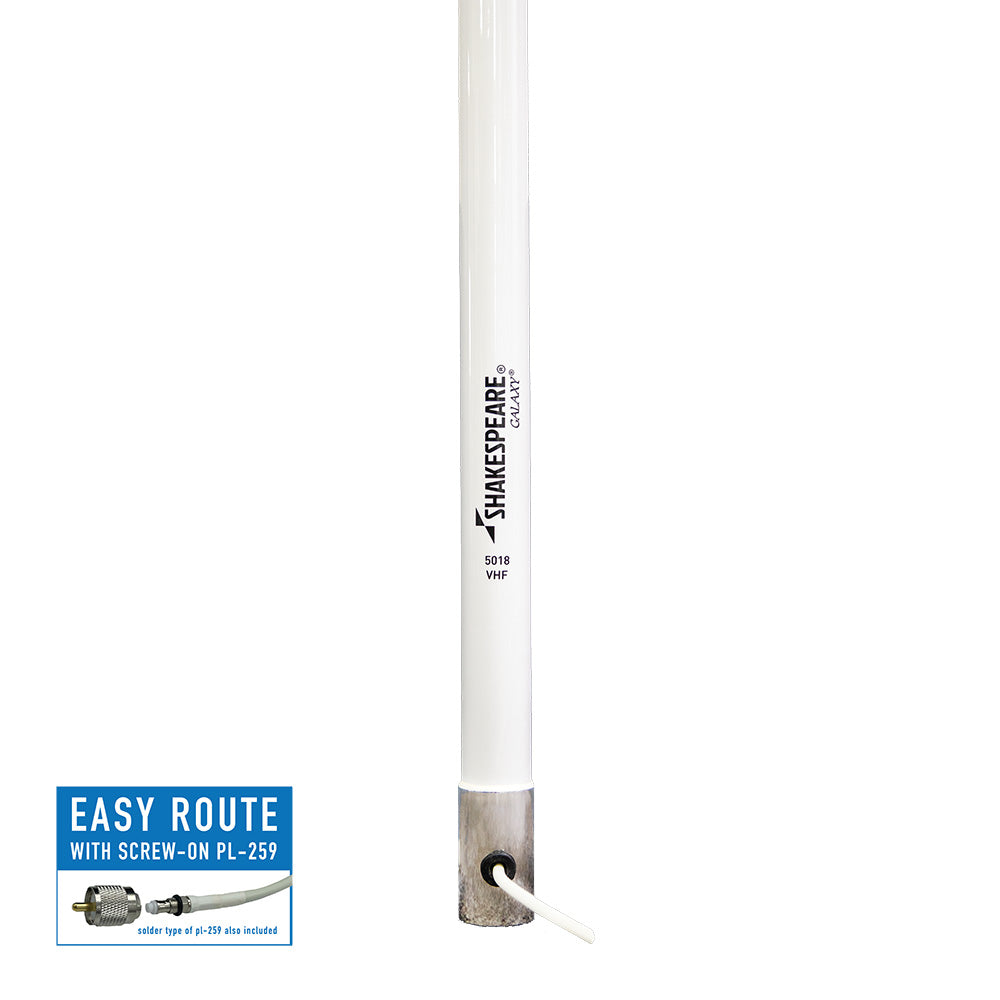

- 20' RG-8/X low-loss cable plus a PL-259 connector
- Two sectiions
- 5 Year Warranty
Specifications
Specifications
Identification
| MPN | 5018 |
|---|---|
| Barcode | 719441200091 |
Performance
| Gain | 9dB |
|---|---|
| Frequency | VHF Marine Band |
Physical
| Bandwidth | (within 2.0:1 VSWR) 3 MHz |
|---|---|
| Height (Feet) | 15'2" |
| Suggested Mount | Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included) |
General
| SWR | 1.5:1 at 156.8 MHz |
|---|---|
| Max Input (Watts) | 150W |
| DC Ground | NO |
| Polarization | Vertical |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
