Descripción

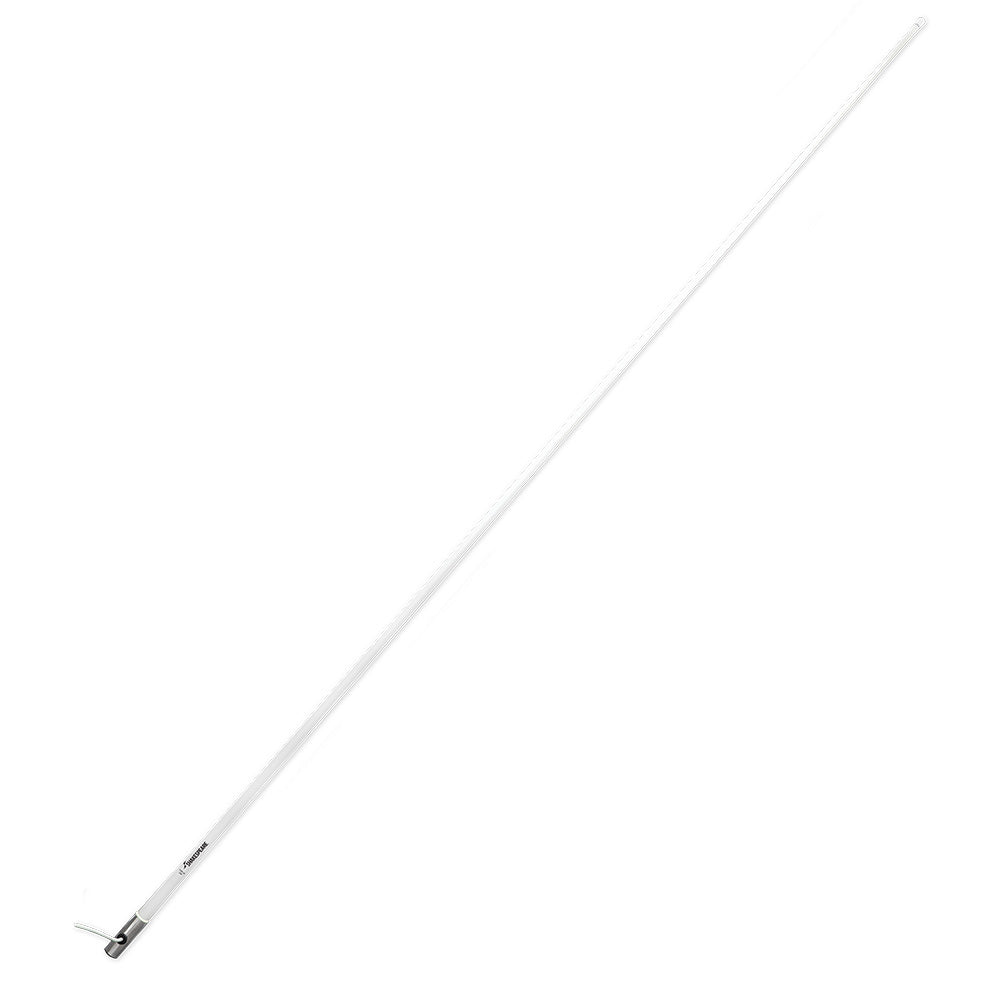

5101 8’ Classic VHF Antenna with 15' RG-58 Cable - White - Reduced Length Version

END-FED WITH MATCHING STUB

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high-gloss, polyurethane finish that won't turn yellow in the sun. This antenna delivers not only performance, but superb value.

Features:

Brass and copper elements

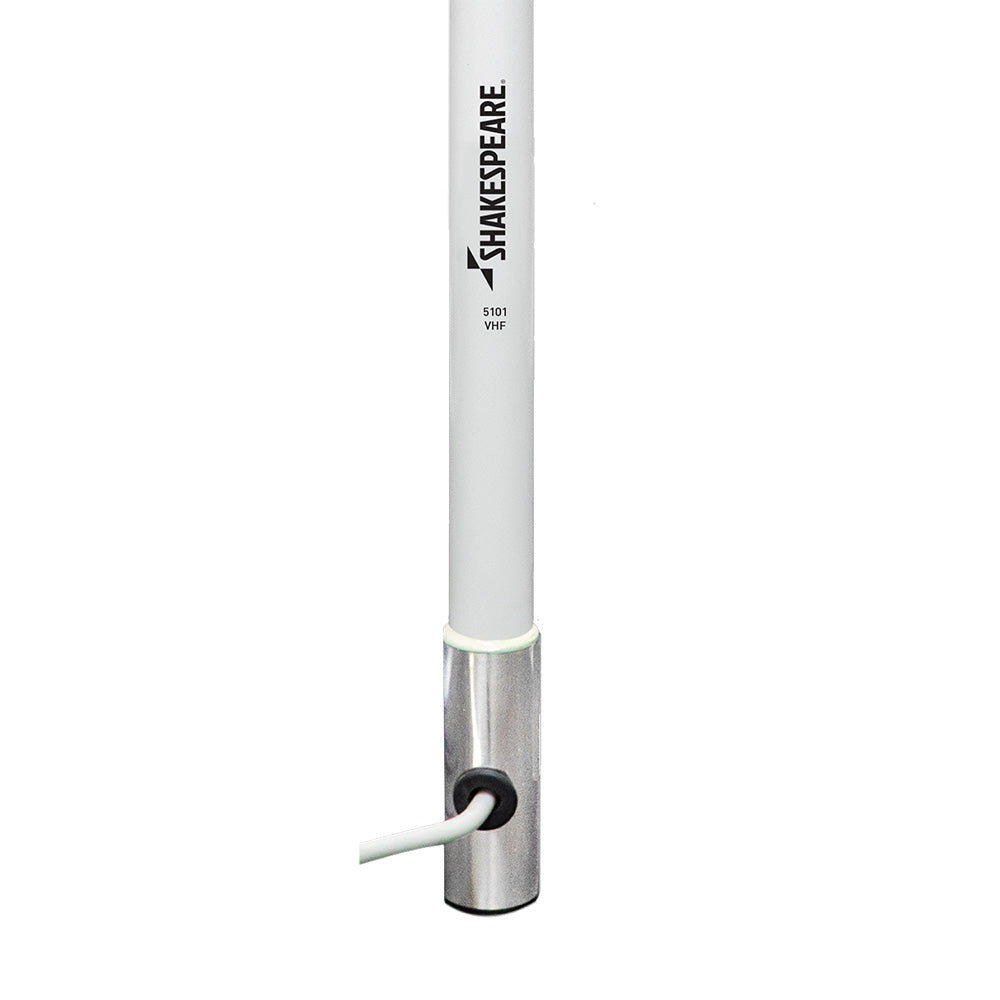

Chrome-plated brass ferrule with standard 1"-14 thread
Includes 15' RG-58 cable and a PL-259 connector
One section

Specifications

Identification

MPN	5101
Barcode	719441100490

Performance

Frequency	VHF Marine Band
Impedance	(Ohms): 50
Gain	6 dB

Physical

Bandwidth	(within 2.01 SWR): 5 MHz
Height (feet)	8'
Suggested mount	Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system

General

SWR	1.5:1 at 156.8 MHz
Max. Input (Watts)	50
DC Ground	YES - however, the antenna will read "open circuit" when tested with an ohmmeter.
Termination	15' RG-58 cable
Polarization	Vertical
Radiation pattern	Omni-directional
