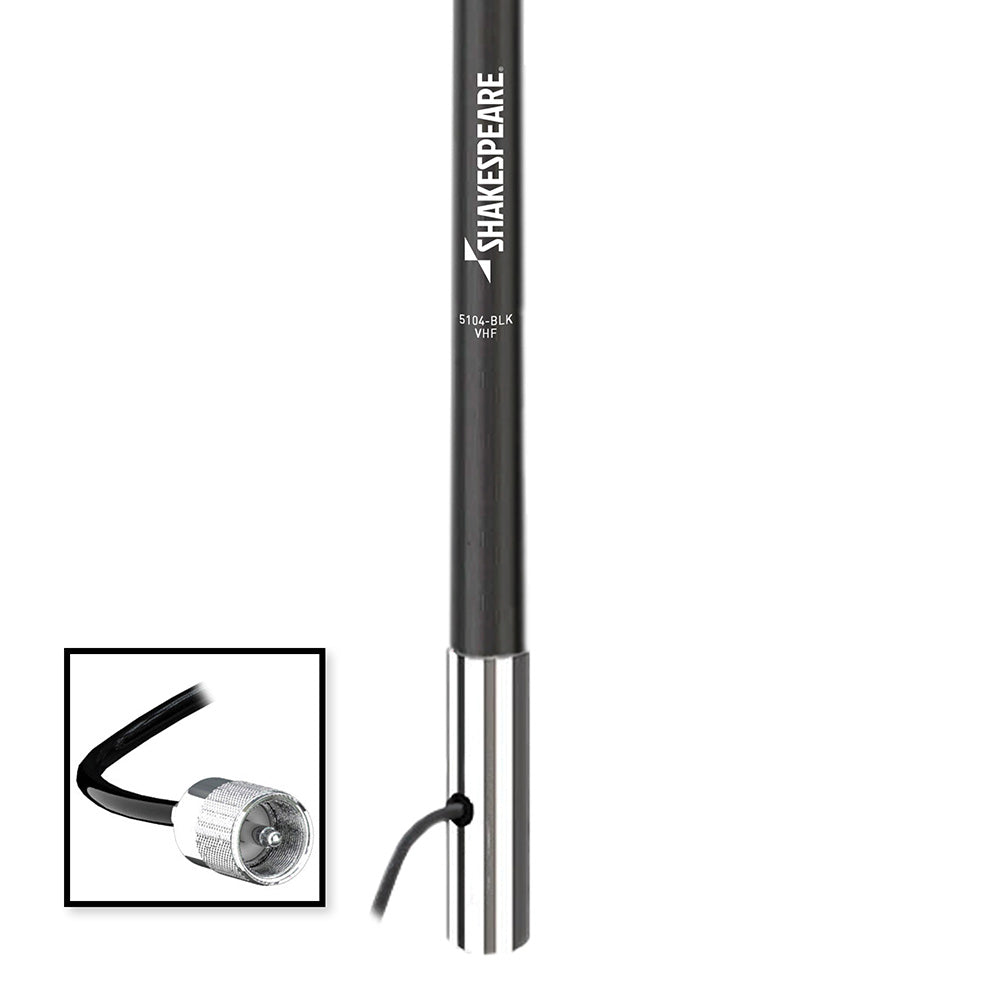

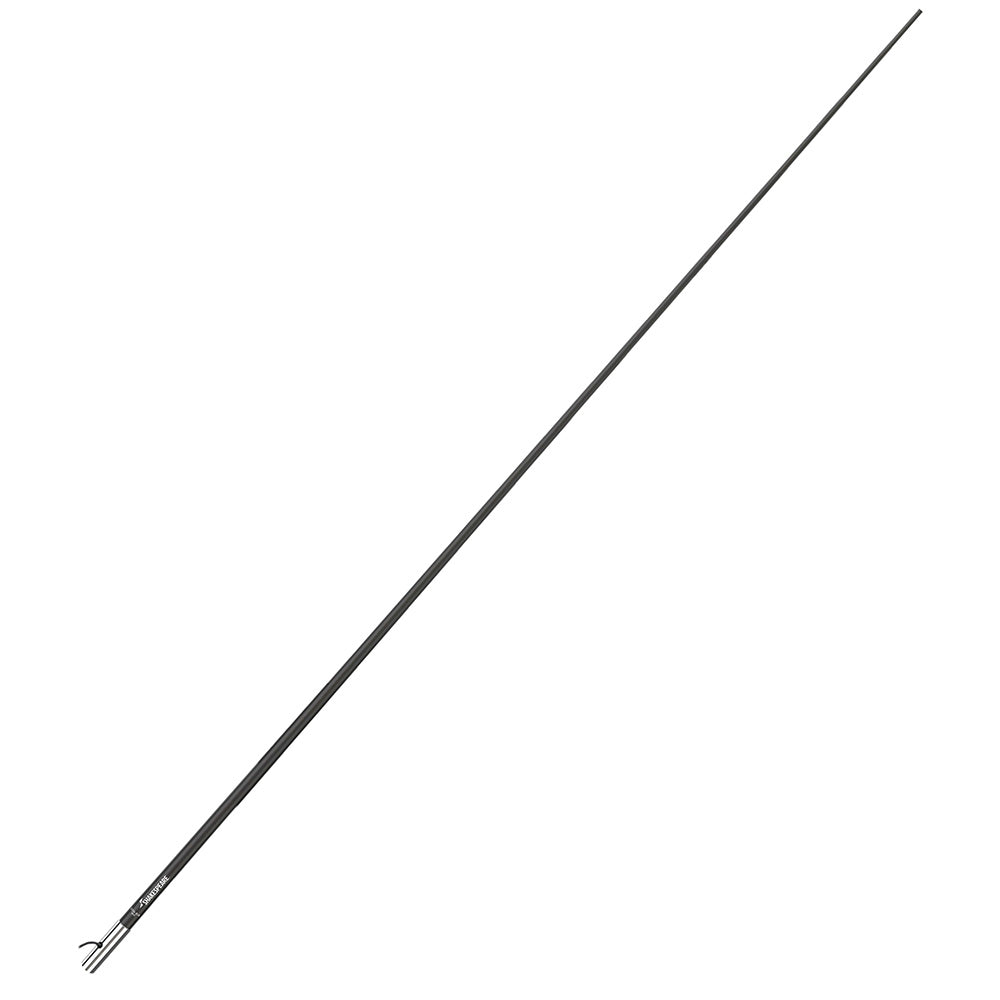

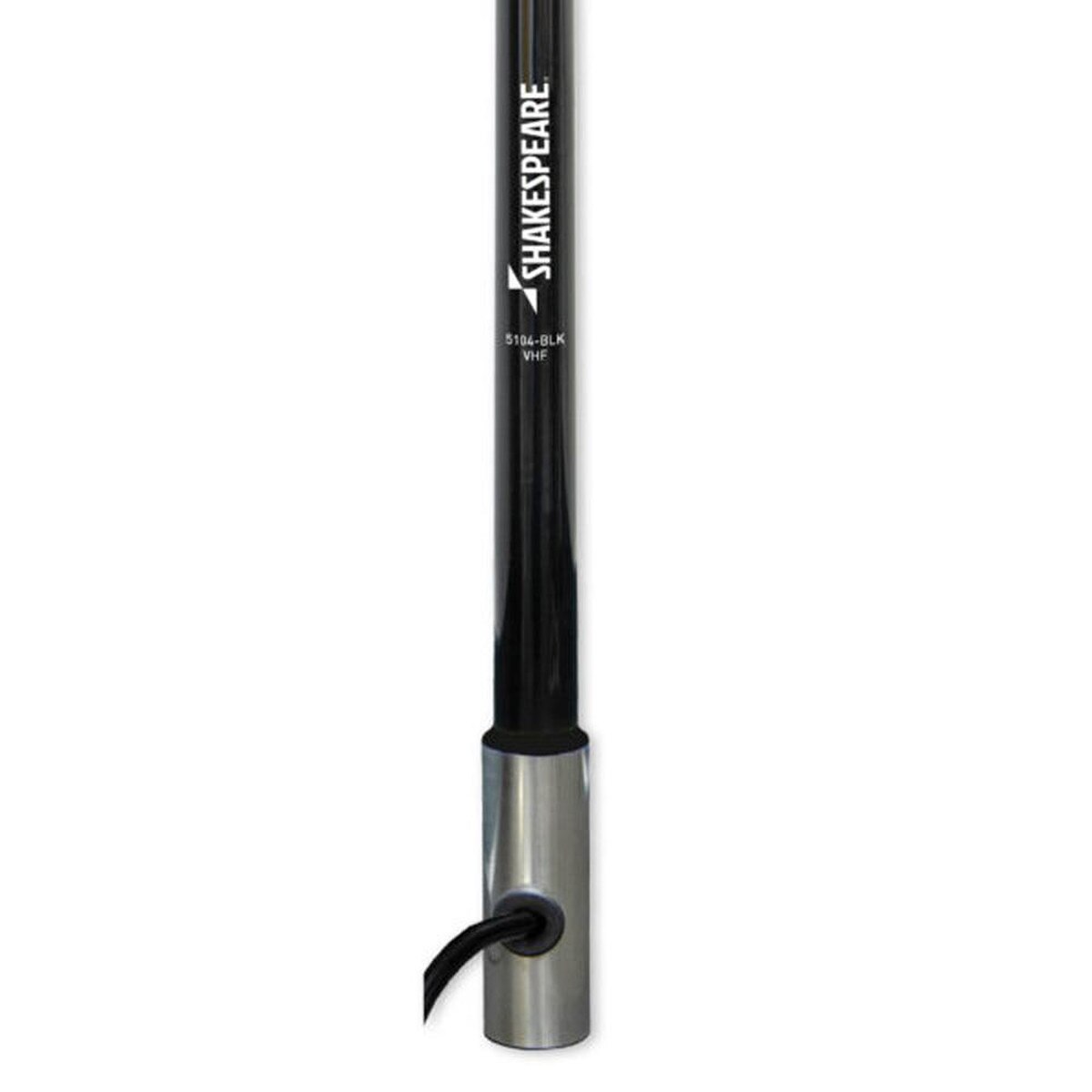

Shakespeare 5104 4’ Classic VHF Antenna w/15' RG-58 Cable - Black
Descripción
Descripción
5104 4’ Classic VHF Antenna with 15' RG-58 Cable - Black
Four-foot, 3dB antenna with a great selection of high-end features. Brass and copper elements for performance, plus a smooth, high-gloss, polyurethane finish that won't turn yellow in the sun. Superb value, and excellent performance in a great-looking antenna.
Features:
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1in-14 thread
- Includes 15ft RG-58 cable, which can be cut to size, and a PL-259 connector
- Smooth, durable, high gloss finish
- One section
Specifications
Specifications
Identification
| MPN | 5104-BLK |
|---|---|
| Barcode | 719441101114 |
General
| Band | VHF Marine Band |
|---|---|
| SWR | nominally 1.5:1 at 156.8 MHz |
| Coax Supplied | 15 ft of RG-58 |
| Connector Supplied | PL-259, not installed |
Performance
| Antenna Gain | 3dB |
|---|---|
| Impedance | 50 Ohms |
Electrical
| Max. Input Power | 50W |
|---|---|
| Polarity | Vertical |
Physical
| Bandwidth | 5 MHz within 2.0:1 VSWR |
|---|---|
| Color/finish | White |
| Suggested mount | Style 4187 or 5187 Ratchet Mount (each sold separately) |
Certifications & Protection
| Ferrule | Chrome-plated brass |
|---|---|
| Shakespeare Limited Warranty | 2 years |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
