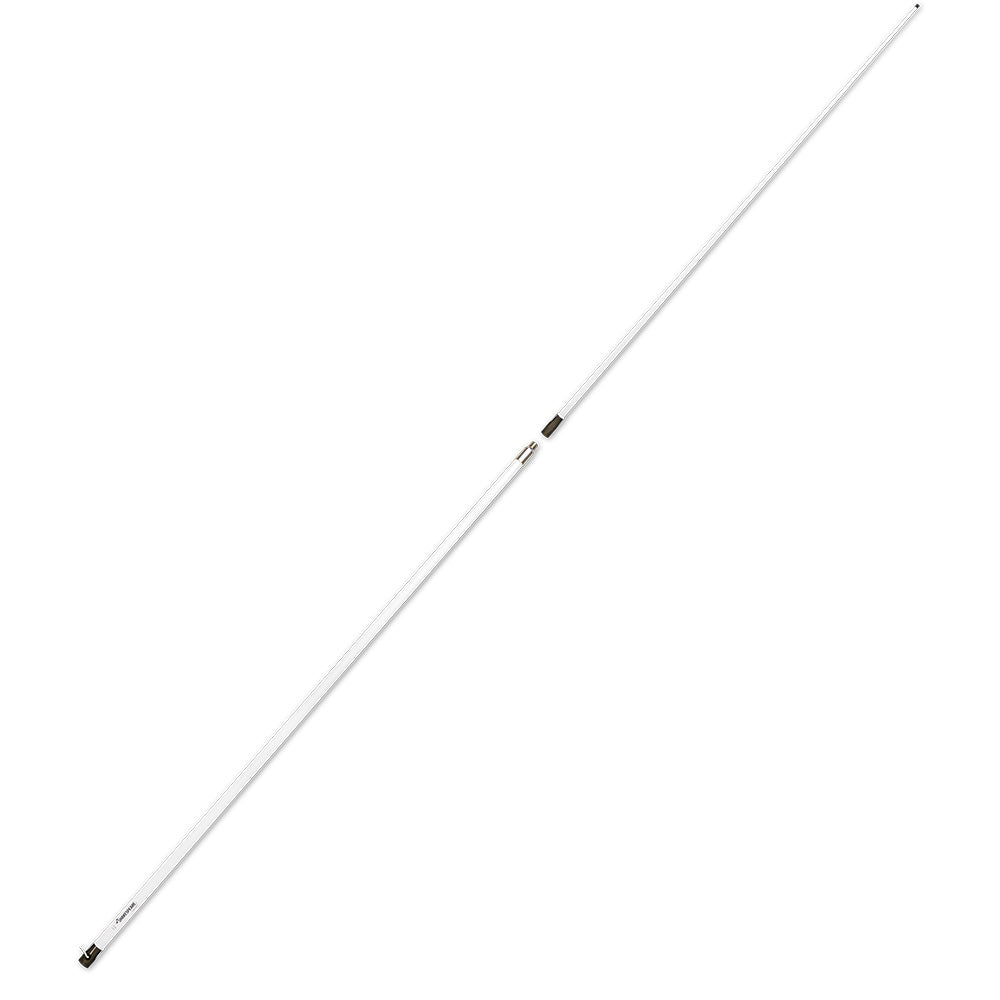

Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain
Descripción
Descripción
Galaxy 5230 14' VHF Antenna - 8dB Gain
The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
Features:
- 5/8 wave over 1/2 wave dipole
- Brass and copper elements for maximum range and efficiency

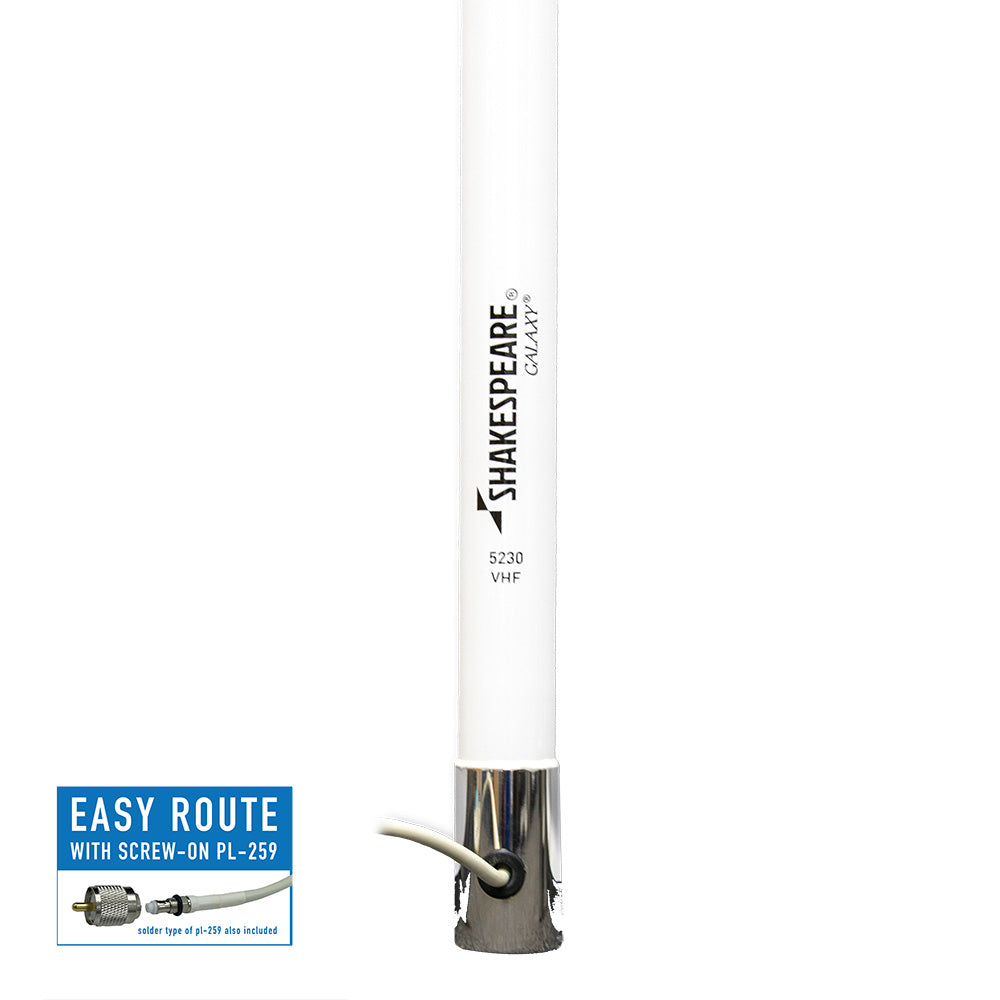

- Stainless steel ferrule with standard 1"-14 thread
- Includes 20 feet of RG-8/X cable and a PL-259 connector
Specifications
Specifications
Identification
| MPN | 5230 |
|---|---|
| Barcode | 719441200084 |
Performance
| Frequency | VHF Marine Band |
|---|---|
| Impedance | 50 ohms |
| Gain | 8 dB |
Physical
| Bandwidth | 3 MHz within 2.0:1 VSWR |
|---|---|
| Height (feet) | 14 |
| Suggested mount | Shakespeare Style 409-R or 410-R Mounting Kit |
General
| SWR | Nominally 1.5:1 at 156.8 MHz |
|---|---|
| Max Input (Watts) | 200 watts |
| DC Ground | YES |
| Polarization | Vertical |

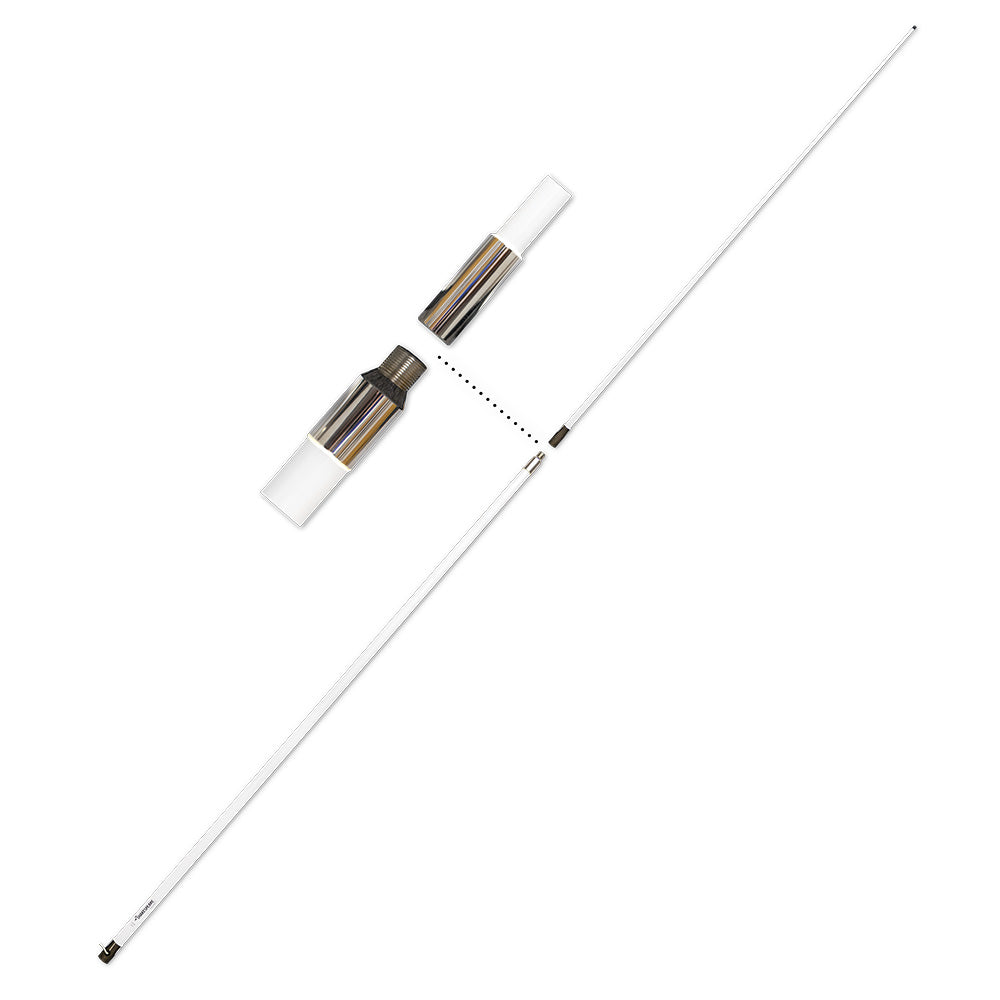

| Two sections | Base 94", Tip 74" - |
Certifications & Protection
| Shakespeare Limited Warranty | 5 years |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
