Simrad | SKU: SIM/000-13946-001 | Código de barras: 9420024163368

B45

Name: B45
Brand: Simrad
SKU: SIM/000-13946-001
Price: 338.00 USD
Availability: InStock

600w 50/200khz Thru-Hull Transducer w/ Fairing Block

$338⁰⁰

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

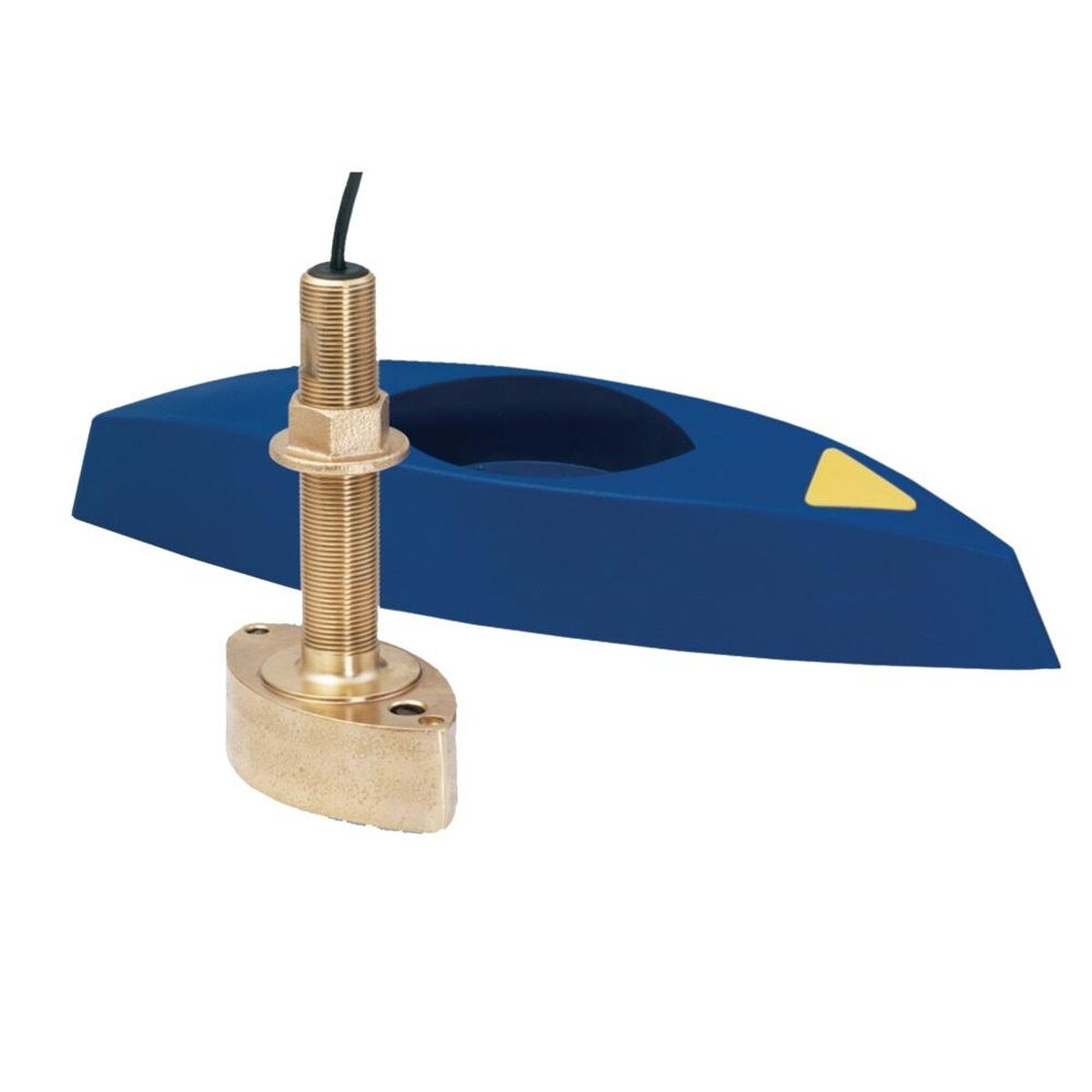

The B45 is a bronze, depth/temp thru-hull transducer featuring 50/200 kHz sonar frequencies.

Product Series

B45
MPN

000-13946-001
Physical

Transducer Dimensions: 3.96" x 2.15" x 1.24" (w/ shaft: 5.74") (101 mm x 55 mm x 32 mm (w/ shaft: 146 mm))
Fairing Dimensions: 13.64" x 2.58" x 2.94" (347 mm x 66 mm x 75 mm)
Weight: 5.5 lbs (2.5 kg)
Mounting

Mounting Style: Thru-Hull w/ Fairing
Max Deadrise: 26°
Sonar

Power: 600 W
Frequency: 50/200 kHz
Beamwidth: 45°/12°
Max Depth (Freshwater): 1200'
Temperature: Yes
Connectivity

Navico (Simrad/Lowrance/B&G) xSonic 9pin
Cable Length (Ft)

33
Material

Housing: Bronze
Acoustic Window: Urethane
