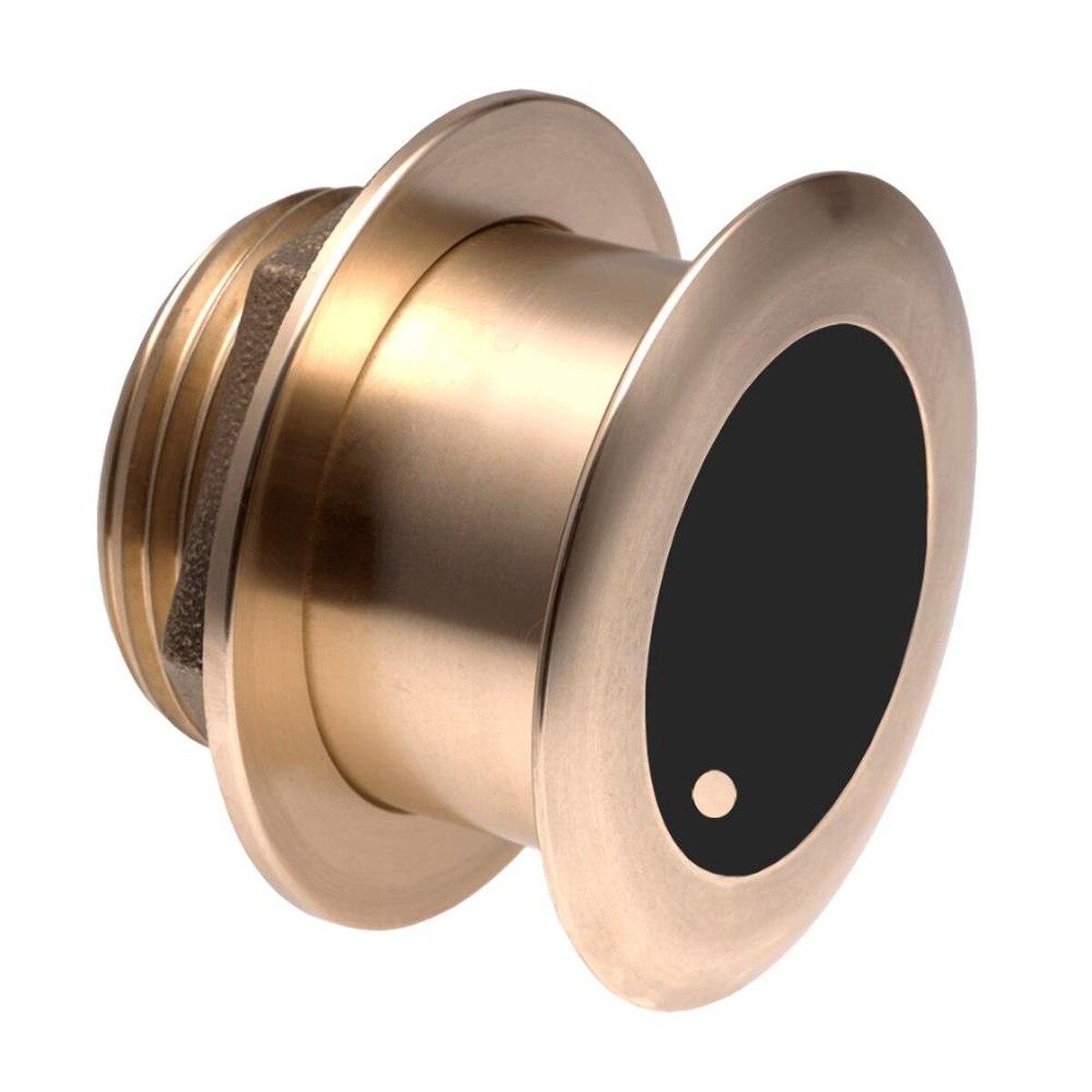

Airmar | SKU: AIR/B175C-20-MW-MM

B175C-MW-MM (20º)

Name: B175C-MW-MM (20º)
Brand: Airmar
SKU: AIR/B175C-20-MW-MM
Price: 1664.00 USD
Availability: InStock

1kW Medium-Wide CHIRP Tilted Element Thru-Hull Transducer

$1,664⁰⁰

Options

B175C-MW-MM (0º)

1kW Medium-Wide CHIRP Tilted Element Thru-Hull Transducer

B175C-MW-MM (12º)

1kW Medium-Wide CHIRP Tilted Element Thru-Hull Transducer

B175C-MW-MM (20º)

1kW Medium-Wide CHIRP Tilted Element Thru-Hull Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

* REQUIRES AIRMAR CHIRP MIX & MATCH CABLE *

Especificaciones

Product Series

B175 / SS175
MPN

B175C-20-MW-MM
Physical

Flange Size: 5.30" (135 mm)
Weight: 6 lbs (2.7 kg)
Mounting

Type: Tilted Element Thru-Hull
Hole Size: 3.75" (95mm)
Usable Shaft Length: 2.18" (55 mm)
Sonar

Power: 1000 W (1kW)
Frequency: Medium-Wide CHIRP (60 - 100 kHz)
Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
Max Depth (Fresh Water): 1300'
Temperature: Yes
Connectivity

Airmar Mix & Match 12pin CHIRP Connector
* Requires M&M Cable For Your Sounder *
Cable Length (Ft)

30
Material

Bronze
