Blue Sea Systems  |  SKU: BSS/4320  |  Código de barras: 632085043209

Water-Resistant Breaker Switch Panel - 4 Circuit

4-Circuit Switch Panel

Precio normal $5599
Options

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

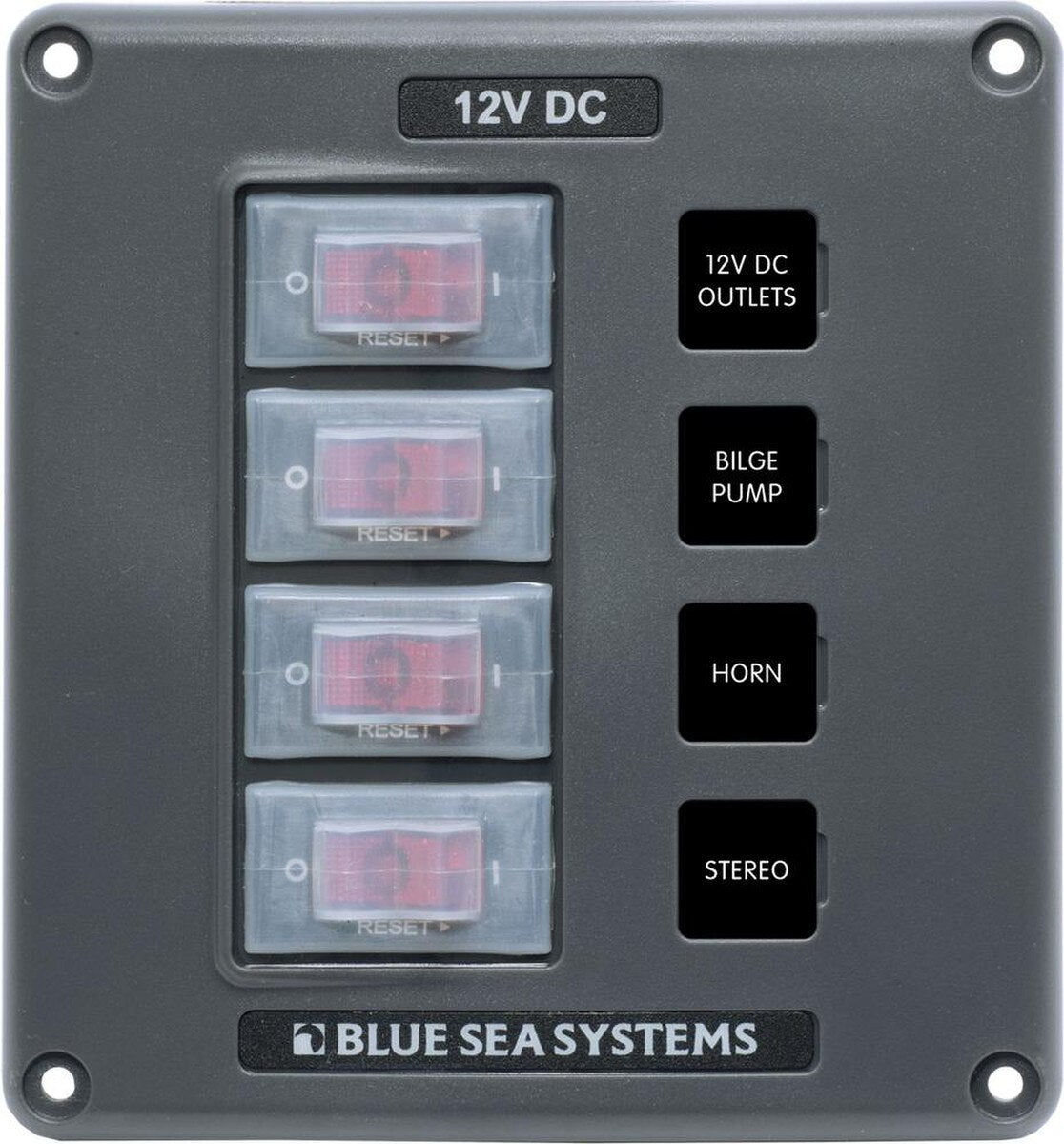

Water-Resistant 12V 4 Circuit Breaker Switch Panel with illuminated 15A breakers for reliable switching and overcurrent protection. Features industry-standard sizing for easy retrofit into existing marine applications. The polycarbonate/ABS panel is UV-stabilized, flame-retardant, and corrosion-resistant, while silicon breaker boots and gaskets seal out water ingress. Low-profile design fits tight spaces effortlessly. Fast-on connectors and simple two-wire power connection with #10 ring terminals speed up installation. Includes 15 square format circuit labels—replaceable and customizable through Blue Sea Systems.

Especificaciones

  • MPN
    4320-BSS
  • Physical
    Dimnesions:
    H: 6.625" (168.28 mm)
    W: 4.625" (117.48 mm)
    D: 1.75" (44.45 mm)
  • Power
    Voltage: 12v
    Switch Positions: 4
    Max Amperage: 15 A @ 12v DC
    Max Panel Amperage: 45 A
  • IP Rating
    IP66

Reseñas (0)

In The Box

In The Box:

Switch Panel

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
