Raymarine  |  SKU: RAY/A80041  |  Código de barras: 723193729045

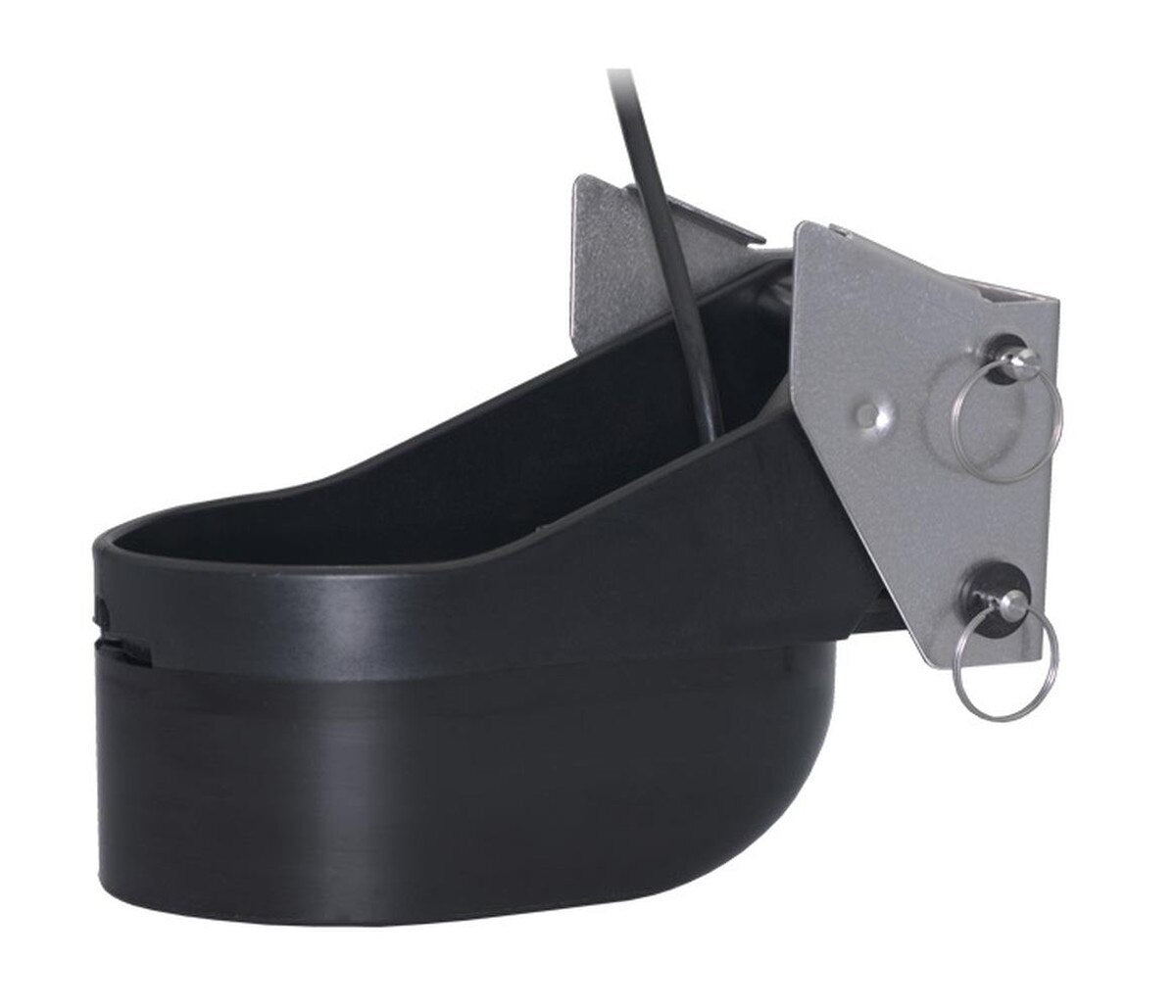

TM265LM

1kw Low/Medium CHIRP Transom Mount Transducer

Precio normal $2,09900

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

The TM265LM, Chirp-ready transom mount is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium frequency from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

Especificaciones

  • Product Series
    B265/SS265/TM265
  • MPN
    A80041
  • Physical
    Dimensions:
    H: 6.84" (174 mm)
    W: 5.34" (136 mm)
    D: 9.69" (246 mm)
    Weight: 8.9 lbs (4 kg)
  • Mounting
    Type: Transom Mount
    Transom: 0°-25°
  • Sonar
    Power: 1000 W (1kW)
    Frequency:
    Medium CHIRP
    - Frequency Range: 85-135 kHz
    - Beamwidth: 16°-11º
    Low CHIRP
    - Frequency Range: 42-65 kHz
    - Beamwidth: 25°-16º
    Max Depth (Freshwater): 3000'
    Temperature: Yes
  • Connectivity
    Raymarine 11pin
  • Cable Length (Ft)
    33

Reseñas (0)

In The Box

In The Box:

Transducer
Mounting Hardware
Documentation

Package Dimensions/Shipping:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
