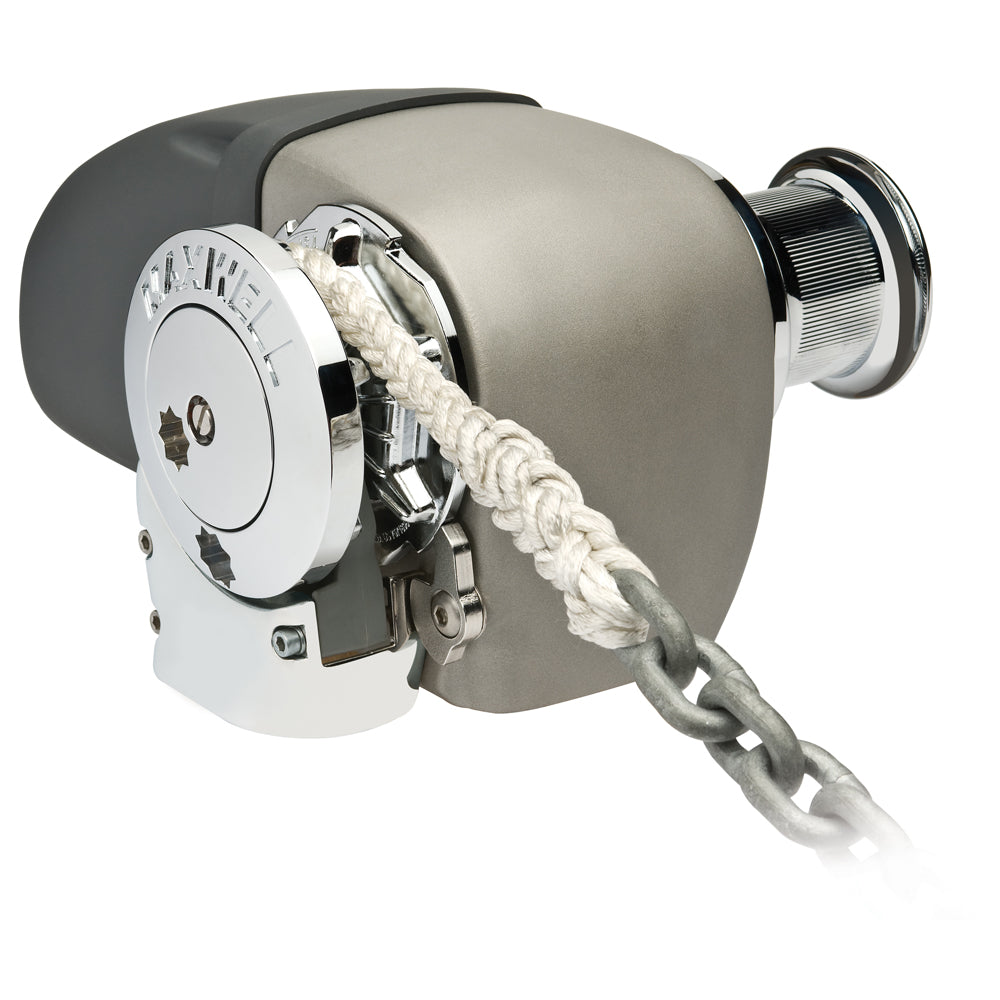

Molinete horizontal Maxwell HRC 10-8 para cadena y cabo, cadena de 8 mm (5/16"), cabo de 16 mm (5/8"), 12V, con barbotén

Name: Molinete horizontal Maxwell HRC 10-8 para cadena y cabo, cadena de 8 mm (5/16"), cabo de 16 mm (5/8"), 12V, con barbotén
Brand: Maxwell
SKU: MAX/HRC10812V
Price: 4265.85 USD
Availability: InStock

SKU: MAX/HRC10812V

$4,265⁸⁵

Same-Day Shipping Checking cutoff…

Descripción

Molinete horizontal HRC 10-8 para cadena de 5/16", cabo de 5/8", 12V, con cabrestante

Diseñados para embarcaciones de hasta 45 pies, los molinetes de la serie horizontal HRC10-8 siguen con orgullo los pasos de los exitosos cabrestantes de ancla automáticos para cabo/cadena anteriores de Maxwell.

El kit incluye

Molinete
Panel de disyuntor de encendido/apagado
Solenoide de inversión
Interruptor de panel de subida/bajada
Manivela de liberación de embrague

Características

Especificaciones

Este producto no puede devolverse al punto de compra original. Póngase en contacto directamente con el fabricante en caso de problemas o dudas.

Specifications

Identification

MPN	HRC10812V
Barcode	1000000002683

Physical

The HRC10-8 is Maxwell's fully automatic rope/ chain or all chain horizontal windlassDesigned to effortlessly retrieve and deploy 8mm (5/16" ) chain and 16mm (5/8" ) three strand or 8-brait (plait) rope.The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16" or 8 mm marine grade chain spliced to 5/8" rope.The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deckCase Material

Anodized AluminumThe two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.This two piece watertight case allows for quick and easy, on-deck,routine maintenance.Simple " bolt down" installation ensures effortless and rapid on-deck installation and set up.The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.The unique Maxwell " wrap around" horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.High quality Stainless Steel chainwheelsThe HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker.Cone type clutch/brake mechanism permits manual, "free fall" anchoring and emergency crank recovery of the rode and anchor if required.The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.Exclusive Maxwell 3 YEAR Limited Warranty

Certifications & Protection

Maximum PUll	1540 lbsChain Short Link: 5/16" or 8mmChain Speed (Anchor Retrieval): 79 ft per MinuteRope Speed (Anchor Retrieval): 65 ft per MinuteRope Size (Nylon 3 strand or 8 Plait): 5/8"Power Supply (DC): 12VDCMotor Power: 1000 WattsNet weight: 42 lbs
