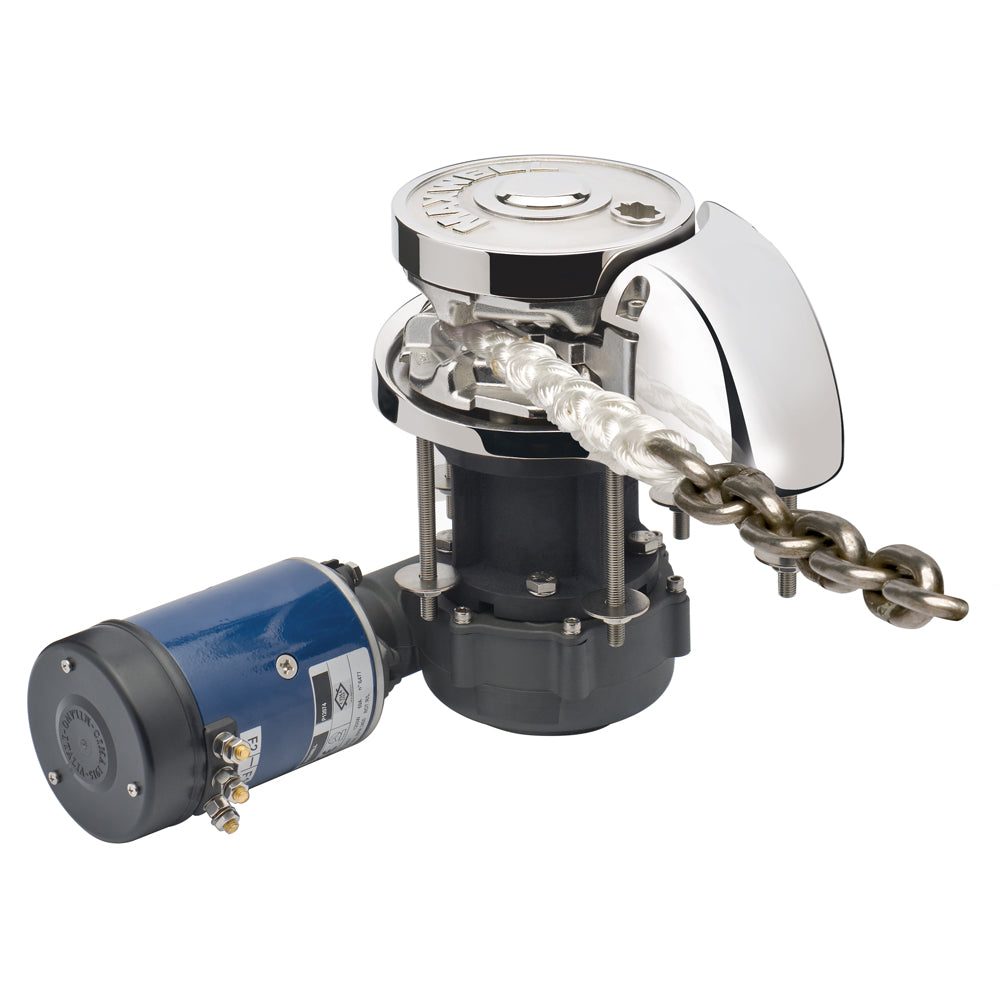

Molinete vertical Maxwell RC 12-12, cadena de 1/2", cabo de 3/4", 12V

Name: Molinete vertical Maxwell RC 12-12, cadena de 1/2", cabo de 3/4", 12V
Brand: Maxwell
SKU: MAX/RC121212V
Price: 5090.00 USD
Availability: InStock

SKU: MAX/RC121212V

$5,090⁰⁰ $6,362⁵⁰

Descripción

Molinete vertical RC 12-12, cadena de 1/2", cabo de 3/4", 12 V

El paquete incluye

Molinete
Panel de disyuntor de encendido/apagado
Solenoide inversor
Interruptor de panel de subida/bajada
Manivela

La serie RC12 incorpora la innovación más reciente y elegante de Maxwell en tecnología automática de cabo/cadena. Al conservar el estilo clásico de diseño abierto más apropiado para embarcaciones de mayor tamaño, la serie RC12 representa la siguiente generación en la evolución de los molinetes de cabo/cadena en todos los aspectos.

Maxwell lidera una vez más el mercado con su pensamiento innovador gracias a la introducción de su última rueda de cadena Wave Design. Esta rueda patentada de cabo/cadena incorpora dos conceptos de diseño únicos que mejoran enormemente el manejo y el control del cabo/cadena empalmados. Las nervaduras exteriores de la rueda de cadena tienen una ligera inclinación hacia adelante, lo que garantiza que el cabo y la cadena se guíen suavemente en la rueda durante la recuperación del ancla.

Características

La innovadora caja de engranajes negra de aluminio anodizado duro, diseñada por Maxwell, ofrece numerosas ventajas

Especificaciones

Este producto no puede devolverse al punto de compra original. Póngase en contacto directamente con el fabricante en caso de tener cualquier problema o duda.

Specifications

Identification

MPN	RC121212V

Physical

The RC12-12 fully automatic windlass series is designed to effortlessly retrieve and deploy 12 - 13 mm (1/2") short link chain and 20 mm (5/8") three strand or 8-Plait rope.Stainless steel AISI 316.A sleek, Low Profile version and a fluted stainless steel (AISI 316) capstan drum version, are available.The RC12 is packed with patented innovative features combined with Maxwell's traditionally classic aesthetics, but reflecting the modern "form follows function" of the highly successful RC6, RC8 and RC10 series windlasses.With a maximum pull of 1590 kg (3500 lb), and an anchor retrieval rate of 15 m/min (50ft/min), the RC12-12 is one of the fastest and gruntiest windlasses in its class.The elegantly designed deckplate and chainpipe cover are manufactured in polished marine-grade (AISI 316) stainless steel, as are the heavy duty pressure arm, stripper, chainwheel and fluted capstan drum.The huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.Double cone-type brake/clutch mechanism permits 'Free Fall' anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement, ensuring safe and precise operator control.The RC12 features Maxwell's revolutionary and patented new Wave DesignT chainwheel.Emergency manual retrieval is made simple and easy with Maxwell's unique "Active Latch Ratchet System" operation that prevents backwind of the windlass during manual hauling of the anchor.Every Maxwell RC12 automatic rope/chain windlass comes with top works, motor/gear box and dual direction solenoid. Switches and circuit breaker are available and need to be ordered separately.Activation of the ratcheted mechanism lever ensures the windlass cannot backwindduring emergency (manual) retrieval of the rode (rope and/or chain) and anchor.Important

Maxwell windlasses must be used in conjunction with a chain stopper and/or alternative snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.Every Maxwell automatic rope/chain windlass is available with all the necessary components for fully automatic dual direction control in a competitively priced package.

Fast and easy windlass installation. More corrosion resistant. Easy to maintain and service. Takes up less room in the anchor locker. 100

1 ratio, single stage design with less moving parts, for smoother and quieter operation. Allows for multi-positioning of the gearbox/motor.

Electrical

Voltage	12VMotor: 1200 WattsMaximum Pull/lift: 3500 lbsStatic Hold: 4840 lbsChain Short Link: 1/2"Rope Size: 3/4"Net weight: 64 lbsChain Speed: 50 ft/minRope Speed: 43 ft/min
