Raymarine | SKU: RAY/E70430 | Barcode: 723193816639

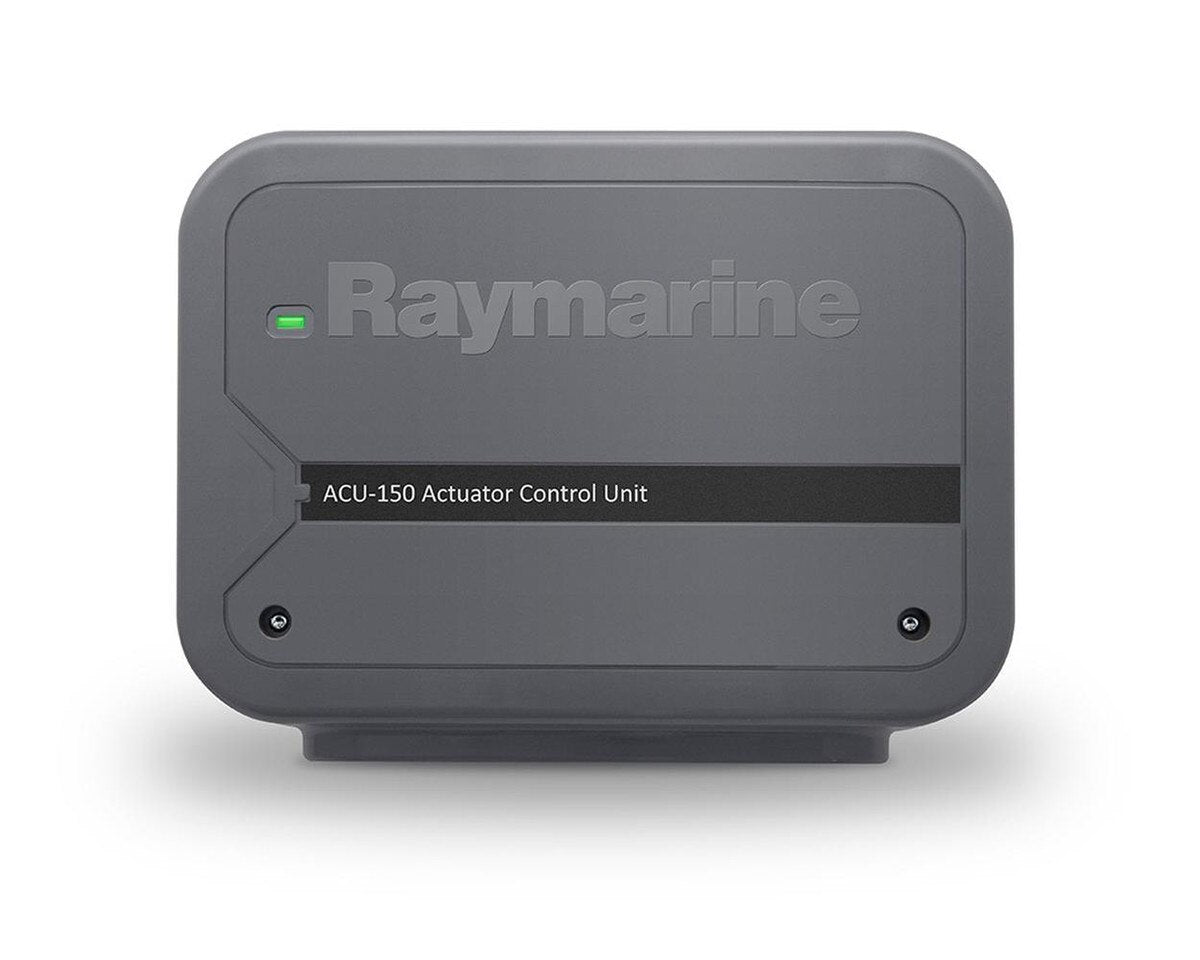

ACU-150

Name: ACU-150
Brand: Raymarine
SKU: RAY/E70430
Price: 899.99 USD
Availability: InStock

Type 1 Hydraulic Actuator Control Unit

$899⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The ACU-150 (Actuator Control Unit) is a key component for Evolution autopilots used on vessels with hydraulic steering. The ACU-150 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Pair the ACU-150 with a Type 1 12-volt hydraulic drive unit. The ACU-150 and Type 1 hydraulic pump combination is designed for hydraulic steering systems with a steering ram capacity between 4.9 cu. in.( 80cc) and 14.0 cu in (230cc). Combine with an EV-1 sensor, autopilot control head, and Type 1 hydraulic pump for a complete autopilot system.

Specifications

Product Series

Evolution
MPN

E70430
Physical

Dimensions:
H: 5.5" (140 mm)
W: 7.1" (180 mm)
D: 2.0" (52 mm)
Weight: 1.32 lbs (0.6 kg)
Power

Input: 10.8-15.6v DC
Standby Draw: 300 mA @ 12v

Drive Output: 12 A Continuous
Connectivity

SeaTalkNG
IP Rating

IPx2
Temp Range

-20 °C to +55 °C (-4 °F to 131 °F)

Reviews (0)

In The Box

In The Box:

ACU Unit
Hardware
SeaTalkNG Spur Cable (1m)
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Raymarine

EV1

High Accuracy Heading Sensor

E70096

Very low stock (1)

$899⁹⁹

Raymarine

P70RS

Autopilot Controller w/ Rotary Knob

E70329

In stock (3)

$749⁹⁹

Raymarine

P70S

Autopilot Controller

E70328

In stock (3)

$749⁹⁹

Raymarine

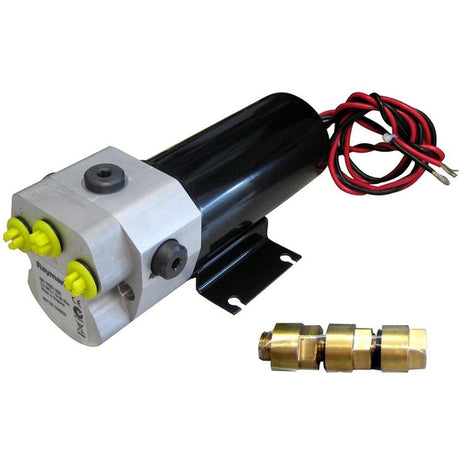

Type 1 Pump (12v)
