Garmin GC™ 245 Surface Mount Camera - Black
Description
Description

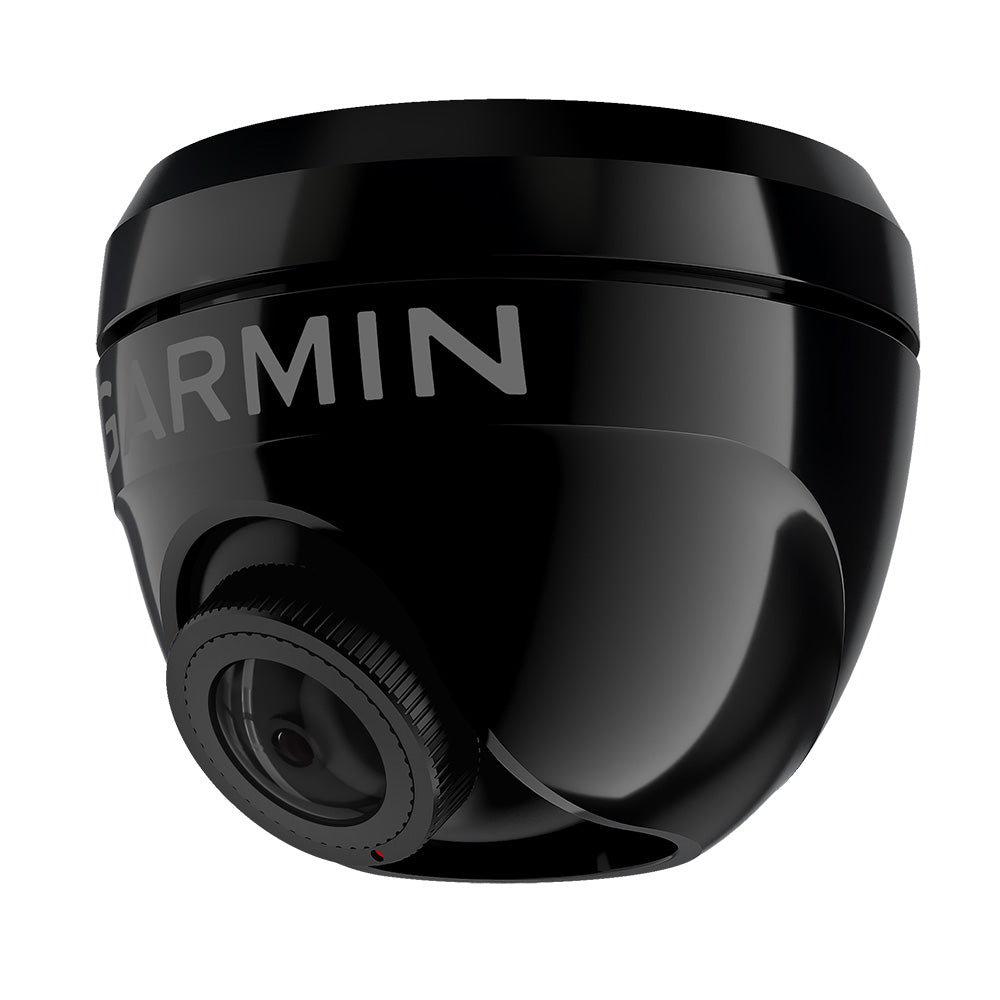

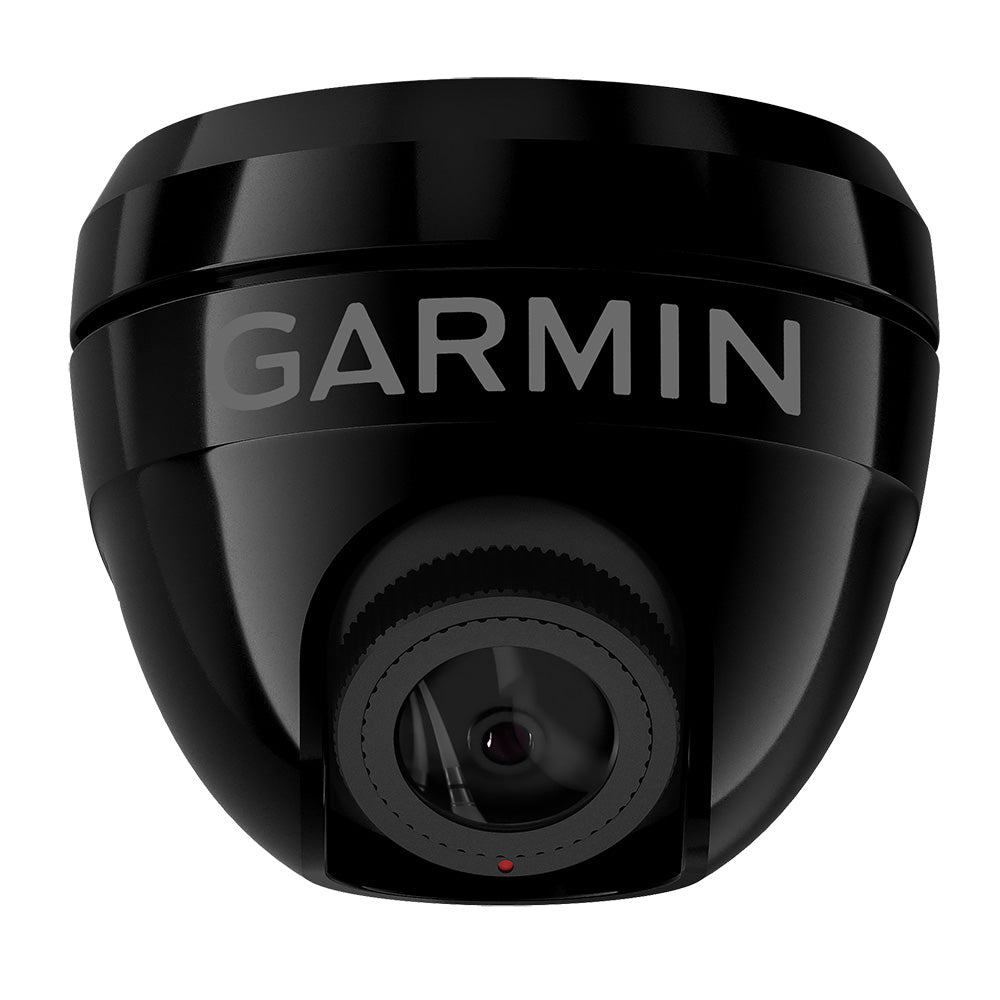

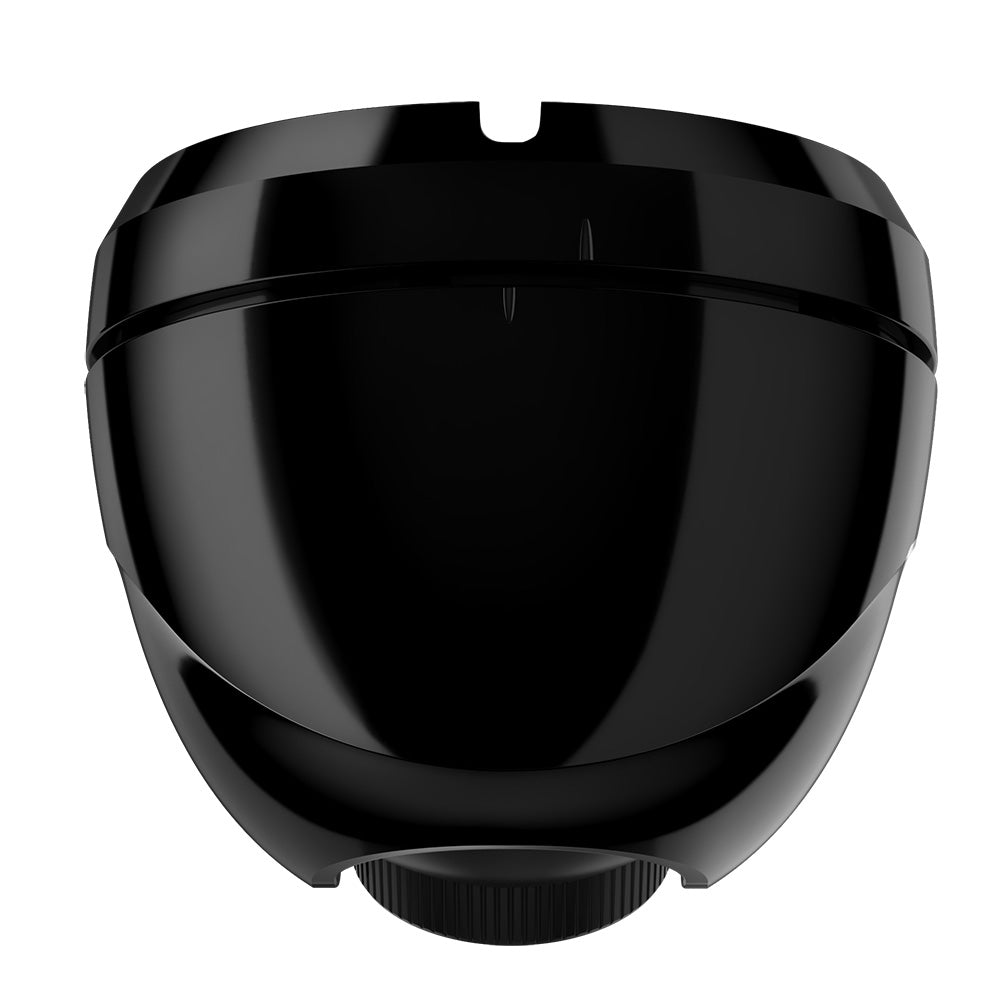

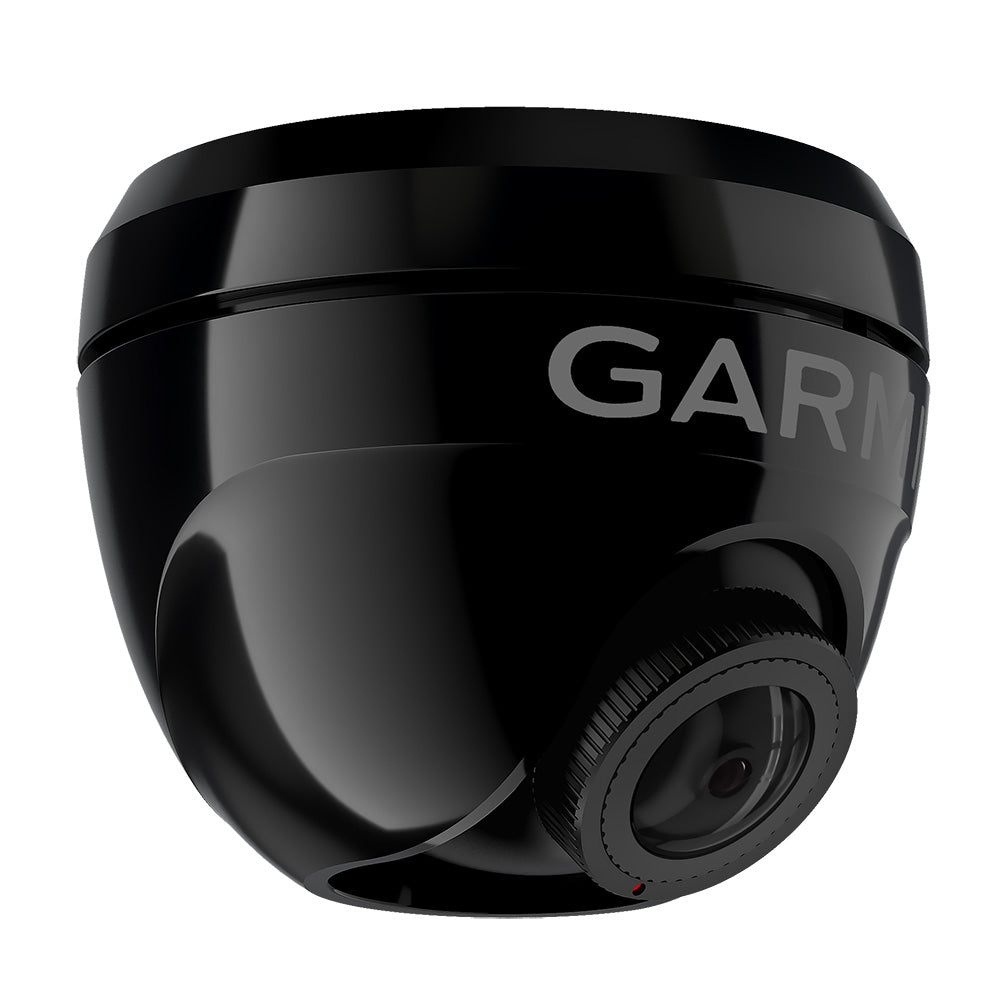

GC™ 245 Surface Mount Camera - Black
BRING VISION TO YOUR HELM
Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.
- Distance markers specific to your boat1 and user defined guidance lines
- 1080p high-resolution output2
- See camera feeds in fisheye or standard view; birdseye view also available1
- Full integration on the Garmin marine network or Garmin Bluenet™ network
Guidance Lines
Set up your own guidance lines for more confidence avoiding obstacles in the marina.
Distance Markers
Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects
Two Mounting Options
Installation is simple, and the camera can be mounted with the dome up or down.
Three Camera Views
Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view1.
Multiple Camera Feeds
See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.
See What You Want
Take a closer look with digital zoom, or get a different perspective with digital pan.
Specifications
Specifications
Identification
| MPN | 010-02892-11 |
|---|---|
| Barcode | 753759336547 |
Physical
| Unit dimensions | 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm) |
|---|---|
| Weight | 3.25 oz (92 g) |
| Versatile mounting options | yes (ball-up or ball-down) |
| Rugged housing | yes |
Electrical
| Hardwire power | 12V/24V |
|---|---|
| Operating current | 300 mA at 12VDC; 200 mA at 24VDC |
| Power consumption | 4.5 W |
General
| Connection to chartplotter | IP |
|---|---|
| Setup | plug-and-play |
| Water rating | IPX7 |
| Video resolution | 1920 x 1080 pixels2 |
| Video output | H.264 over GMN and BlueNet™ |
| Images | Standard and reverse |
| Selectable views | FishEye, standard, BirdsEye (OEM calibrated) |
| Augmented reality features | Distance markers (OEM calibrated) and guidance lines (user setup) |
| Viewing angle (H/V) | 160°H/90°V |
| Operating temperature | -20°C to +60°C |
| Scanning system | progressive scan |
| Day/night operation | RGB mode full-time |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
