Garmin | SKU: GAR/010-02843-00 | Barcode: 753759320737

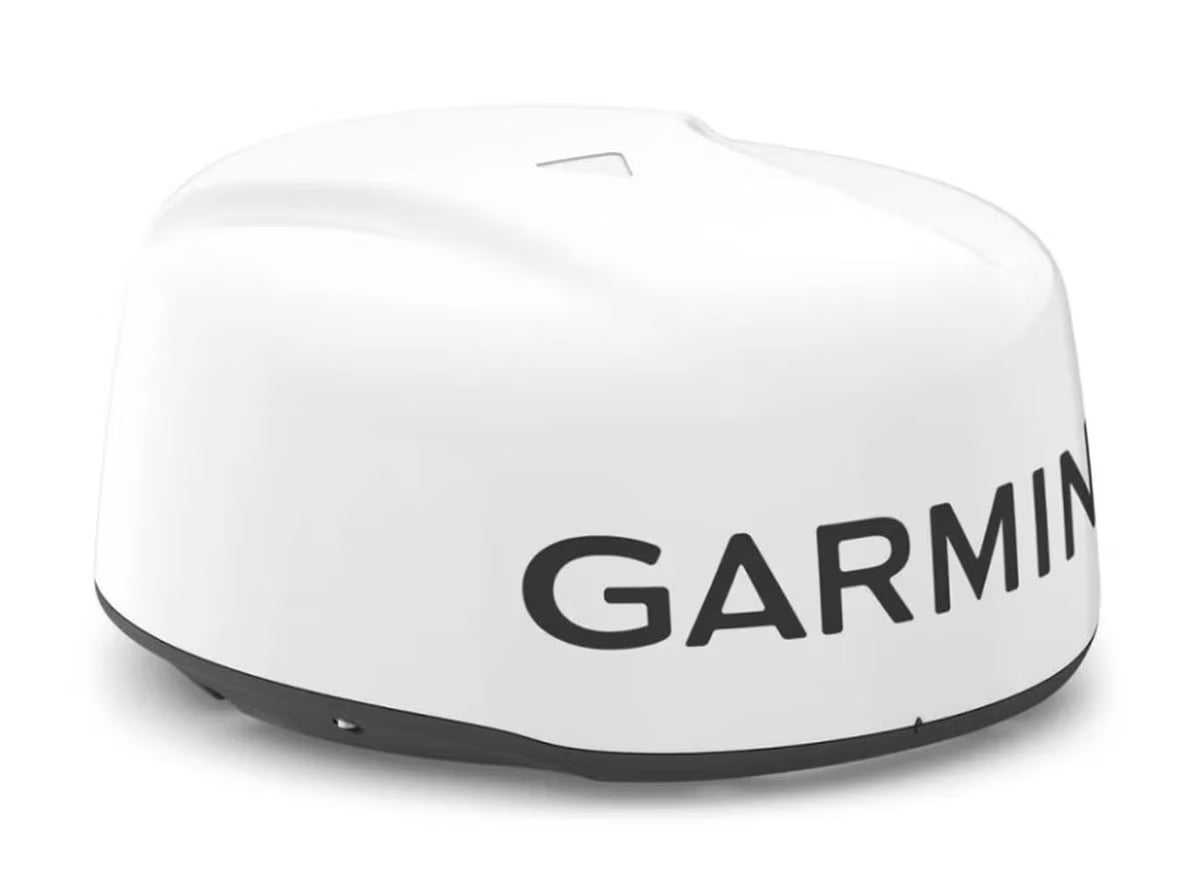

GMR18 HD3

Name: GMR18 HD3
Brand: Garmin
SKU: GAR/010-02843-00
Price: 1799.99 USD
Availability: InStock

White 18" Dome Radar

$1,799⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

This compact 18” dome radar combines ease of use with powerful scanning features that work to maximize your confidence and situational awareness on the water.

18 in magnetron dome radar features improved target detection on your compatible Garmin chartplotter/MFD
Dual radar support allows each of your compatible chartplotters on your boat to pull data from one of two different radar sources to provide redundancy
Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
Dynamic Sea Filter automatically adjusts sea clutter based on sea conditions
MARPA technology tracks selected targets

Specifications

Product Series

HD3
MPN

010-02843-00
Physical

Dimension: 20" diameter, 9.8" high (508 mm diameter, 248 mm high)
Weight: 15.4 lb (7.0 kg)
Power

Input: 11-32v DC
Standby Draw: 15 W
Typical Draw: 40 W
Radar

Type: Radome
Technology: Magnetron
Power Output: 4 kW
Beam Width: 5.2° horizontal, 25° vertical
Max Range: 36 nm
Min Range: 20 meters
RPM: 24
Modes:
IP Rating

IPx7

Reviews (0)

In The Box

In The Box:

GMR 18 HD3 dome radar
Power cable (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Mounting hardware kit and template
Installation instructions

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

Garmin Marine Warranty

* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Garmin

BlueNet Network to Marine Network

BlueNet Male To Marine Network Female Adaptor Cable

010-12531-11

In stock (25)

$34⁹⁹

Garmin

BlueNet to Marine Network Adaptor Cable - Right Angle

Right Angle BlueNet Male to Marine Network Female

010-13094-00

(1)

In stock (7)

$39⁹⁹

Garmin

GPS 24xd GPS/Heading Sensor - NMEA 2000

White High Accuracy GPS Antenna w/ Heading - NMEA 2000 Connection

010-02316-10

(1)

In stock (10)

$314⁹⁹

Garmin

GPS 24xd GPS/Heading Sensor - NMEA 2000

Black High Accuracy GPS Antenna w/ Heading - NMEA 2000 Connection

010-02316-20

In stock (10)

$364⁹⁹

Garmin

Radar Power Cable - xHD3/Fantom Dome

Power Cable For xHD3/Fantom Dome Radar

010-12067-00

In stock (6)

$53⁹⁹

Garmin

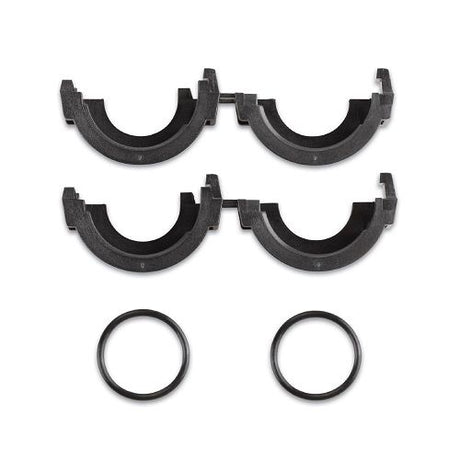

Split Collar - 18mm
