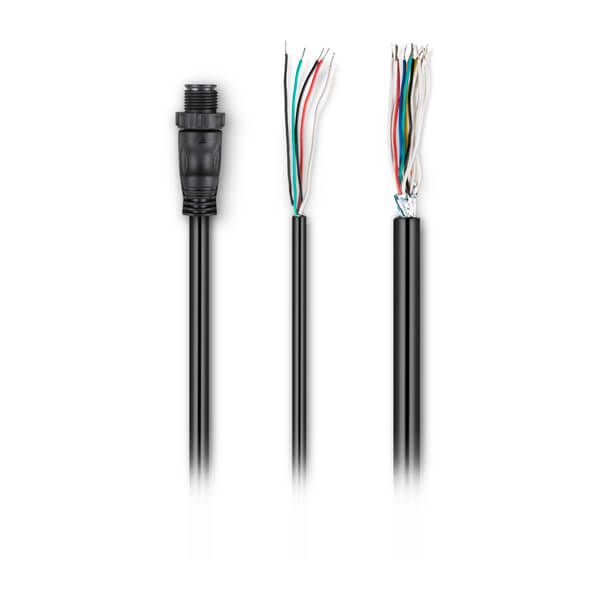

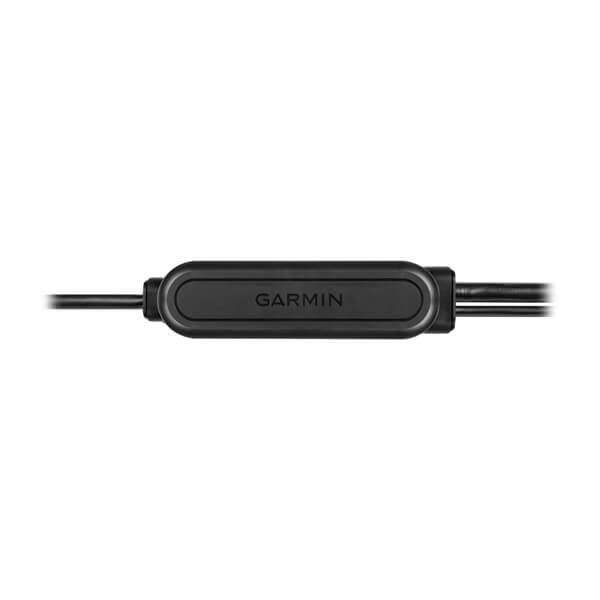

GNA10

Use the Garmin GNA 10 to connect a jog lever to our Reactor 40 autopilots* on displacement hull boats. A jog lever is a rugged and simple steering control for work boats or trawlers. Adjust heading hold with the jog lever by pressing it right or left, or put the autopilot into the new Power Steering mode to move the rudder without autopilot guidance. The GNA 10 can also optionally connect to a button and LED light to allow switching between heading hold and standby**. Garmin does not supply the jog lever, button or LED light.

* The GNA 10 requires both a compatible Garmin autopilot and Garmin display

** The GNA 10 can also be used to interface a Reactor 40 autopilot with Jastram digital steering controls

The GNA 10 with jog lever is designed only for use on displacement hull power boats. It is not compatible with planing hull boats or sailboats.

Supported Jog Levers

• Kobelt 7170
• Jastram JO100/JO300
• Simrad S35 (has built in button and LED status which is supported)
• The GNA 10 does not support two speed jog levers with two sets of switches

Supported Button Types

• DPST OFF-MOM (no diode needed for installation) or
• SPST (requires diode for installation)
• Max current of 5mA and a max voltage of 12V

Supported LED Types

• LED lights with current draw of 20mA or less
