GNA10
Jog Lever Adaptor
Need This Product Installed?
Need This Product Installed?
We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL
GNA10
Descripción
Descripción

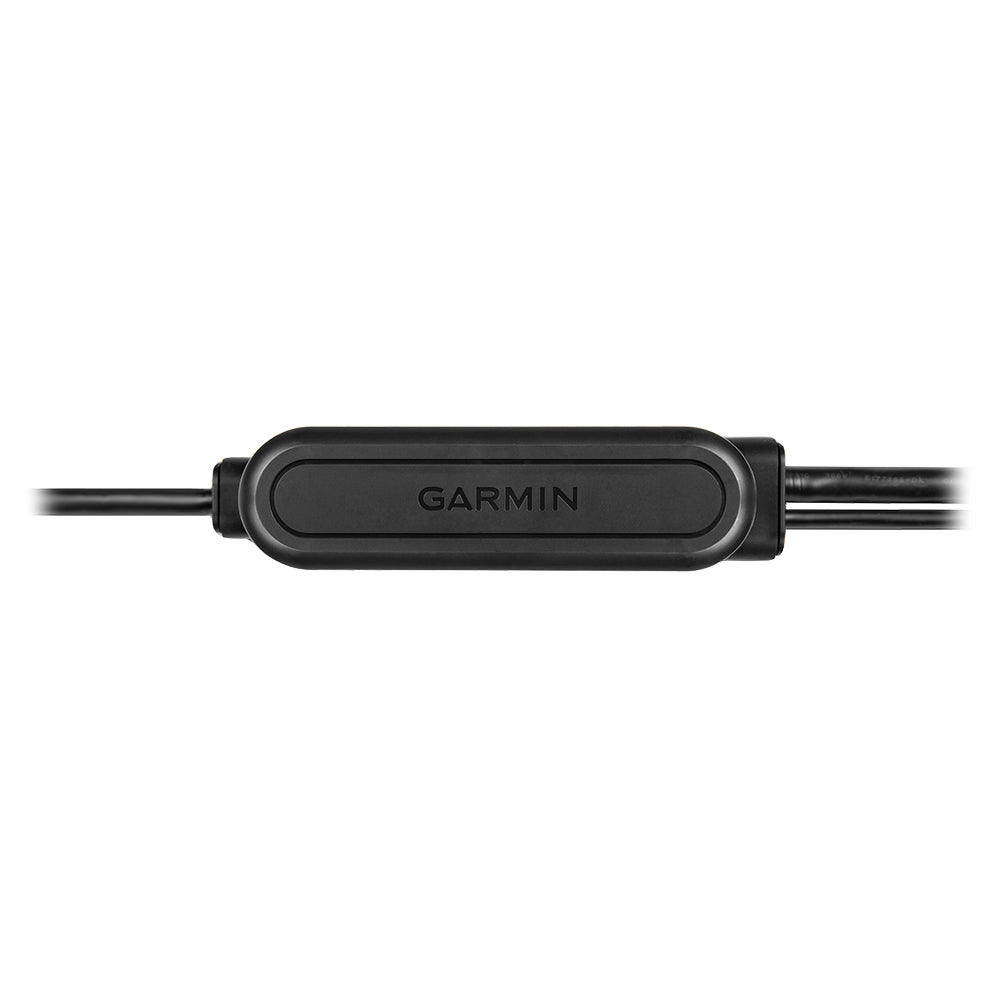

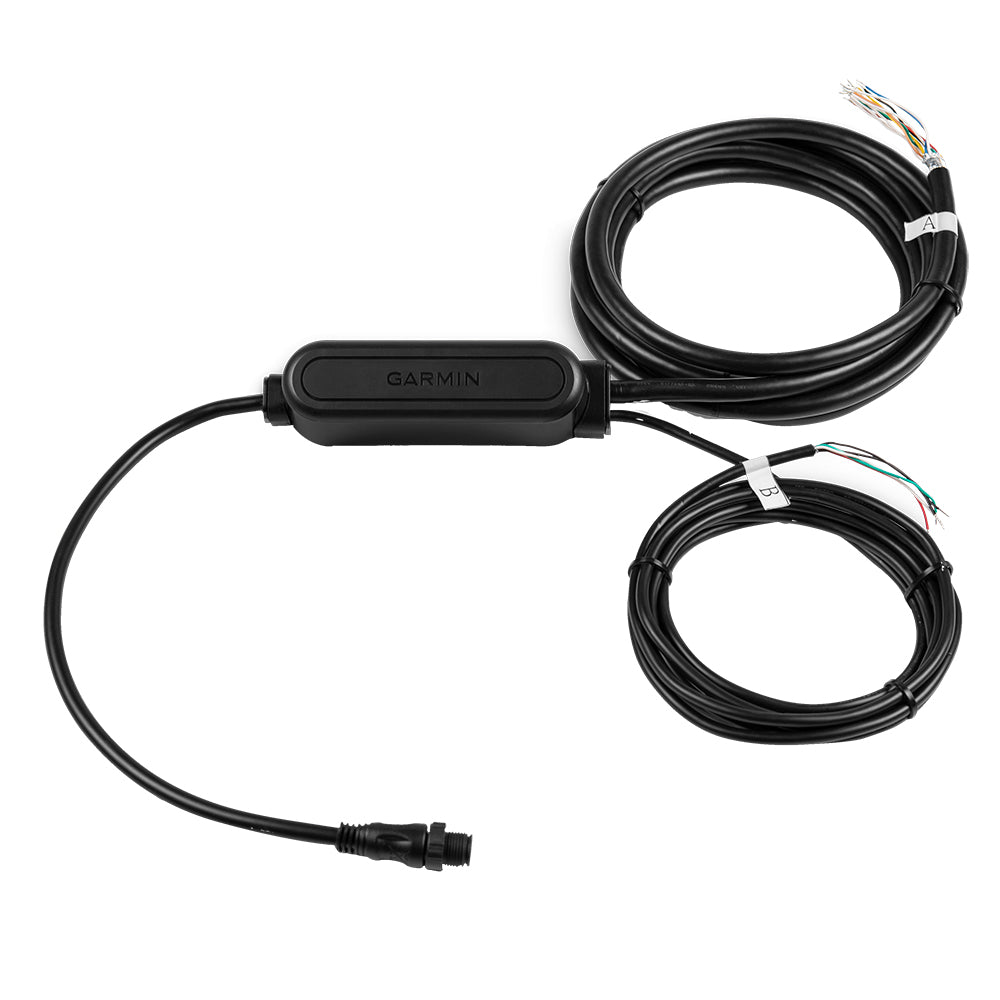

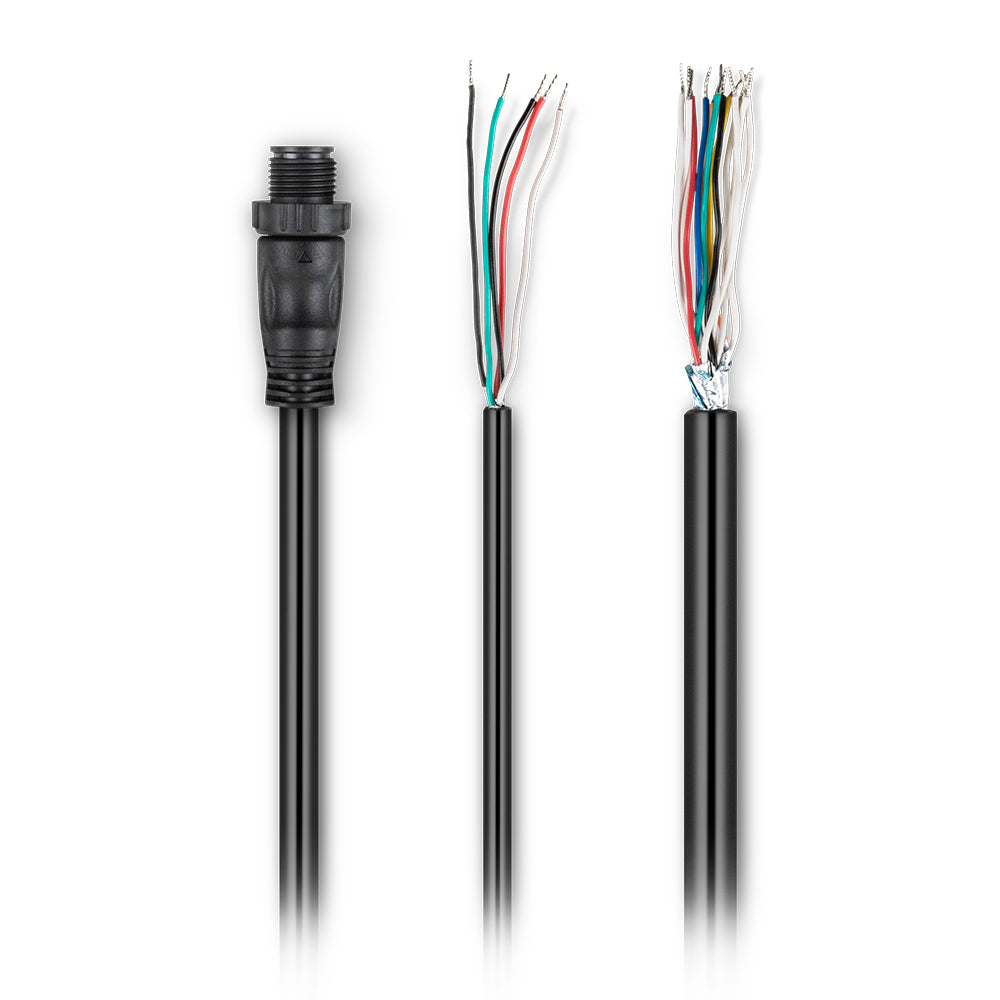

Use the Garmin GNA 10 to connect a jog lever to our Reactor 40 autopilots* on displacement hull boats. A jog lever is a rugged and simple steering control for work boats or trawlers. Adjust heading hold with the jog lever by pressing it right or left, or put the autopilot into the new Power Steering mode to move the rudder without autopilot guidance. The GNA 10 can also optionally connect to a button and LED light to allow switching between heading hold and standby**. Garmin does not supply the jog lever, button or LED light.
* The GNA 10 requires both a compatible Garmin autopilot and Garmin display
** The GNA 10 can also be used to interface a Reactor 40 autopilot with Jastram digital steering controls
The GNA 10 with jog lever is designed only for use on displacement hull power boats. It is not compatible with planing hull boats or sailboats.
Supported Jog Levers
- Kobelt 7170
- Jastram JO100/JO300
- Simrad S35 (has built in button and LED status which is supported)
- The GNA 10 does not support two speed jog levers with two sets of switches
Supported Button Types
- DPST OFF-MOM (no diode needed for installation) or
- SPST (requires diode for installation)
- Max current of 5mA and a max voltage of 12V
Supported LED Types
- LED lights with current draw of 20mA or less
Especificaciones
Especificaciones
-
MPN
-
Power
-
Connectivity
-
Other
-
Cable Length (Ft)
-
IP Rating
-
Temp Range
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Support/Warranty
Support/Warranty
Product Support:
Subscription Information:
Release Date:
Warranty: 2yr
Garmin Marine Warranty
* ALL WARRANTY IS THROUGH MANUFACTURE *
