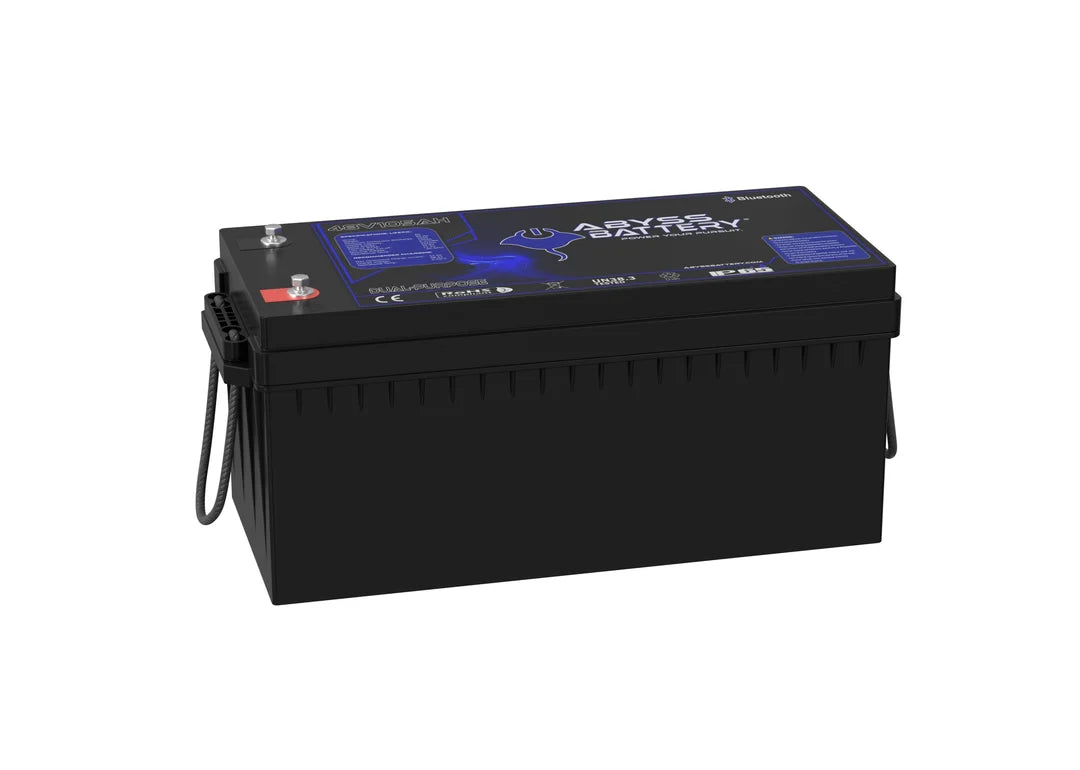

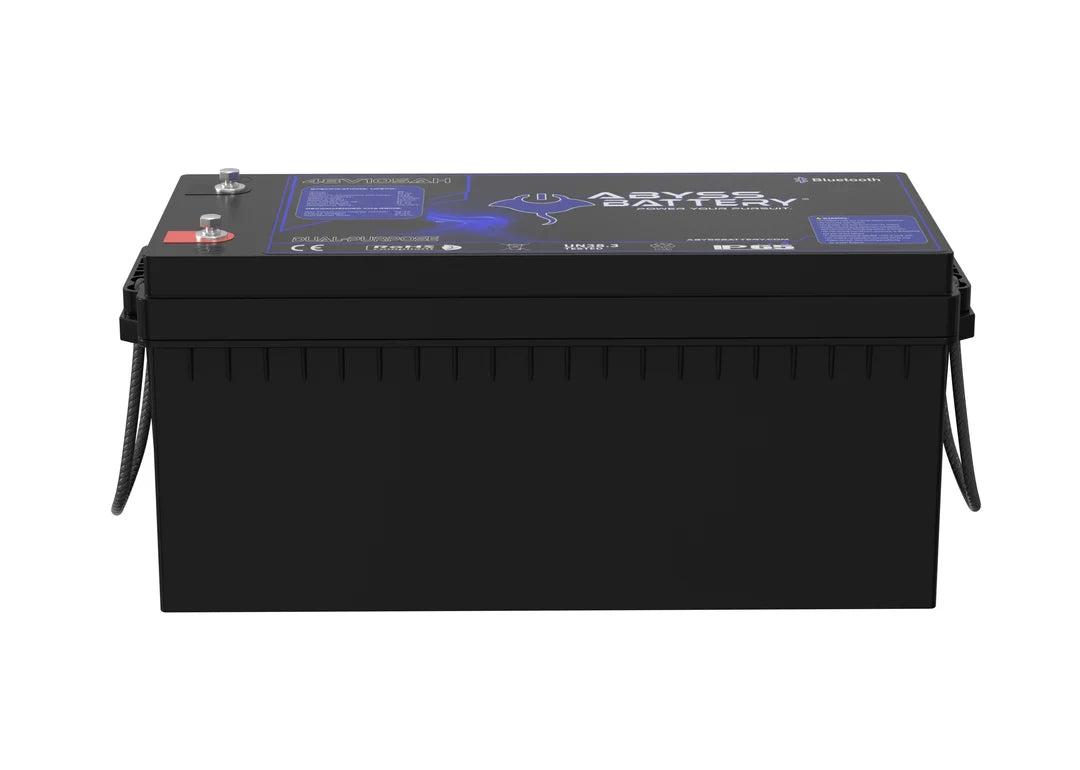

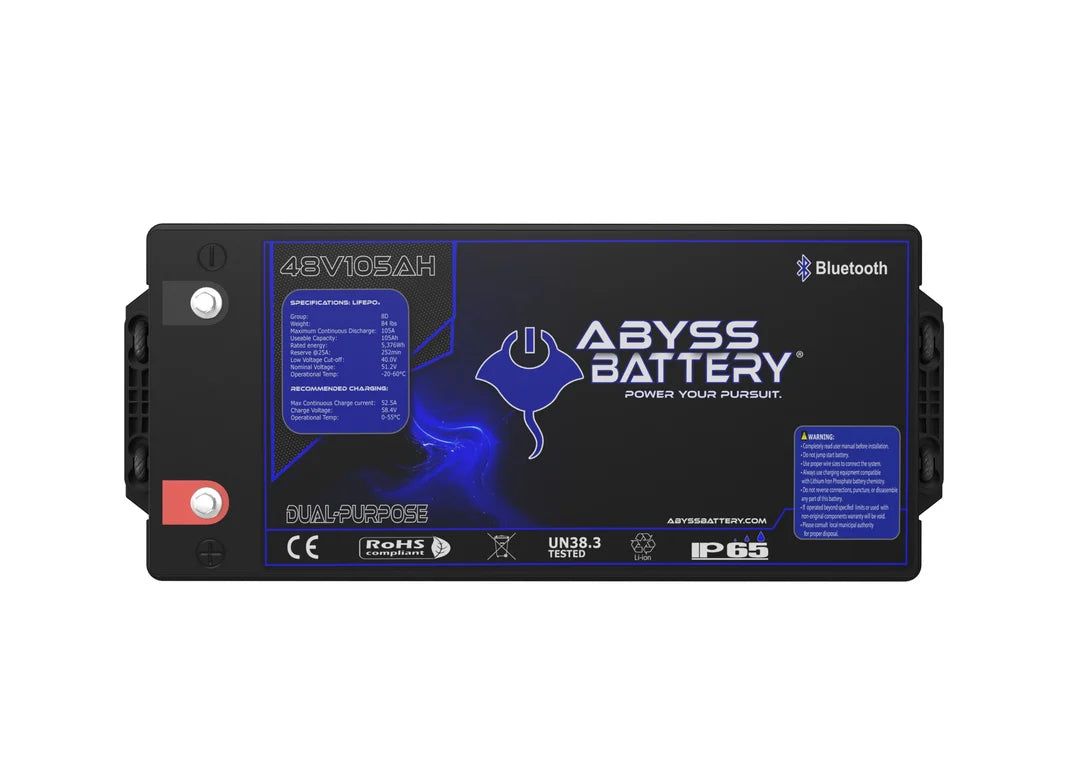

Abyss Battery 48v 105ah LifePO4 Lithium Golf Cart Battery

Name: Abyss Battery 48v 105ah LifePO4 Lithium Golf Cart Battery
Brand: Abyss Battery
SKU: ABY/AB-48V105-BT
Price: 2999.95 USD
Availability: InStock

SKU: ABY/AB-48V105-BT

$2,999⁹⁵

Descripción

The ABYSS® 48V 105Ah Deep Cycle Lithium Battery is Built for demanding applications where reliability, runtime, and performance matter most, the ABYSS® 48V 105Ah Deep Cycle Lithium Battery delivers premium power in a rugged Group 8D form factor.

Engineered with advanced Lithium Iron Phosphate (LiFePO4) chemistry, this battery provides exceptional cycle life, consistent voltage output, and significantly reduced weight compared to traditional AGM and lead-acid batteries. Whether you’re powering a 48V trolling motor, electric outboard, golf cart, utility vehicle, marine electrical system, or industrial equipment, the ABYSS® 48V 105Ah is designed to perform when it matters most.

With 5.37kWh of usable energy, this battery delivers extended runtime and dependable power for all-day operation. Its flat discharge curve ensures equipment receives stable voltage throughout the discharge cycle, resulting in improved performance and greater efficiency.

Designed as a direct replacement for traditional 48V battery systems, installation is straightforward with no complicated modifications required. Unlike lead-acid batteries, LiFePO4 technology eliminates acid leaks, minimizes maintenance requirements, and offers superior longevity.

Key Features:

• 48V 105Ah Capacity (5.37kWh)
• Premium LiFePO4 Cell Technology
• Group 8D Form Factor
• Long Cycle Life
• Maintenance-Free Operation
• Lightweight Compared to AGM and Lead Acid
• Stable Voltage Output for Maximum Performance
• Integrated Battery Management System (BMS)
• Safe and Reliable Lithium Chemistry
• Ideal for Marine, Golf Cart, Utility, and Commercial Applications

Specifications

Identification

MPN	AB-48V105-BT

48V 105Ah Battery Datasheet

Nominal Voltage	51.2V
Nominal Capacity	105Ah
Parallel Connection	Maximum 4 units
Serial Connection	No
Bluetooth Management System (BMS)	16S 200A (Available on Android/iOS)
Charge Voltage	57.6±0.8V
Standard Charge Current	20A
Fast Charge Current	100A
Max. Continuous Discharge Current	200A
Peak Discharge Current	400A (10s)
Discharge Cut-off Voltage	40V
Cycle Life	4000 cycles @ 95% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD
Self Discharge Rate	Less than 3% per month
Charge Efficiency	100% @0.2C
Discharge Efficiency	98-100% @1C
Operating Charge Temperature Range	-20°C to 55°C (-4°F to 131°F)
Operating Discharge Temperature Range	-20°C to 60°C (-4°F to 140°F)
Storage Temperature Range	0°C to 45°C (23°F to 113°F)

Physical Specifications

Dimensions	20.67" x 10.63" x 8.66" in (525×270×220mm, Group 8D)
Approximate Weight	88.01 lbs (39.92 KG)
Terminal Type	M8
Case Color/Material	Black Plastic case (ABS)
IP Rating	IP67
Cell Type	Prismatic LiFePO4 (EVE 105Ah UL Cell)
Cell Holder	Yes
