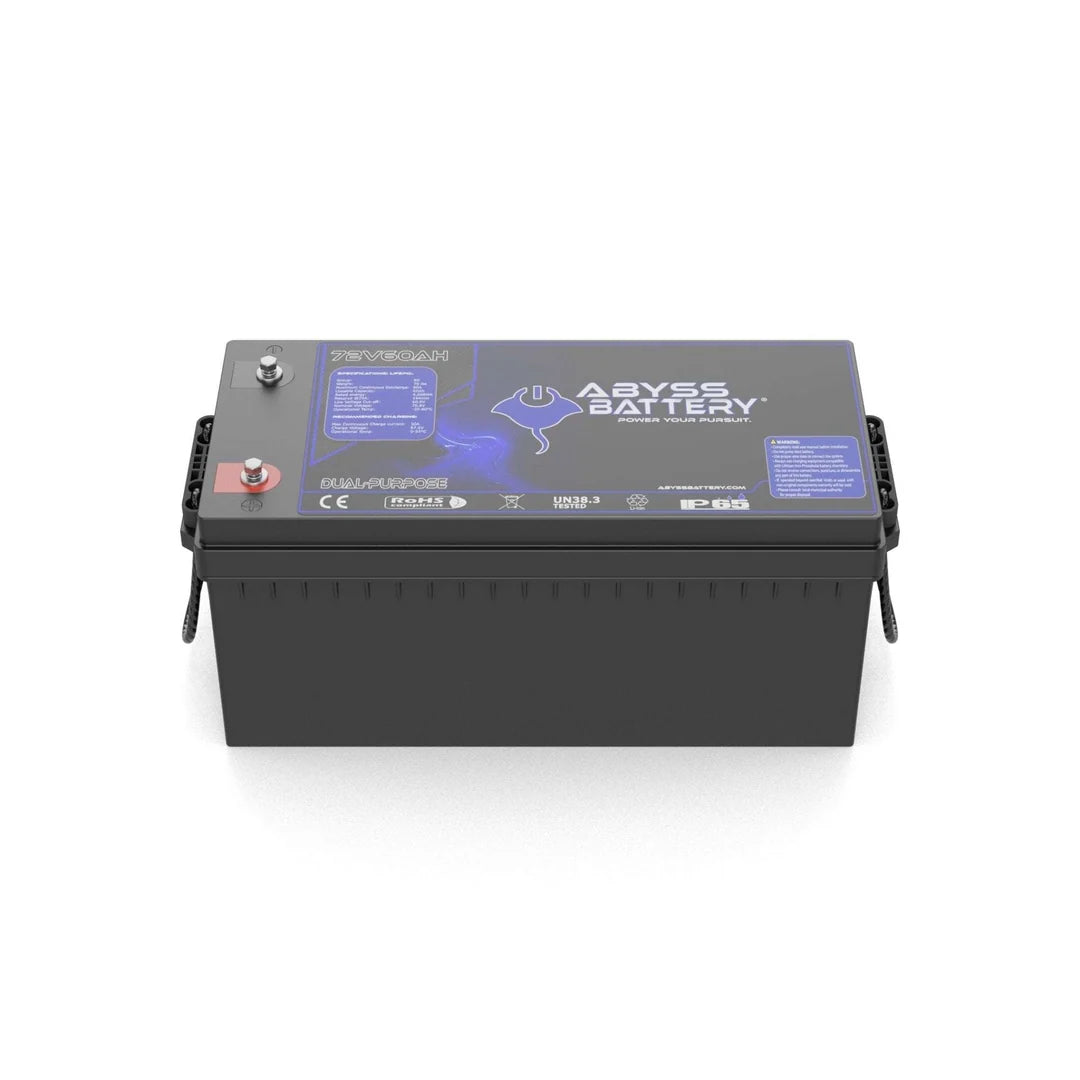

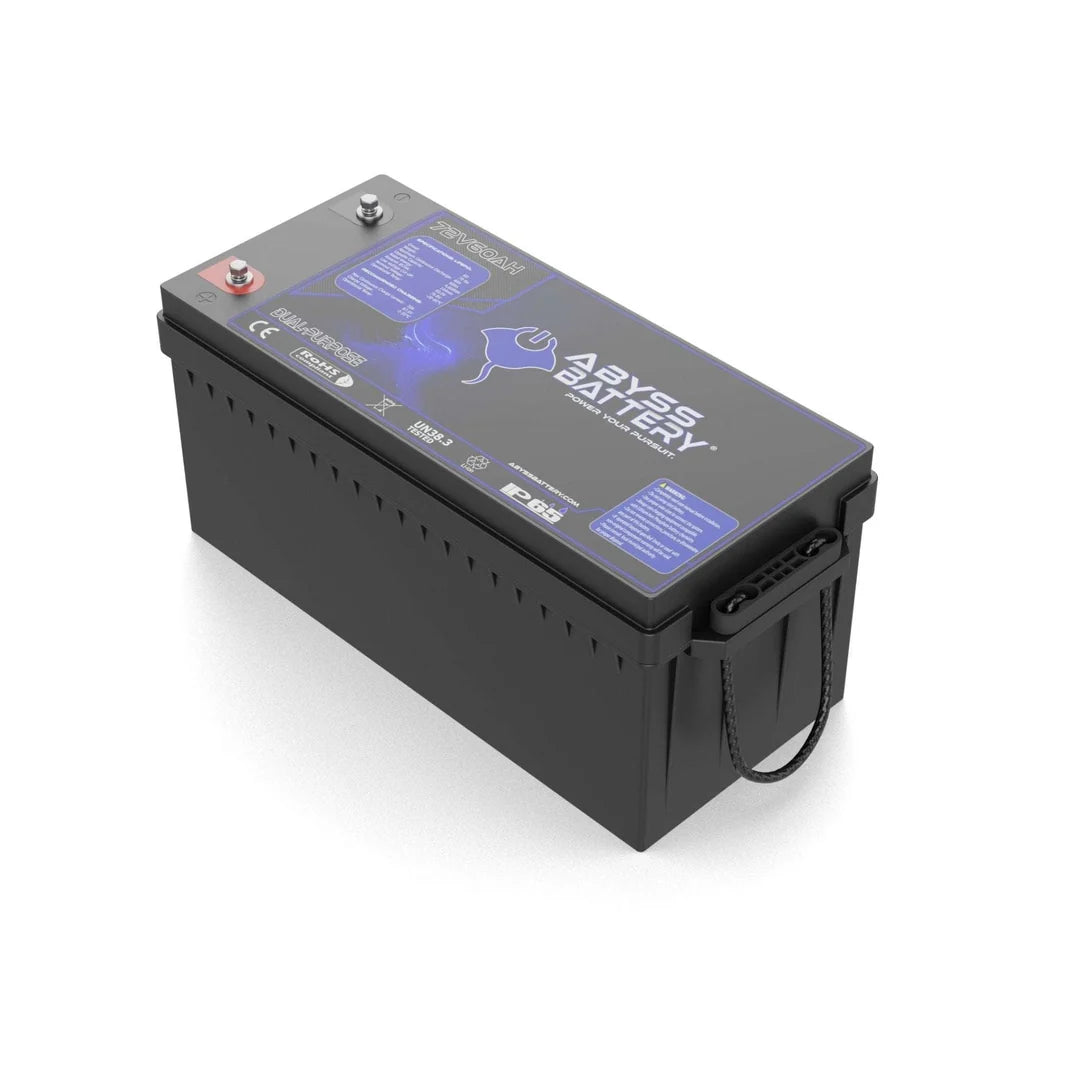

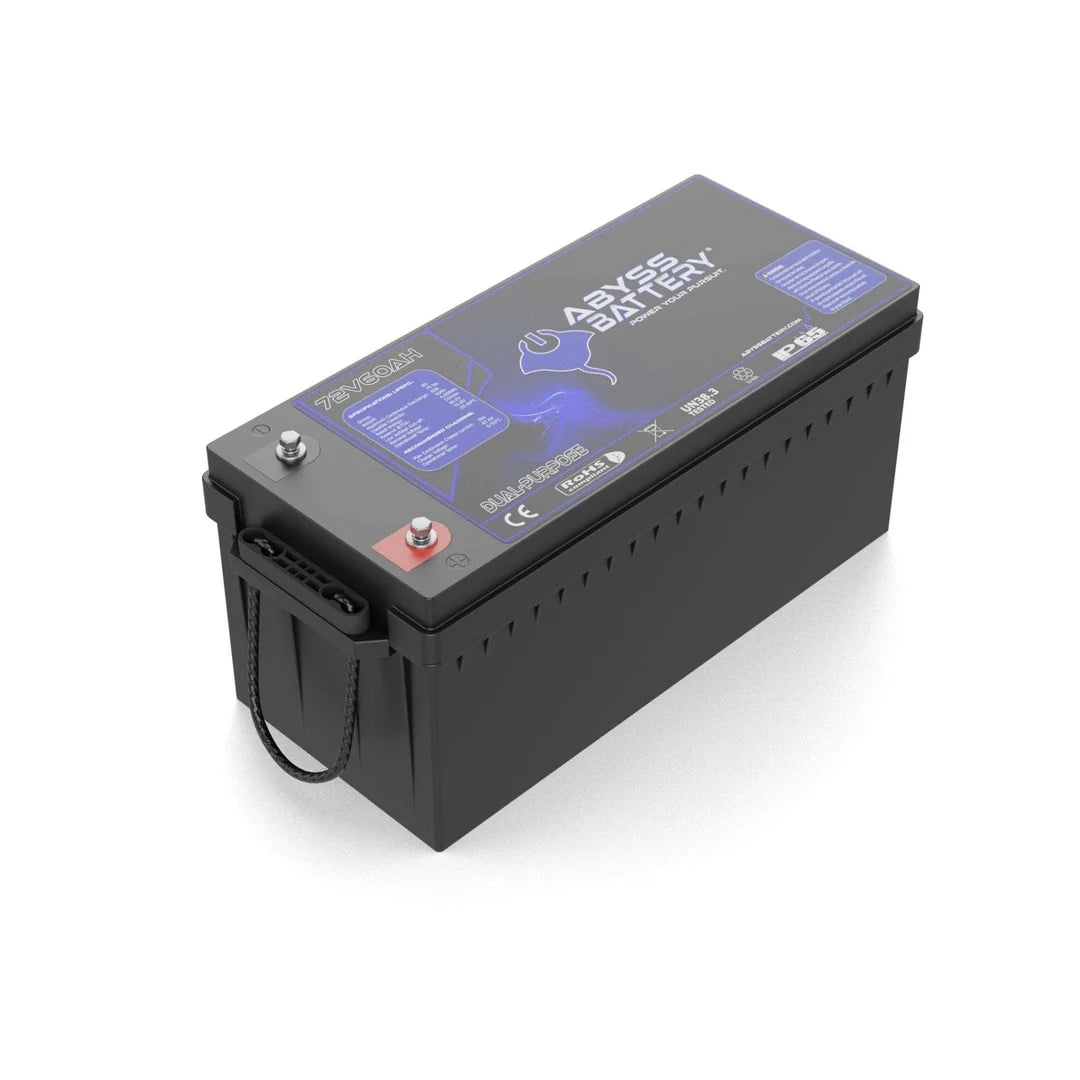

Abyss Battery 72v 60ah LifePO4 Lithium Golf Cart Battery
Descripción
Descripción
Introducing the ABYSS® 72V 60Ah Lithium Golf Cart Battery, the perfect combination of efficiency and power. With improved runtime, range and battery life, you'll be able to zoom around the course without any worries. Our Group 8D 72V Lithium Iron Phosphate golf Cart Battery is a direct drop-in replacement for standard AGM and Lead Acid Batteries so installation is simple - no need for expensive modifications!
Plus the battery is exceptionally safe, eliminating the worry of acid leakage found in traditional batteries. Now you can go further with increased confidence about safety and security. Pair this battery with our 72V 10A lithium charger for everything you need to upgrade your ride and get back out on the course! With ABYSS®, power and performance are guaranteed to make every hole an enjoyable one.
Specifications
Specifications
Identification
| MPN | AB-72V60 |
|---|
72V 60Ah Battery Datasheet
| Nominal Voltage | 76.8V |
|---|---|
| Nominal Capacity | 60Ah |
| Parallel Connection | Maximum 4 units |
| Serial Connection | No |
| Bluetooth Management System (BMS) | 24S150A (Available on Android/iOS) |
| Charge Voltage | 86.4V |
| Standard Charge Current | 12A |
| Fast Charge Current | 30A |
| Max. Continuous Discharge Current | 60A |
| Peak Discharge Current | 500A (300ms) |
| Discharge Cut-off Voltage | 60V |
| Cycle Life | 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
| Operating Charge Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
Physical Specifications
| Dimensions | 20.47" x 8.66" x 10.5" in (521×267×220mm, Group 8D) |
|---|---|
| Approximate Weight | 81.5 lbs (40 KG) |
| Terminal Type | M8 |
| Case Color/Material | Black Plastic case (ABS) |
| IP Rating | IP65 |
| Cell Type | Cylindrical LiFePO4 cell |
| Cell Holder | Yes |
Additional Information
| Features | Bluetooth connectivity for monitoring via Android and iOS devices |
|---|---|
| Certifications | UL 1642, IEC62133, IEC62619, CE, UN38.3, ROHS |
