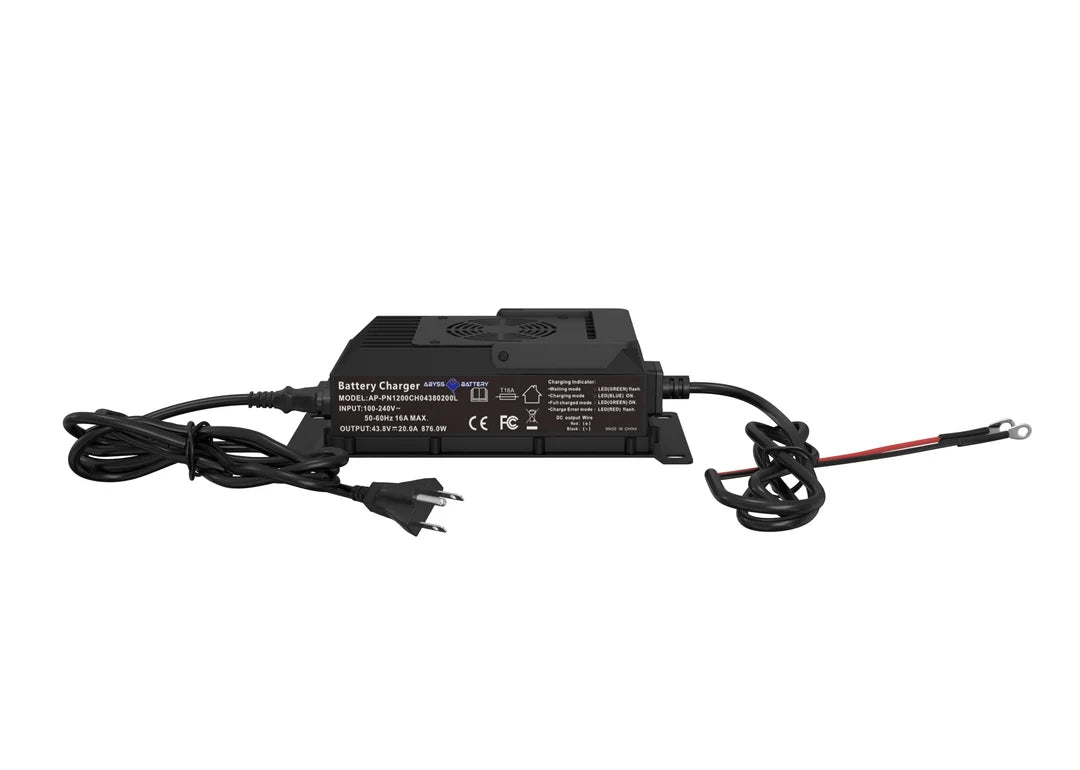

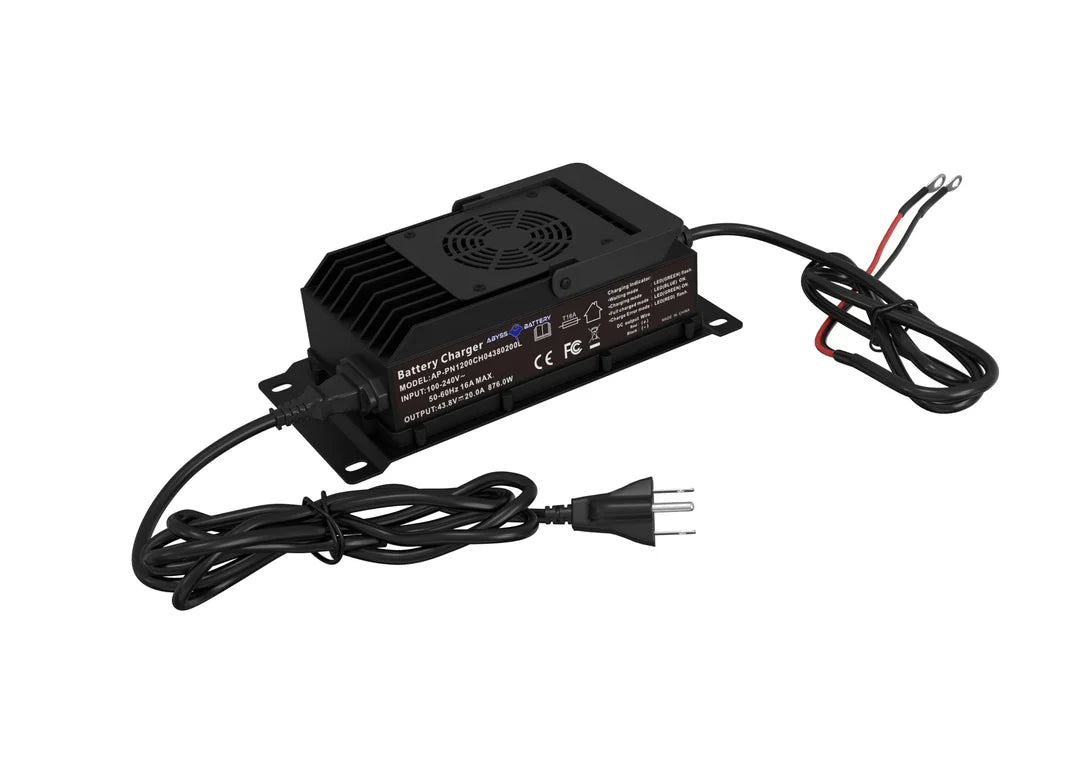

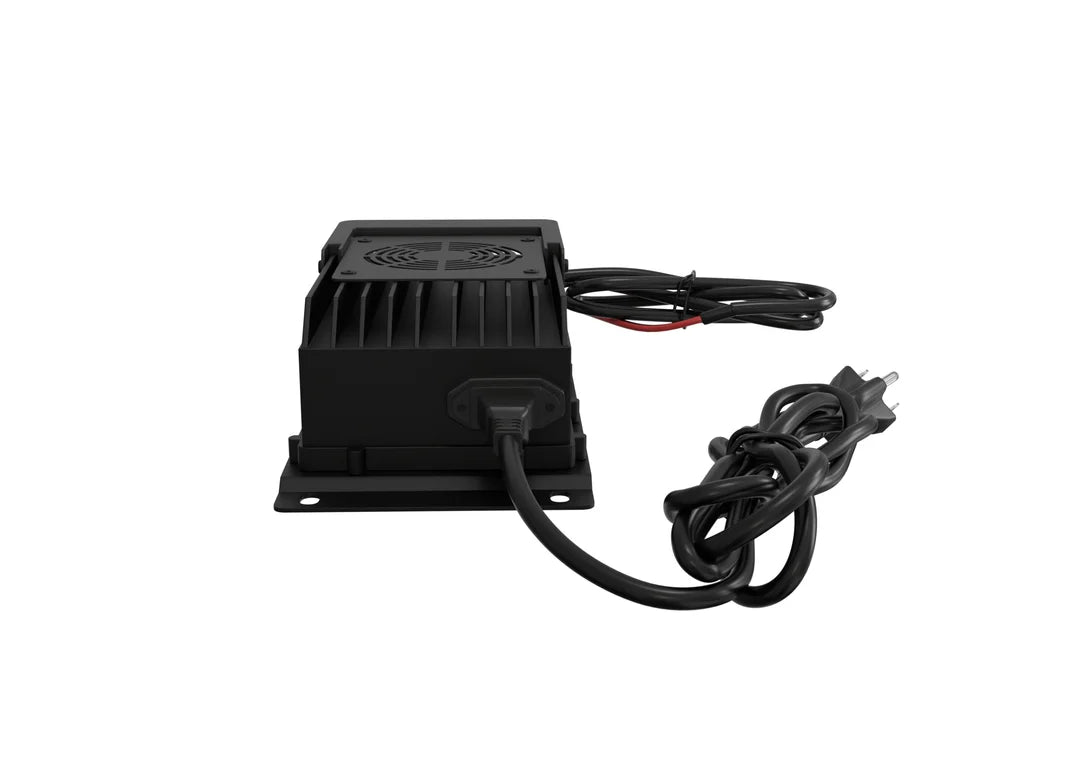

Abyss Battery 12v 40A High Precision Battery Charger
Descripción
Descripción
The Abyss Battery 12V 40-Amp On-Board Marine Charger is engineered for boaters who demand reliability in harsh marine environments. Designed with a true IP68 waterproof and corrosion-resistant enclosure, this charger is built to survive salt spray, vibration, humidity, and long days offshore—without compromising charging performance.
Delivering 40 amps of intelligent charging power, this unit is ideal for house battery systems, ensuring fast, efficient recovery between trips while protecting battery health over the long term. Advanced charging algorithms automatically adapt to your battery chemistry, making it fully compatible with Lithium (LiFePO₄), AGM, and traditional lead-acid batteries.
Smart internal safeguards continuously monitor voltage, temperature, and current, providing safe, consistent charging even in demanding conditions. Whether installed in a center console, bay boat, offshore rig, or work vessel, this charger delivers dependable power where it matters most.
Built for serious marine use. Designed for long battery life. Trusted when conditions are unforgiving.
Key Features
-
12V / 40A High-Output Charging – Fast, efficient power delivery for marine house batteries
-
IP65 Waterproof & Dustproof – Fully sealed to withstand saltwater spray, corrosion, and vibration
-
Multi-Chemistry Compatibility – Supports Lithium (LiFePO₄), AGM, and Lead-Acid batteries
-
Smart Charging Profiles – Automatically optimizes charge cycles for battery longevity
-
Marine-Grade Construction – Rugged design for offshore and inshore installations
-
Ideal for House Battery Systems – Reliable onboard charging between trips
Specifications
Specifications
Identification
| MPN | AB-CRG-12V40A |
|---|
AC INPUT
| Rated Input Voltage | 100–240 VAC |
|---|---|
| Input Voltage Range | 90–264 VAC |
| AC Input Frequency | 47–63 Hz (50/60 Hz) |
| Max Input Current | 16 A @ 100 VAC, full load |
| Power Factor (PFC) | > 0.95 |
DC OUTPUT
| Output Voltage | 14.6 V DC ± 0.3 V |
|---|---|
| Charge Current (CC) | 40 A ± 5% |
| Rated Output Power | 584 W |
| Standby / Trickle Current | 2000–4000 mA |
| Efficiency | > 88% @ 230 VAC, full load |
| Ripple & Noise | ≤ 500 mVp-p |
| Battery Chemistry | 12 V (4S) LiFePO₄ / LFP |
PROTECTION
| Short-Circuit | Auto shutdown · recycle AC to reset |
|---|---|
| Over-Voltage | Shuts off at ≥ 1.05 × Vout |
| Over-Current | Shuts off at ≥ 1.1 × Iout |
| Reverse / No-Load / Over-Temp | Protected — no output |
RELIABILITY
| MTBF | ≥ 50,000 h (77 °F / 25 °C, full load) |
|---|---|
| Vibration | 5–200 Hz, 3 axes (tested) |
ENVIRONMENTAL
| Operating Temperature | 14 °F to 104 °F (−10 °C to +40 °C) |
|---|---|
| Storage Temperature | −40 °F to 158 °F (−40 °C to +70 °C) |
| Relative Humidity | 5–95% noncondensing |
| Altitude | ≤ 6,562 ft (2,000 m) |
| Cooling | 3.15 × 3.15 × 0.59 in (80 × 80 × 15 mm) fan |
| Ingress Protection | IP65 |
MECHANICAL
| Dimensions (L × W × H) | 11.6 × 4.8 × 3.33 in (295 × 122 × 84.6 mm) |
|---|---|
| Weight | 7.7 lb (3.5 kg) |
| Housing | Die-cast aluminum, black anodized |
| AC Input Connector | NEMA 5-15P → IEC C13 inlet |
| DC Output Leads | 2 × 6 mm² (≈ 9 AWG), ≈ 59 in (1500 mm) |
| DC Termination | M8 ring terminals (RNB8-5) |
| Mounting Centers | 10.63 in (270 mm) |
| Mounting Holes | 0.28 in (7 mm) · M6 |
| Min. Clearance | 1.2 in (30 mm) all sides |
COMPLIANCE, SAFETY & EMC
| Certifications | CE, FCC, ABYC Compliant |
|---|---|
| Ignition Protection | Yes — safe for engine / fuel spaces |
| Dielectric Strength | 1500 VAC in–out / in–gnd, 1 min |
| Insulation Resistance | ≥ 10 MΩ @ 500 VDC |
| Leakage Current | < 3.5 mA |
| EMC | EN 55014 Class A · IEC 61000-4 |
LED INDICATOR STATUS
| Power-On / Standby | Green — flashing: AC connected, ready to charge |
|---|---|
| Charging | Blue — solid: Actively charging the battery bank |
| Fully Charged | Green — solid: Charge complete, output tapered off |
| Fault / Error | Red — flashing: Protection active — check install & recycle AC |
