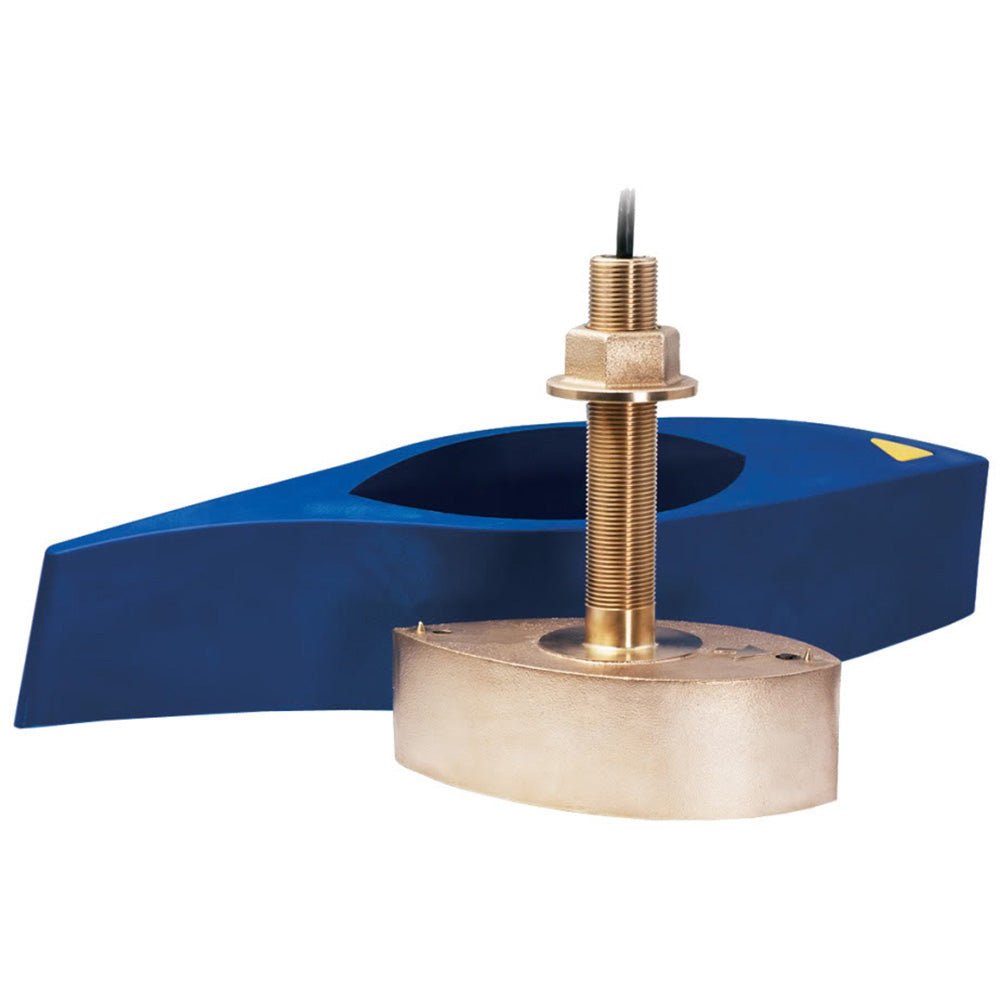

B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth & Temp
The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
The included high-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep to mid-depth performance
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- Medium frequency: 85 to 135 kHz
- 16° to 11° beamwidth
- Maximum depth of 457 m (1500')
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz, plus everything else in the bandwidths
- Bronze housing with High-performance Fairing for optimal high-speed performance
- Also available as transom (TM265LM), pocket (PM265LM), cavity/welded-tank (CM265LM), and in-hull (M265LM) mounts
- Patented Xducer ID® technology
Specifications
Specifications
Identification
| MPN | B265C-LM-0 |
|---|
Electrical
| Power Rating | 1 kW |
|---|
General
| Max Deadrise Angle | 20° |
|---|---|
| Functions | Depth, Temperature |
| Max Vessel LOA | 8 m (25') and above |
| Acoustic Window | Urethane |
| Common Use | Fishing, Commercial Fishing |
| Low Frequency | 42-65 kHz |
| Max Deadrise | Up to 20° with fairing |
| Medium Frequency | 85-135 kHz |
| Single or Dual Frequency | CHIRP-Ready Dual-Band |
| Tilted Element | No |
Physical
| Housing | Bronze |
|---|---|
| Usable Shaft Length | 121 mm (4.75") |
| Mounting Style | Thru-Hull with Fairing |
| Low Frequency Beamwidth | 25°-16° |
| Max Depth | Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') |
| Medium Frequency Beamwidth | 16°-11° |
| Retractable housing | No |
| Weight | 7.3 kg (16 lbs.) |
Certifications & Protection
| Hull Material | Fiberglass or wood |
|---|
