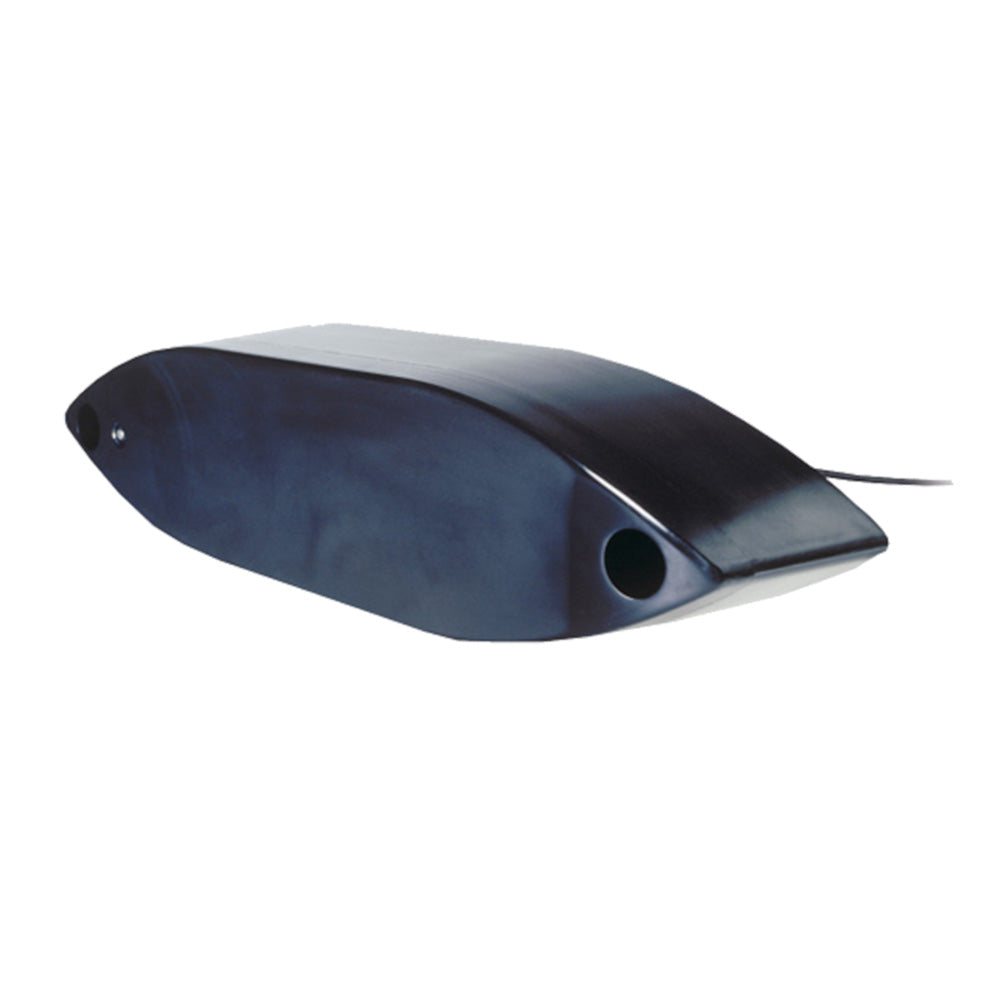

R509C-LM CHIRP 3KW Transducer
Unlock the true potential of your fish-finder with the superior quality and performance of an AIRMAR Chirp-ready transducer.
Features:
- Depth & fast-response water-temperature sensor
- Epoxy transducer housing with high-performance fairing
- For use on hulls up to 25° deadrise
- 82 kHz of total bandwidth from one transducer
Benefits of Thru-Hull Transducers with High-Performance Fairing:
- The best performance on vessels 25 feet and up because the transducer face is in “clean” water below the boundary layer (bubbles running down the hull)
- The fairing compensates for hull deadrise and reduces turbulence over the transducer face, which allows tracking at speeds over 30 knots (35 MPH)
- When mounted in clean water (forward of propellers and running gear), thru-hulls produce the most effective signal return since nothing on the vessel interferes with the transducer’s active surface
Specifications
Specifications
Identification
| MPN | R509C-LM |
|---|---|
| Barcode | 801769001594 |
Low (28 kHz to 60 kHz):
| Note 1 | 23° to 9° port/starboard |
|---|---|
| Note 2 | 11° to 5° fore-aft beamwidth |
| Note 3 | Maximum depth 10000 ft |
Medium (80 kHz to 130 kHz):
| Note 1 | 13° to 8° beamwidth |
|---|---|
| Note 2 | Maximum depth 3000 ft. |
Bottom Coverage Relative to Frequency and Depth
| Depth (50 ft.) | 10 ft. |
|---|---|
| Depth (100 ft.) | 24 ft. |
| Depth (300 ft.) | 68 ft. |
| Depth (600 ft.) | 136 ft. |
| Depth (1000 ft.) | 228 ft. |
| Depth (1500 ft.) | 340 ft. |
| Depth (2000 ft.) | 456 ft. |
| Depth (2500 ft.) | 570 ft. |
