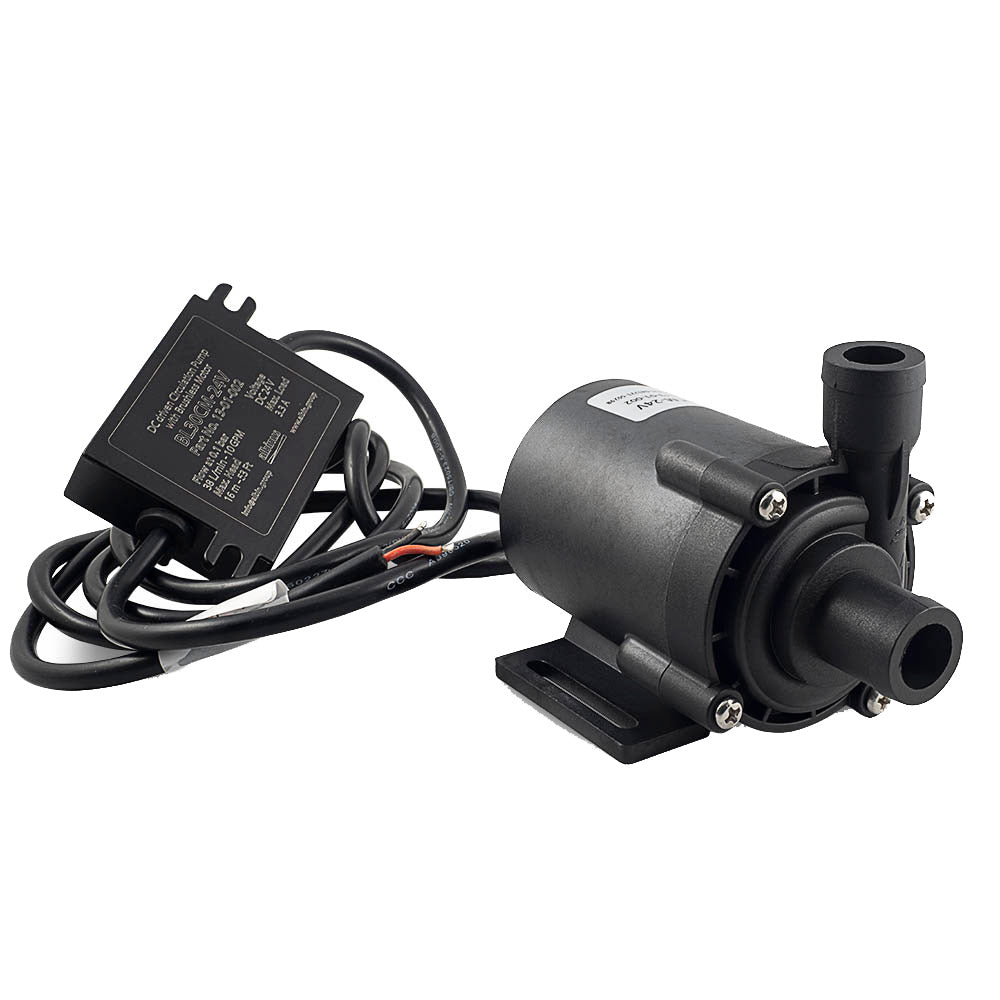

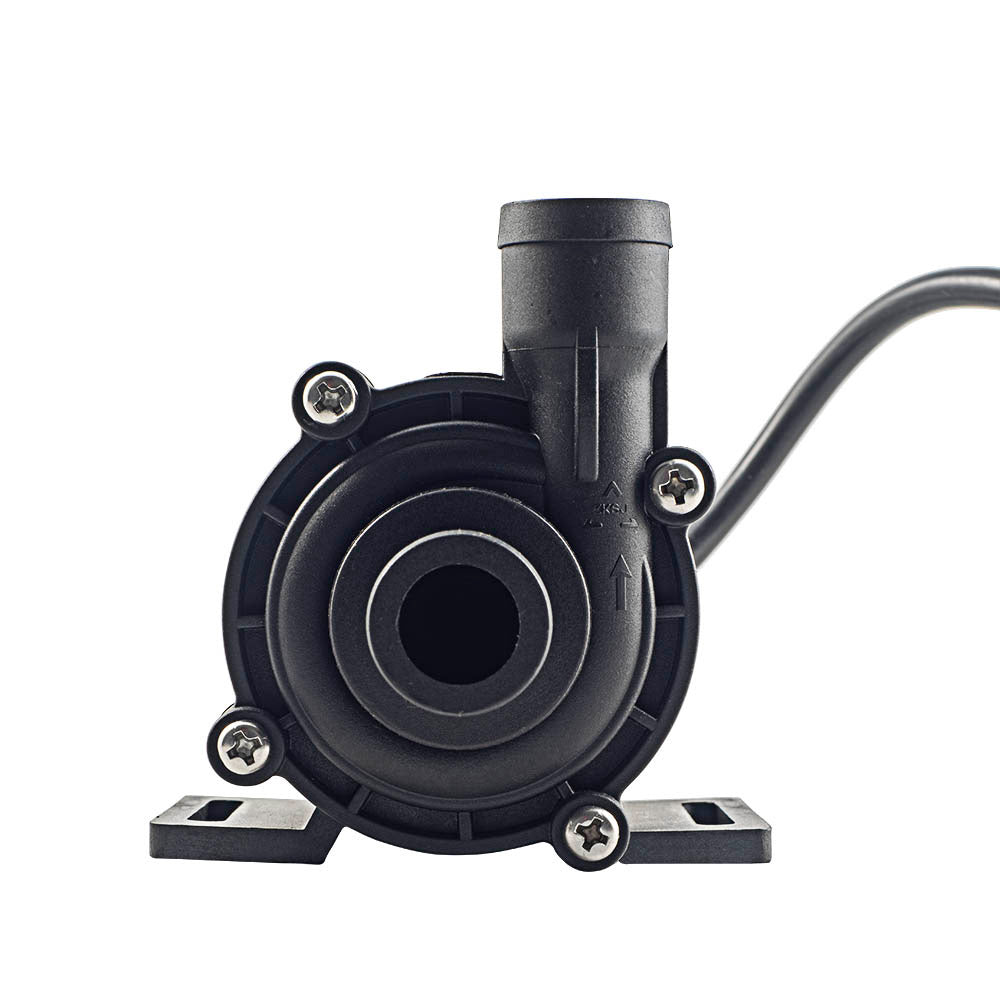

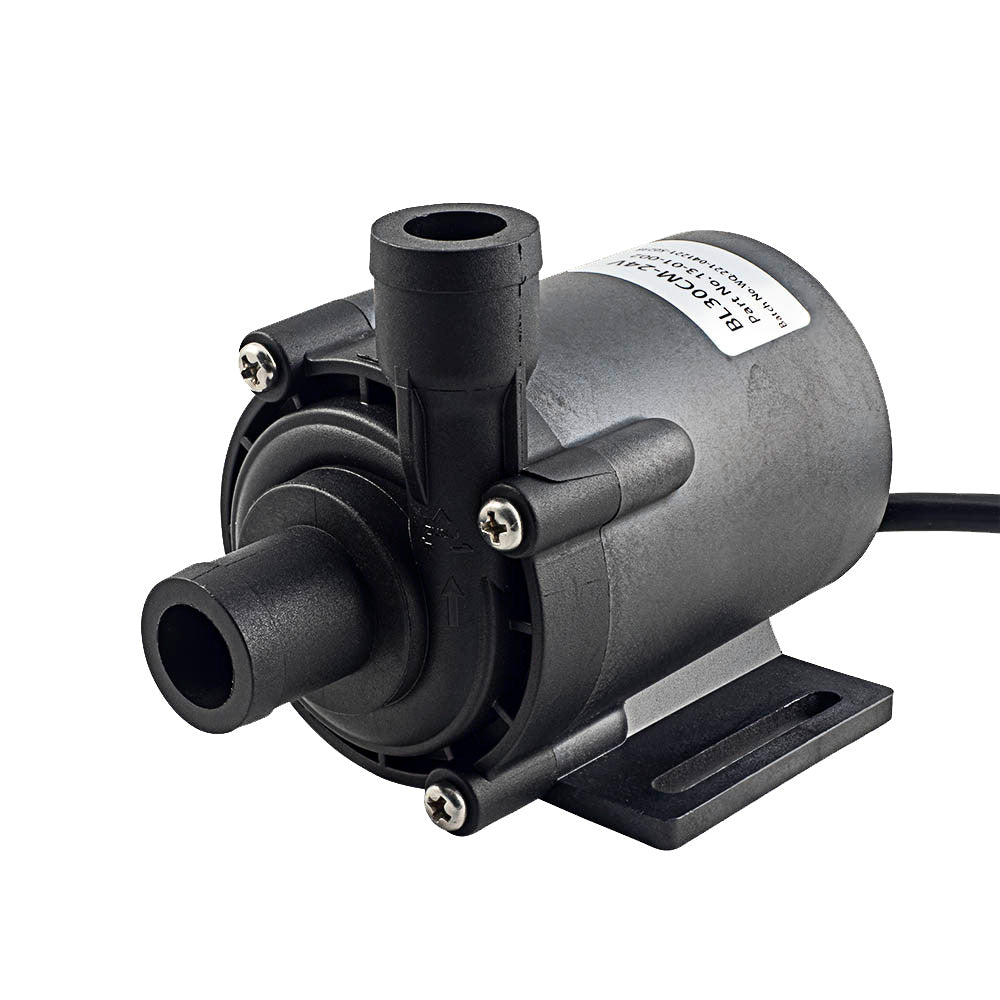

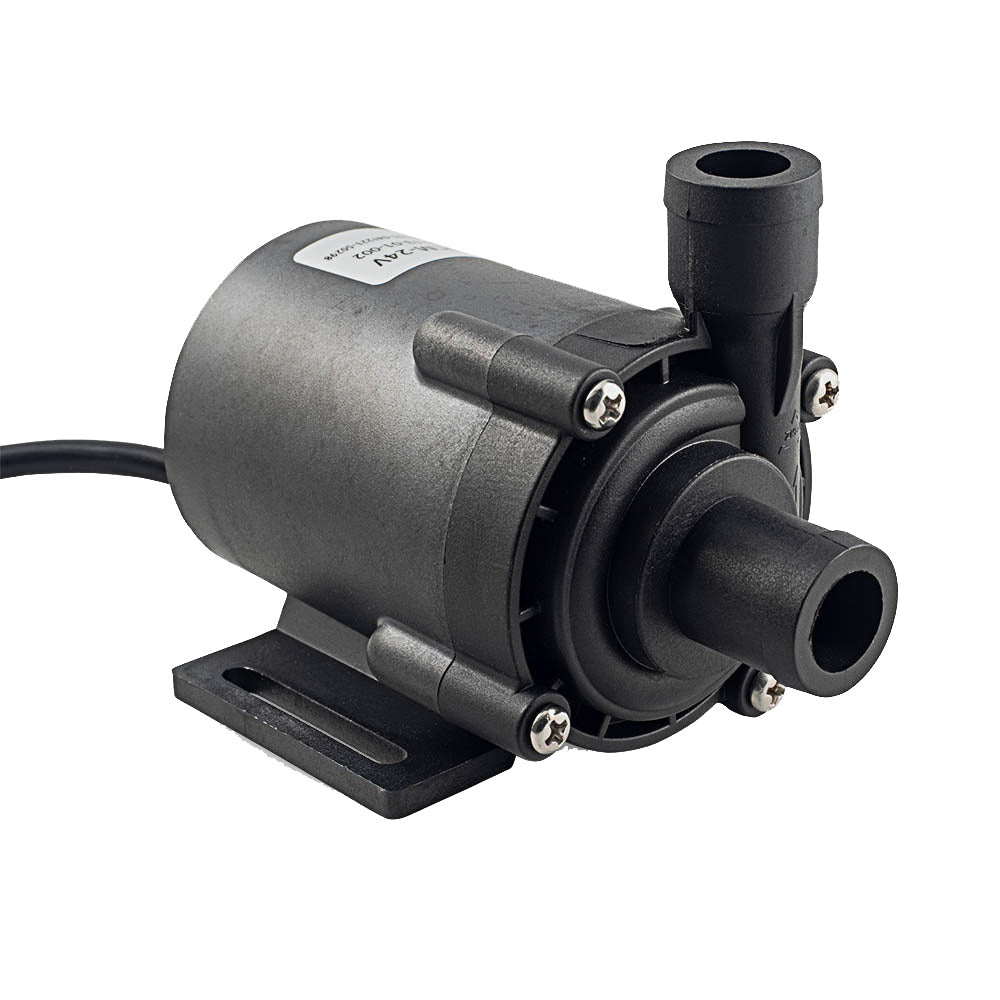

DC Driven Circulation Pump with Brushless Motor - BL30CM 12V
This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.
Features:
- Motor brush-less magnetic isolated design
- For continuous duty
- The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C
Specifications
Specifications
Identification
| MPN | 13-01-001 |
|---|---|
| Barcode | 7340176606907 |
Physical
| Port size | (inch) 3/4" / (mm) 20 |
|---|---|
| Weight | 0.48 kg |
| Capacity at 0.1 bar | 32 l/min |
| Capacity at 0.25 bar | 28 l/min |
| Max load | 4.5A |
| Materials of pump housing | ABS, PES/SPS/PA66 |
Electrical
| Max power consumption | 55W |
|---|---|
| Noise class | 35dB |
General
| Life span | 20,000 hours |
|---|---|
| Motor IP classification | IP 68 |
