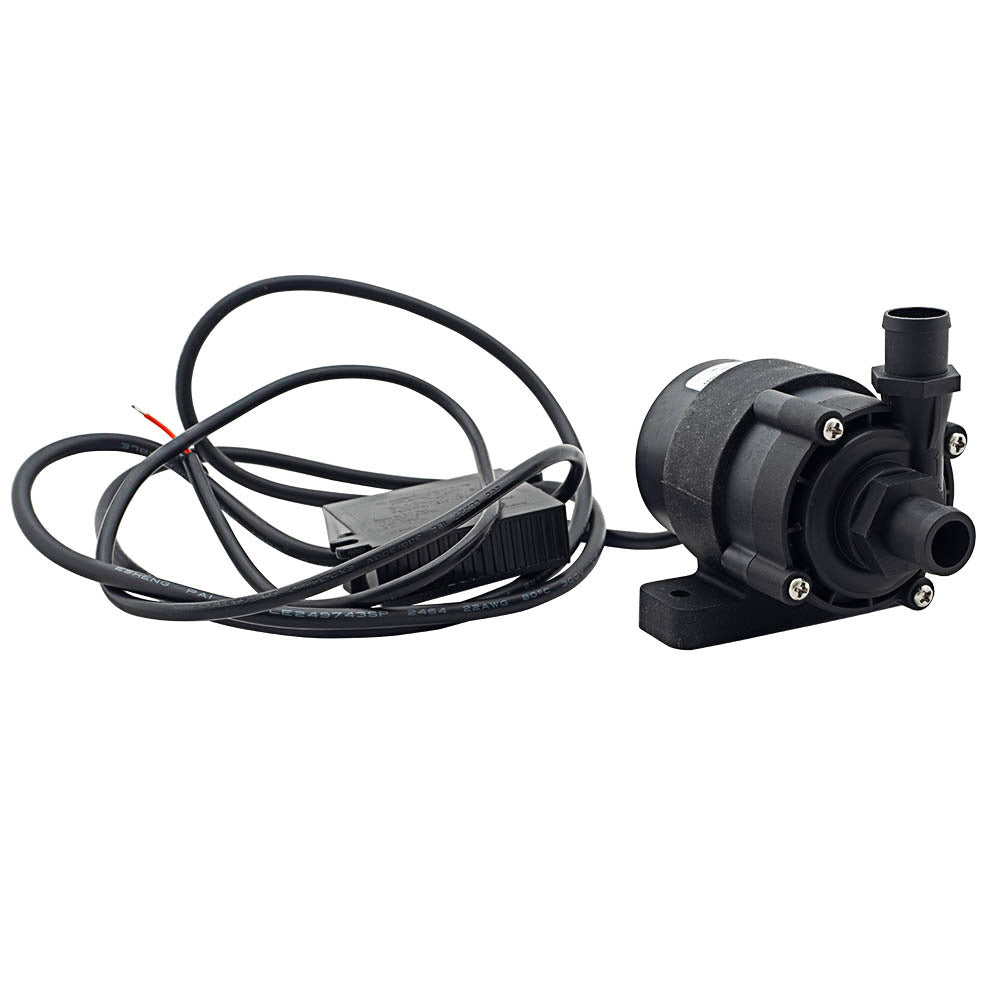

Albin Group DC Driven Circulation Pump w/Brushless Motor - BL10CM 24V
Precio normal
$12678
Precio unitario
SKU:
ALB/13-01-006
Precio normal
$12678
Precio unitario
Descripción
Descripción

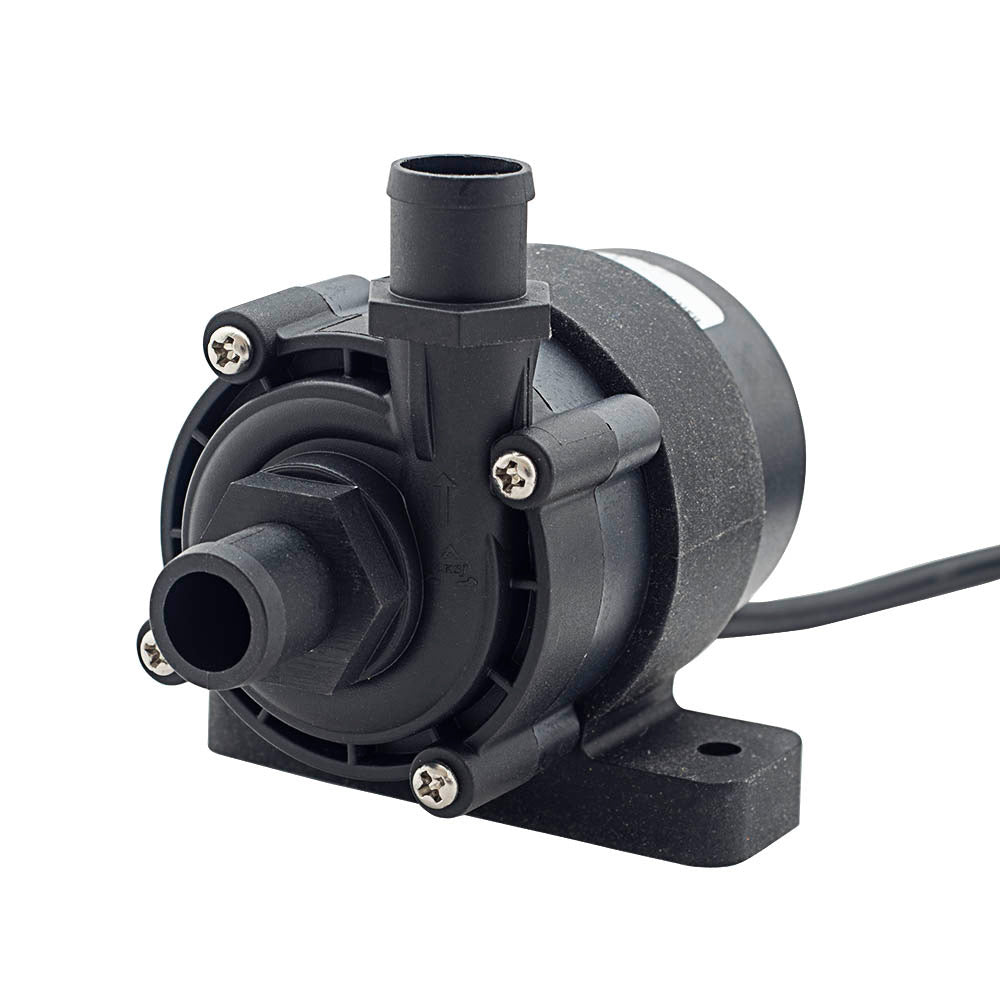

DC Driven Circulation Pump with Brushless Motor - BL10CM 24V
This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.
Features:
- Motor brush-less magnetic isolated design
- For continuous duty
- The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C
Specifications
Specifications
Identification
| MPN | 13-01-006 |
|---|
Physical
| Port size | (inch) 5/8" / (mm) 14 |
|---|---|
| Weight | 0.2 kg |
| Capacity at 0.1 bar | 21 l/min |
| Capacity at 0.25 bar | 18 l/min |
| Max load | 1.7 A |
| Materials of pump housing | ABS, PES/SPS7PA66 |
Electrical
| Max power consumption | 40 W |
|---|---|
| Noise class | 35dB |
General
| Life span | 20,000 hours |
|---|---|
| Motor IP classification | IP 68 |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
