Attwood  |  SKU: ATW/1733-4

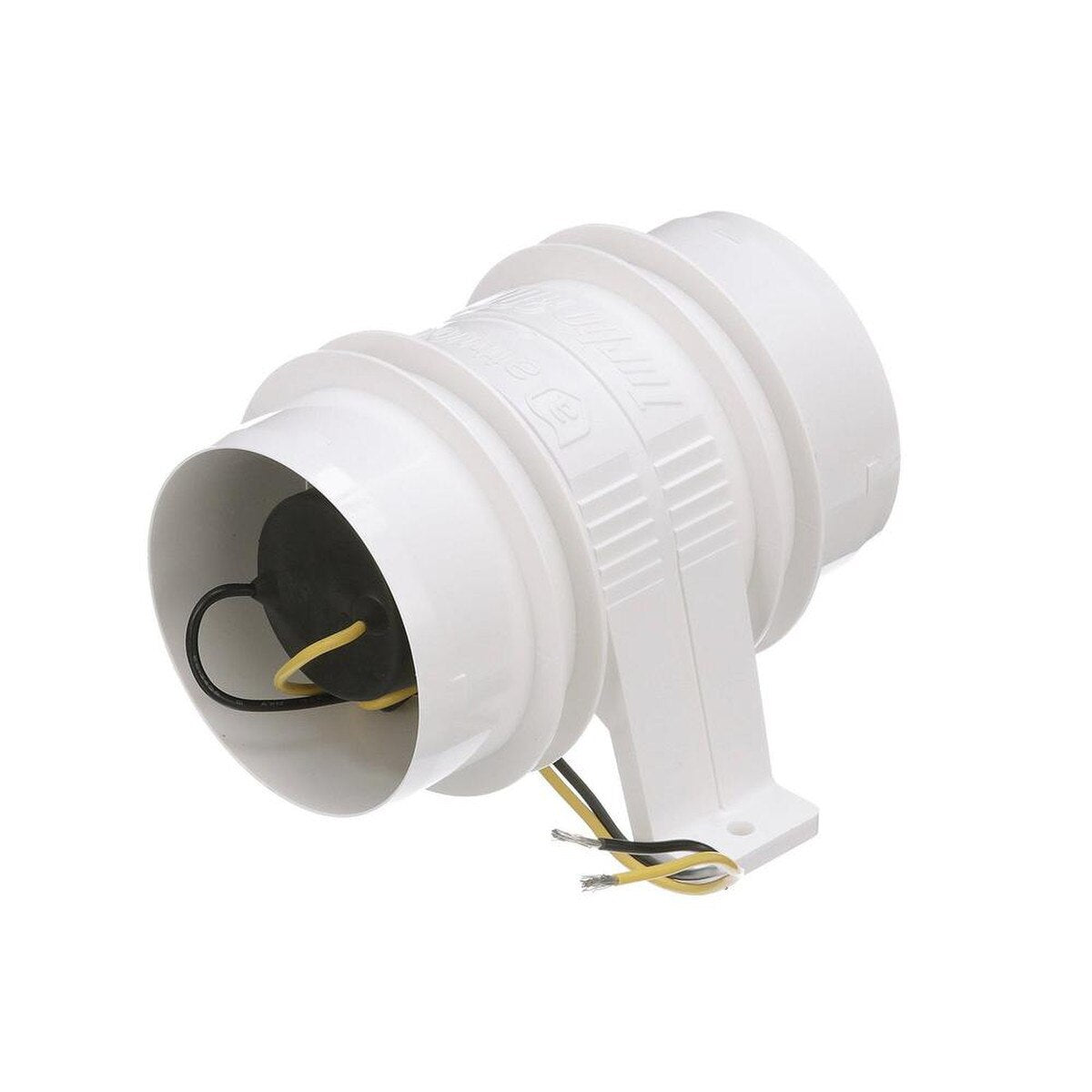

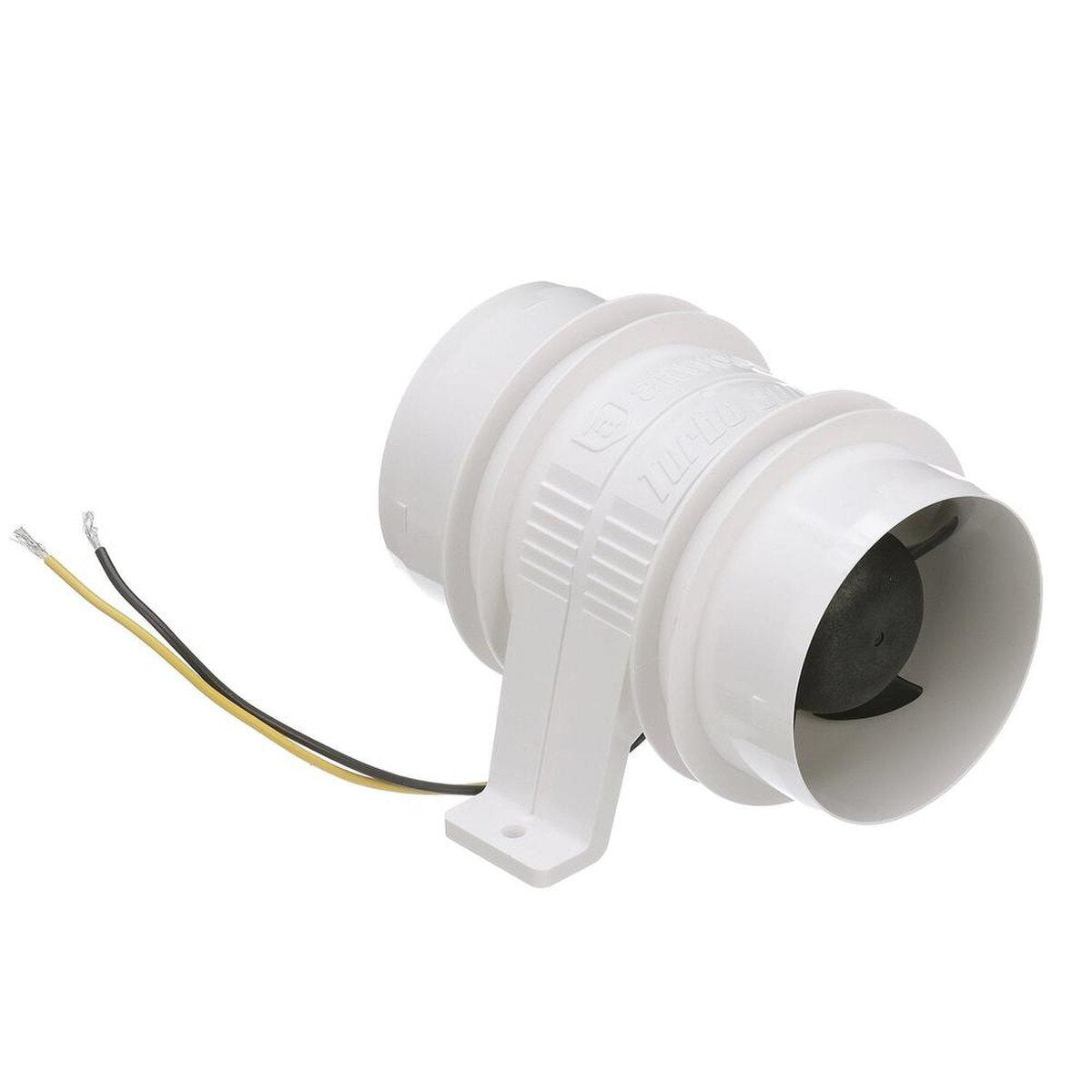

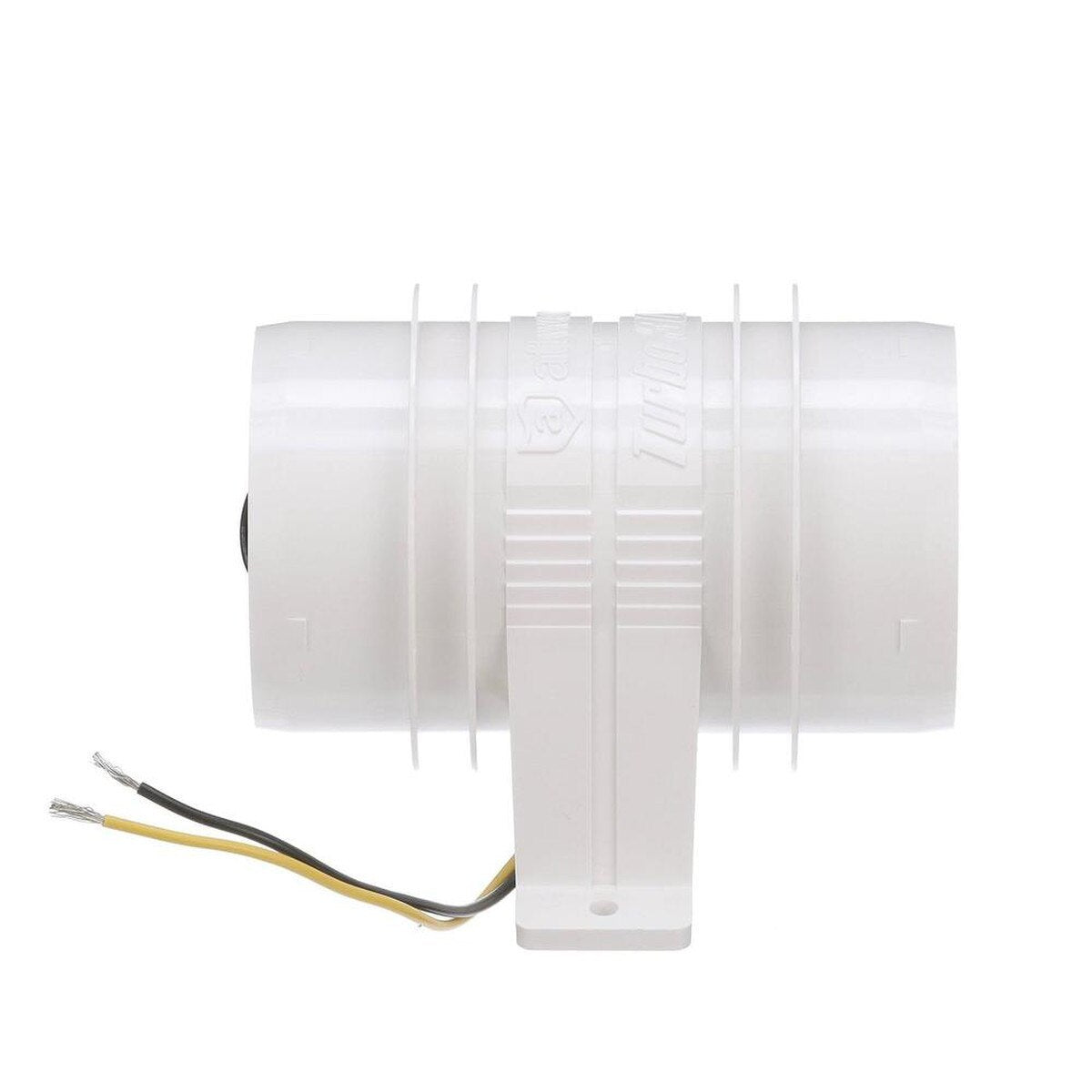

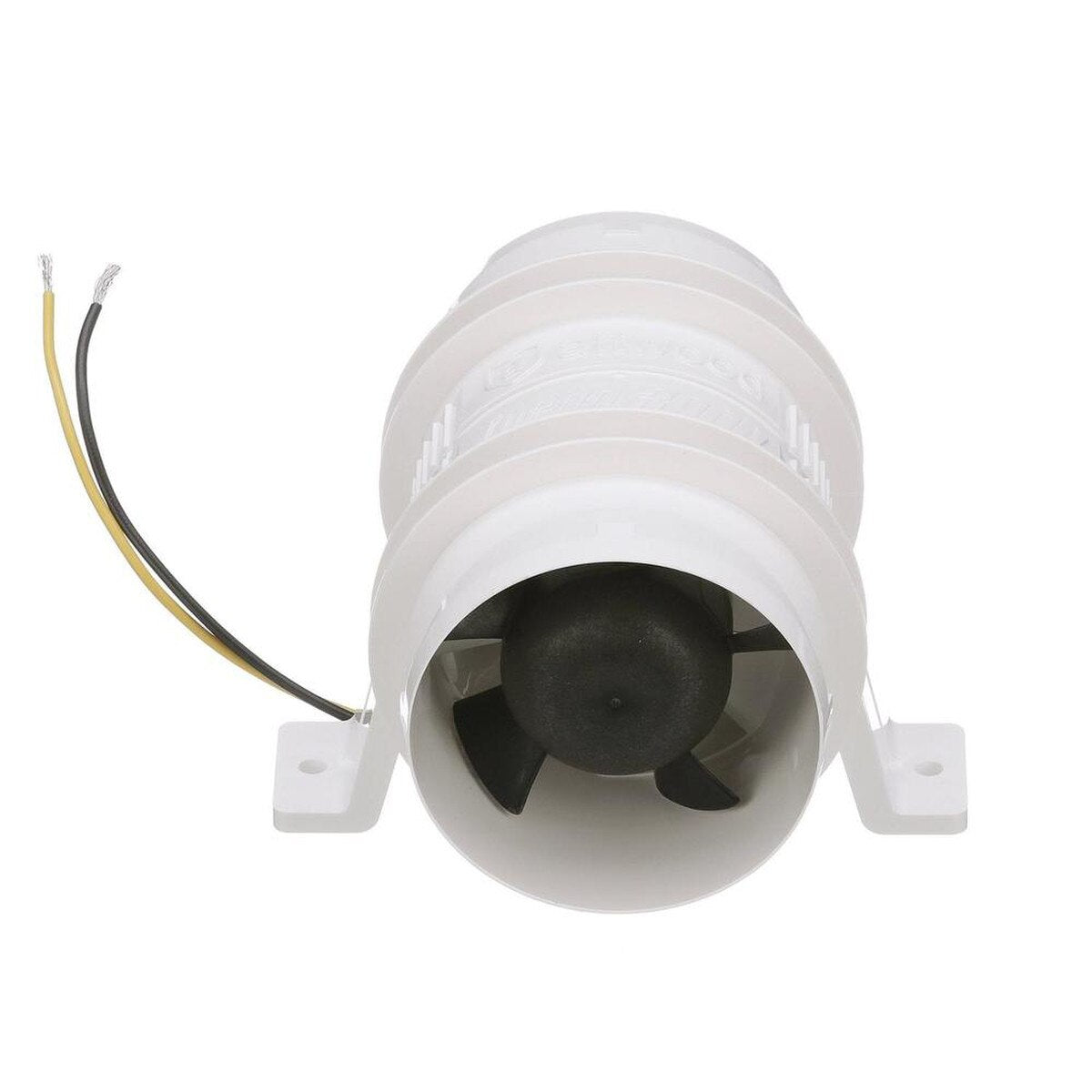

Turbo 3000 3" Blower (12v)

Precio normal $3953
Options
Turbo 3000 3" Blower (12v)
Turbo 3000 3" Blower (12v)

Turbo 4000 Series II (12v)
Turbo 4000 Series II (12v)


Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

The first vane axial-flow fan bilge blowers designed using aerospace technology to maximize performance. No other bilge blowers in the industry provide such powerful system output at such a low power input in a compact size. Patented in-line design - provides ventilation for engine compartments, galleys, bilges, and heads. Mounting feet allow vertical or horizontal installation in confined spaces. Install with #10 fasteners. Individual carton includes 2 tie straps. All are CE certified. 16-gauge tinned and caulked copper wire leads with optional MP1 molded rubber connectors.

  • Provides outstanding ventilation airflow for areas such as engine compartments, galleys, bilges, and heads
  • Features a patented, in-line design and the 5-blade fan maximizes airflow and efficiency
  • The blade sweep and pitch are engineered for a high lift coefficient, resulting in increased airflow speed for optimized ventilation
  • System airflow exceeds older-style in-line blowers by as much as 25 percent
  • Up to four times more efficient than competitive blowers as it draws up to 40 percent fewer amps
  • Marine ignition protected and has built-in mounting feet for easy vertical or horizontal installation

Especificaciones

  • MPN
    1733-4
  • Physical
    Dimensions: 3 5/8" x 4 1/2" x 5 1/16"
    Hose: 3"
  • Power
    Input: 12v DC
    Draw: 3.1 A @ 13.6v
    Draw: 2.6 A @ 12.0v
    Fuse: 4 A
  • Pump
    Type: Axial Flow
    Open Flow: 120cfm @ 12v / 145cfm @ 13.6v
    In System Flow: 90cfm @ 12v / 100cfm @ 13.6v
  • Certifications
    ABYC H2, USCG 183.410, USCG 183.610 (b), ISO 9097, CE, UKCA, RCA
