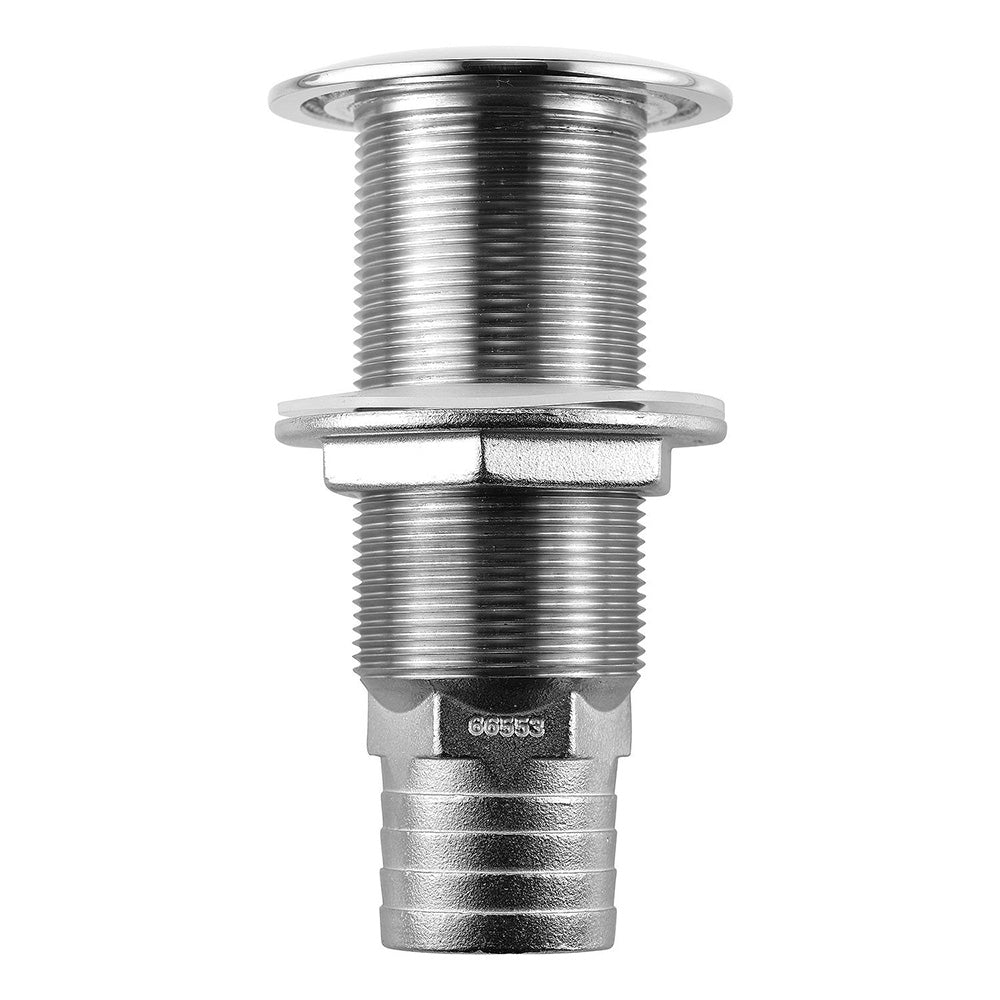

Stainless Steel Scupper Valve Barbed - 1-1/2" Hose Size
Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?
Rugged Stainless Construction:
- Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
- All visible areas are polished to a mirror finish, then passivate each part for additional protection
- Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
- Each Scupper Valve is available with a new silicone gasket
- A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
- All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
- The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Scupper Valves, Barbed:
- The Scupper Flap is tough neoprene rubber with a molded V that fits into the grooved body to reduce backwash
- Fasteners are concealed and corrosion-proof
Specifications
Specifications
Identification
| MPN | 66553-3 |
|---|---|
| Barcode | 022697665539 |
Physical
| Hose size | (inch) 1-1/2" inner diameter |
|---|---|
| Thread Diameter | (inch) 1-7/8" |
| Flange O.D. (outside diameter) | (inch) 3" |
| Thread Length | (inch) 3-1/2" |
| Barb Length | (inch) 1-1/2" |
| Total Length | (inch) 5-1/2" |
| Install Hole Saw Size | (inch) 2" |
General
| Thread NPSM | (inch) 1-1/2" |
|---|
Certifications & Protection
| Max Hull Thickness | (inch) 3" |
|---|
