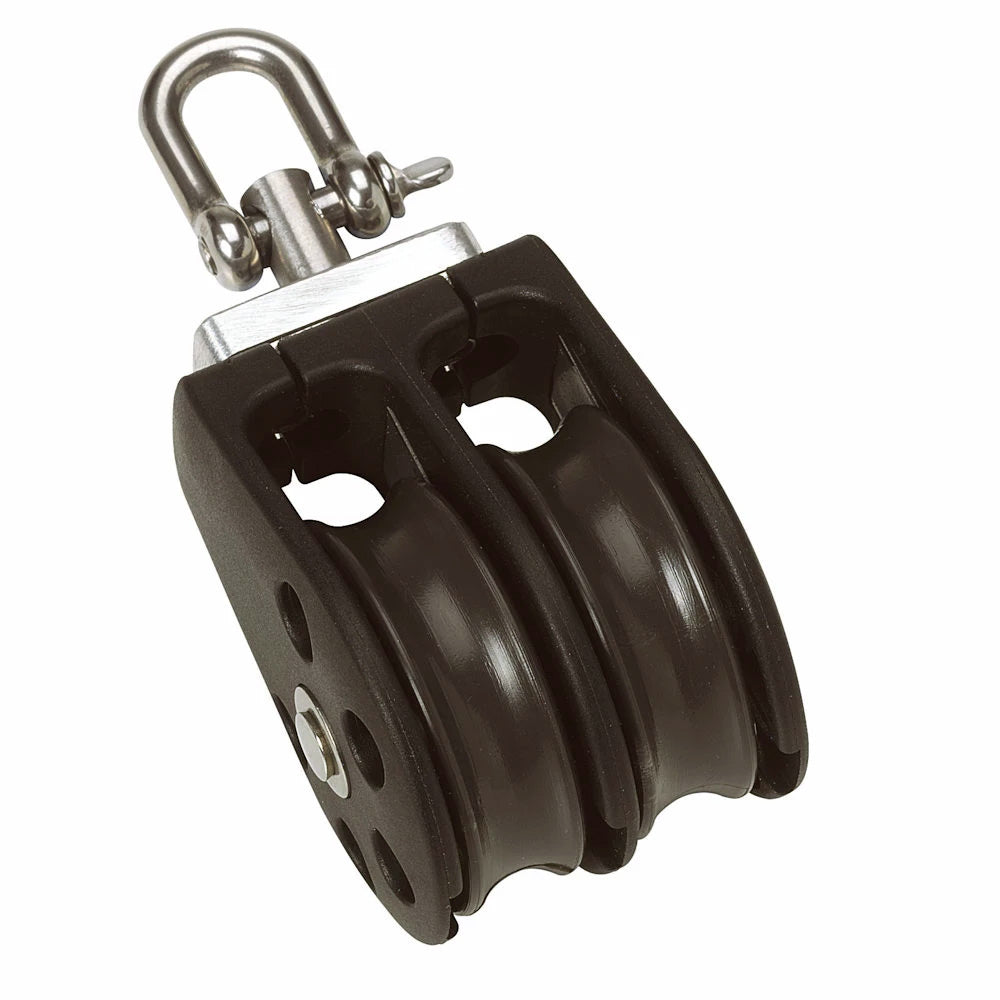

Size 2 35mm Plain Bearing Pulley Block Double with Swivel
The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.
Suitable for up to 8mm (5/16") rope.
Specifications
Specifications
Identification
| MPN | N02230 |
|---|---|
| Barcode | 5035088080595 |
Physical
| Weight | 87g |
|---|---|
| Dimensions | 83 × 39 × 38 mm |
| Size | 2 (35MM) |
| Sheave Size | 35mm x 11mm (1 3/8" x 15/32") |
| Max rope diameter | 8mm (5/16") |
General
| Block Type | Fixed Eye |
|---|---|
| No. of Sheaves | Double |
| Bearing Type | Plain |
| SWL | 370kg (815lbs) |
| Break load | 740kg (1630lbs) |
| Max rolling load (ball bearing blocks) | 260kg (573lbs) |
