SKU:
BAR/N03131
Precio de venta
$2987
Precio normal
$3319
Precio unitario
Descripción
Descripción

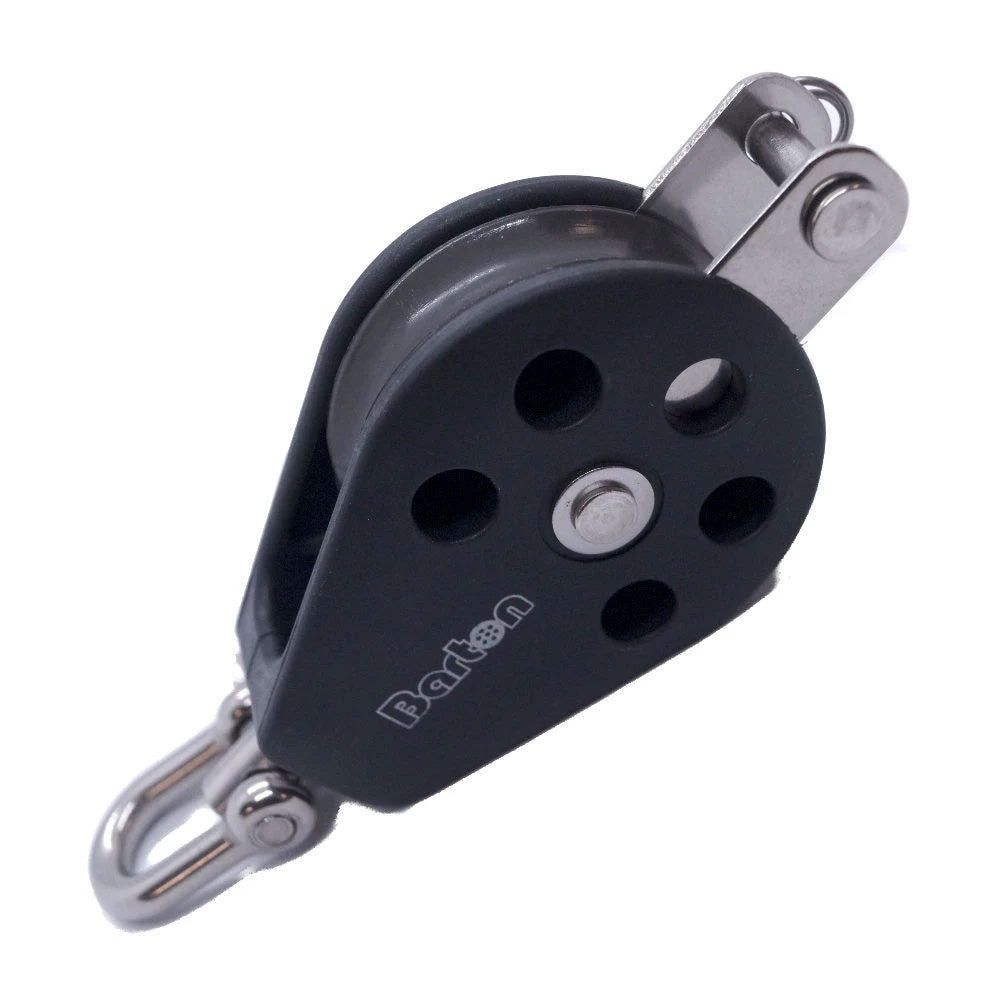

Size 3 45mm Plain Bearing Pulley Block Single Swivel & Becket
The size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass-filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.
Suitable for up to 10mm (3/8") rope.
Specifications
Specifications
Identification
| MPN | N03131 |
|---|---|
| Barcode | 5035088080854 |
Physical
| Weight | 91 g |
|---|---|
| Dimensions | 114 × 47 × 28 mm |
| Size | 3 (45MM) |
| Sheave Size | 45mm x 13mm (1 3/4" x 35/64") |
| Max rope diameter | 10mm (3/8") |
General
| Block Type | Swivel + Becket |
|---|---|
| No. of Sheaves | Single |
| Bearing Type | Plain |
| SWL | 400kg (881lbs) |
| Break load | 800kg (1763lbs) |
| Max rolling load (ball bearing blocks) | 270kg (595lbs) |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
