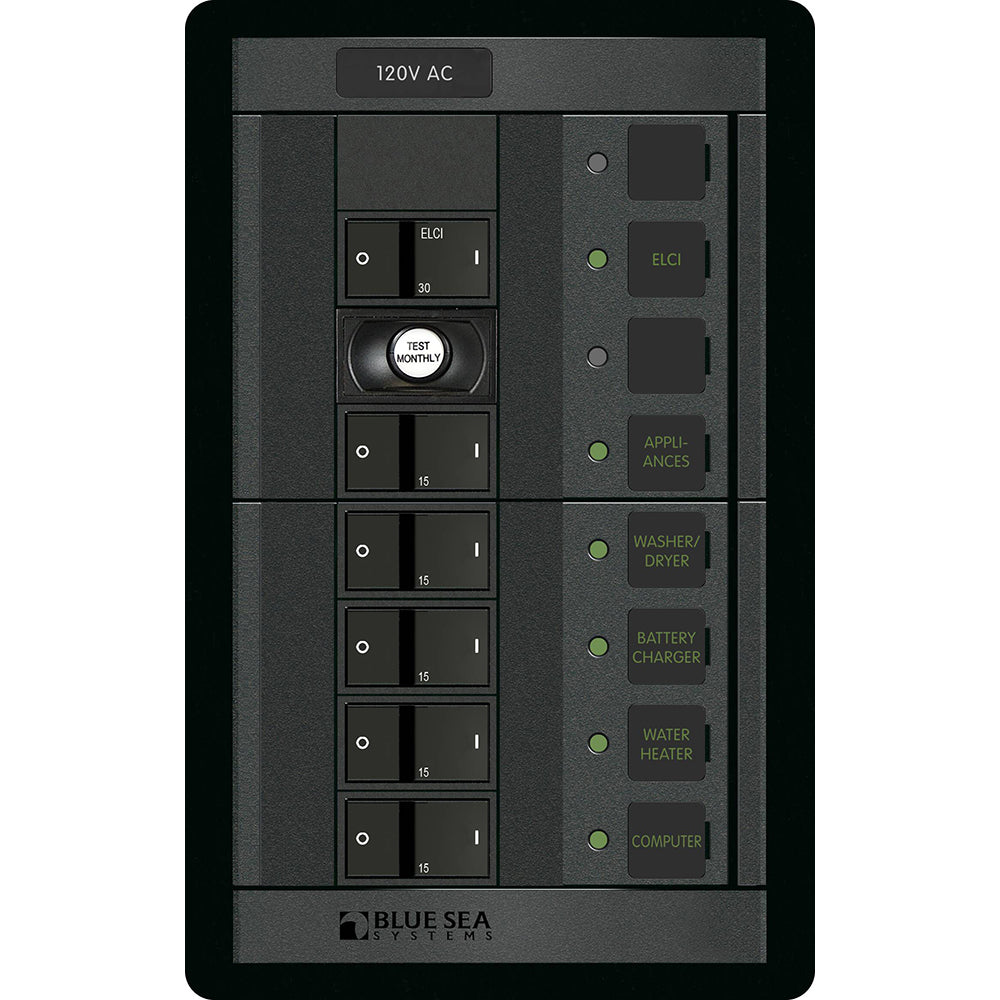

1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker
Part of the Blue Sea Systems Battery Management Panels. This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.
Features:
- Provides Main circuit protection with branch circuits
- Green ON indicating LEDs
- Backlit label positions
Specifications
Specifications
Identification
| MPN | 1503 |
|---|
General
| Positions | Five (5) + ELCI |
|---|---|
| Actuator Style | Flat Rocker |
| Circuit Breaker Type - A-Series | 5 Branch (15A) and ELCI Main (30A) |
| Leakage Trip Amps | 30mA |
Electrical
| Amperage | 30A AC trip reference |
|---|---|
| Maximum Voltage | 120V |
Physical
| Dimensions (H x W x D) | 7.75" x 4.88" x 3.99" (197 x 124 x 101mm) |
|---|
