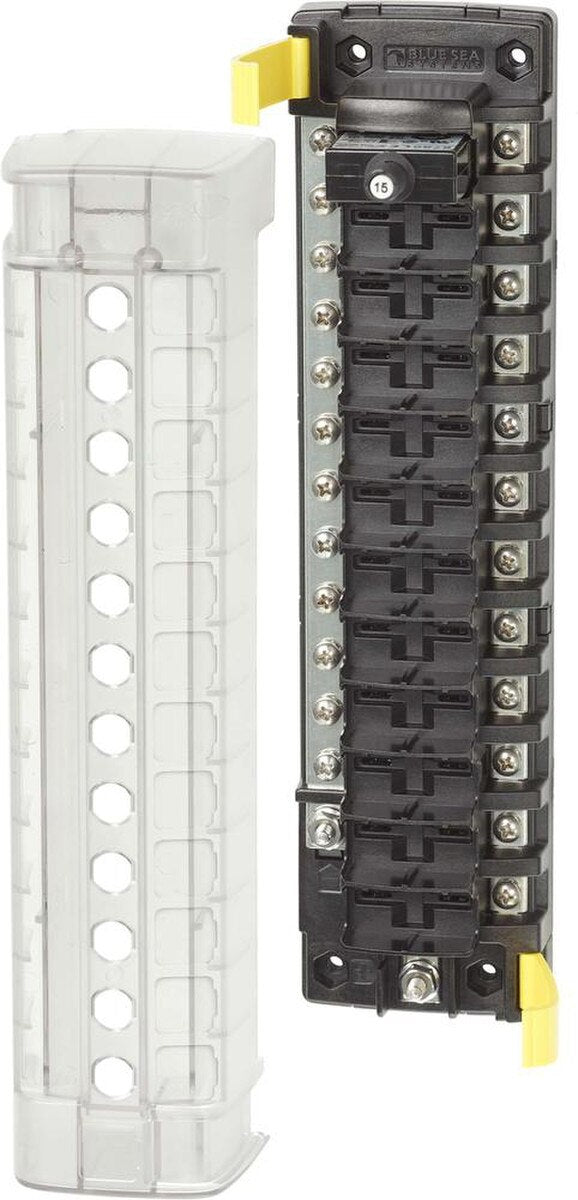

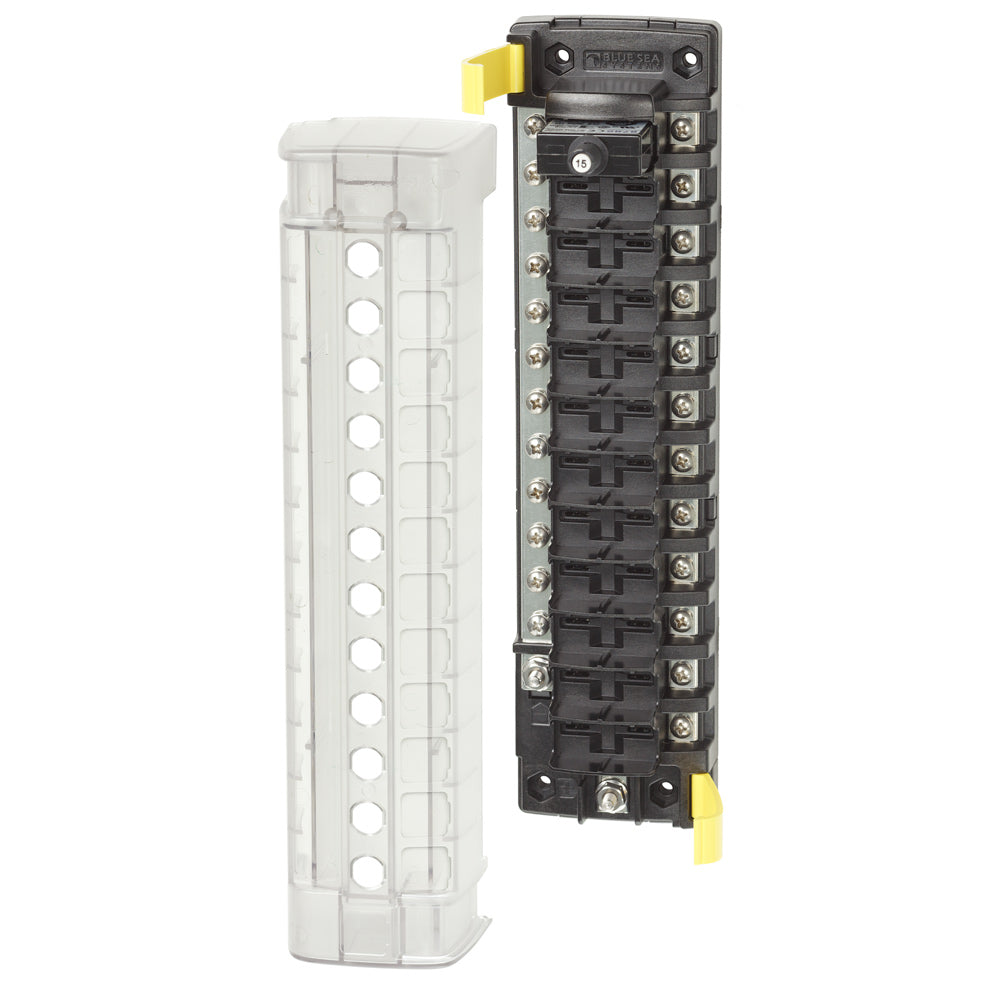

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative...
Descripción
Descripción
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals

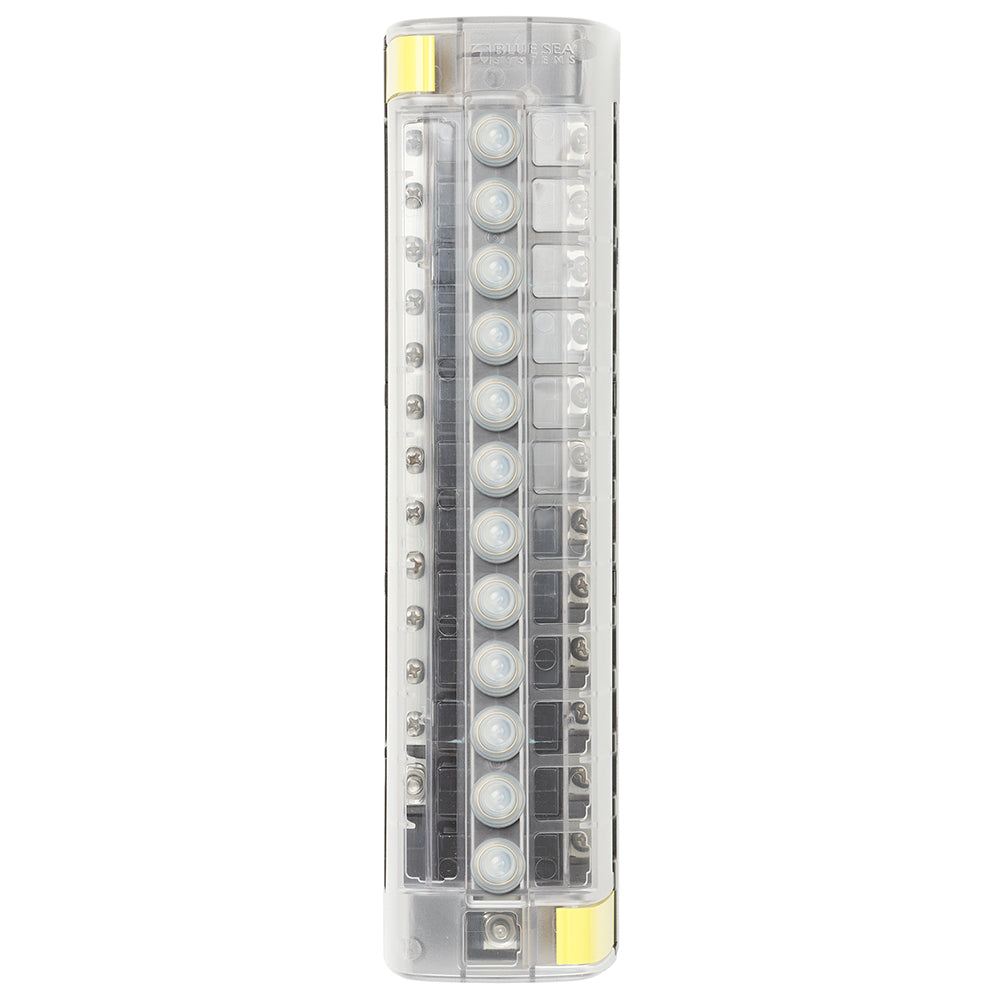

- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)
Specifications
Specifications
Identification
| MPN | 5054 |
|---|---|
| Barcode | 632085050542 |
