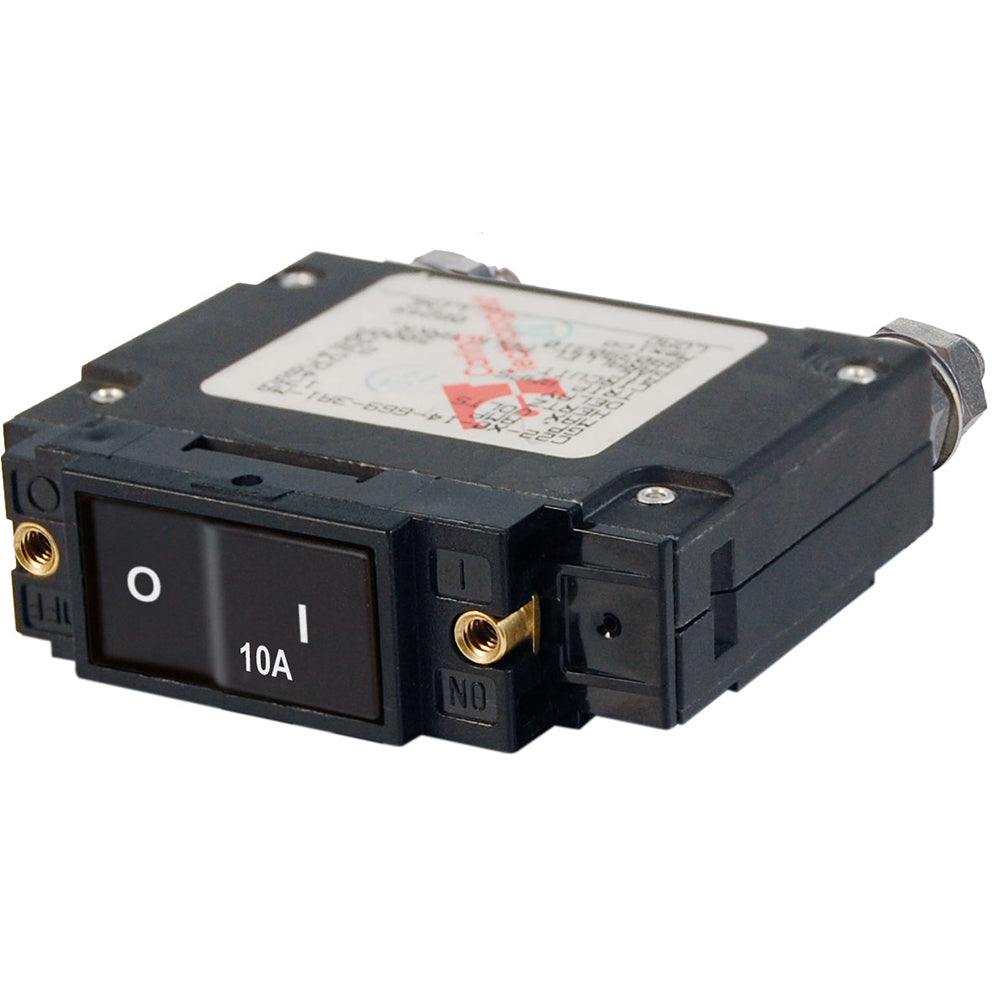

Disyuntor de circuito de balancín plano de la serie C 7541 de Blue ...
Precio normal
$6799
Total:
Precio unitario
SKU:
BSS/7541
Precio normal
$6799
Total:
Precio unitario
Descripción
Descripción
Interruptor de circuito de balancín plano Serie C - Unipolar - 10A
Características:
Especificaciones:
Características:
Especificaciones:
Specifications
Specifications
Identification
| MPN | 7541 |
|---|---|
| Barcode | 632085075415 |
Physical
| Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switchingColor actuator indicates "OFF" positionProvides overcurrent protection for inverters, bow thrusters, and windlassesCombines switching and circuit protection into a single device"Trip Free" | cannot be held closed after tripIgnition protectedsafe for installation aboard gasoline powered boats |
|---|
Electrical
| Amperage | 10A AC / 10A DCActuator Style: Flat RockerPoles: 1Maximum Voltage: 240V AC / 48V DCCircuit Breaker Type: Magnetic Hydraulic - trip freeTerminal Stud Torque: 35 in-lb (3.95 Nm)Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DCMinimum Operating Temperature: -40° CMaximum Operating Temperature: 85° CMounting Screw: #6-32 Stainless SteelMounting Screw Torque: 6 in-lb (0.68 Nm)Switching Cycles: 10000Terminal Stud: 1/4-20 Tin-Plated BrassWeight: 0.38lb (0.17 kg) |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
