Interruptor de circuito Blue Sea 7542 C-Series Flat Rocker - Unipol...
Precio normal
$6799
Total:
Precio unitario
SKU:
BSS/7542
Precio normal
$6799
Total:
Precio unitario
Descripción
Descripción

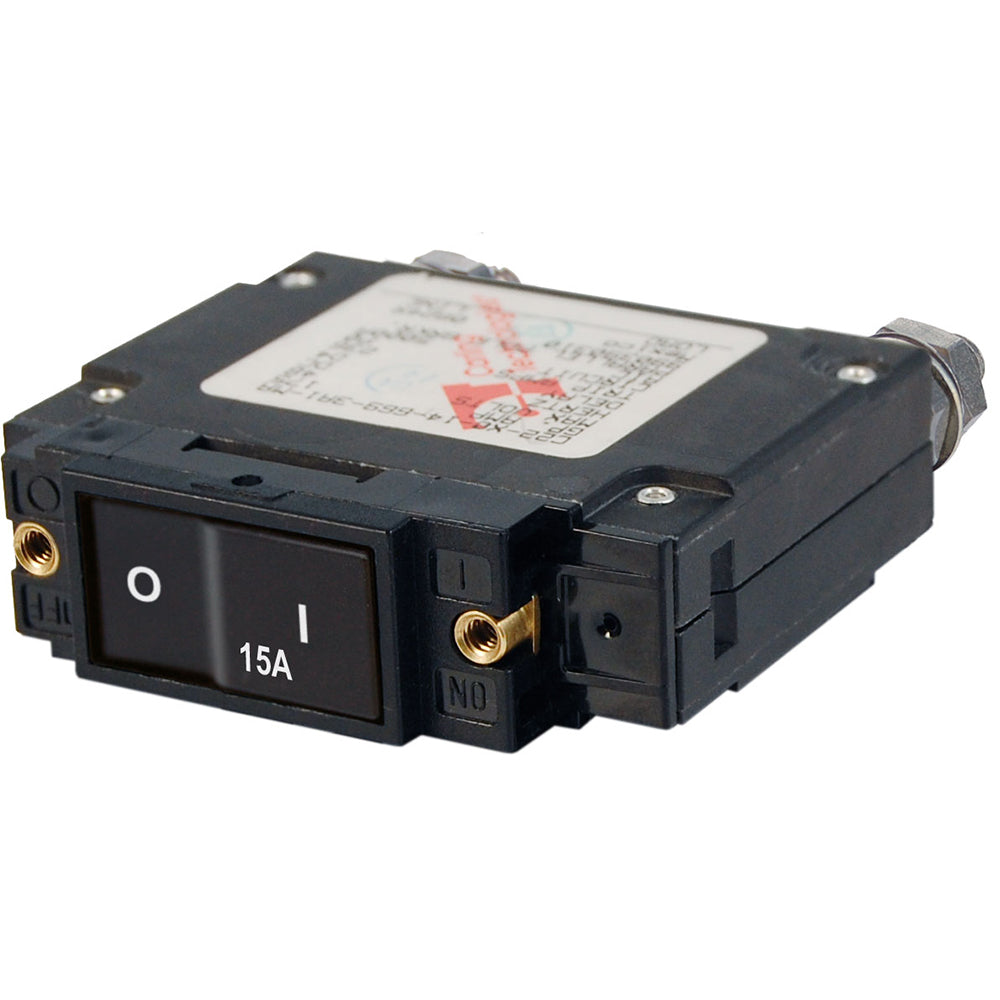

Interruptor automático de balancín plano Serie C - Unipolar - 15A
Características:
Especificaciones:
Características:
Especificaciones:
Specifications
Specifications
Identification
| MPN | 7542 |
|---|---|
| Barcode | 632085075422 |
Physical
| Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switchingColor actuator indicates "OFF" positionProvides overcurrent protection for inverters, bow thrusters, and windlassesCombines switching and circuit protection into a single device"Trip Free" | cannot be held closed after tripIgnition protectedsafe for installation aboard gasoline powered boats |
|---|
Electrical
| Amperage | 15A AC / 15A DCActuator Style: Flat RockerPoles: 1Maximum Voltage: 240V AC / 48V DCCircuit Breaker Type: Magnetic Hydraulic - trip freeTerminal Stud Torque: 35 in-lb (3.95 Nm)Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DCMinimum Operating Temperature: -40° CMaximum Operating Temperature: 85° CMounting Screw: #6-32 Stainless SteelMounting Screw Torque: 6 in-lb (0.68 Nm)Switching Cycles: 10000Terminal Stud: 1/4-20 Tin-Plated BrassWeight: 0.38lb (0.17 kg) |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
