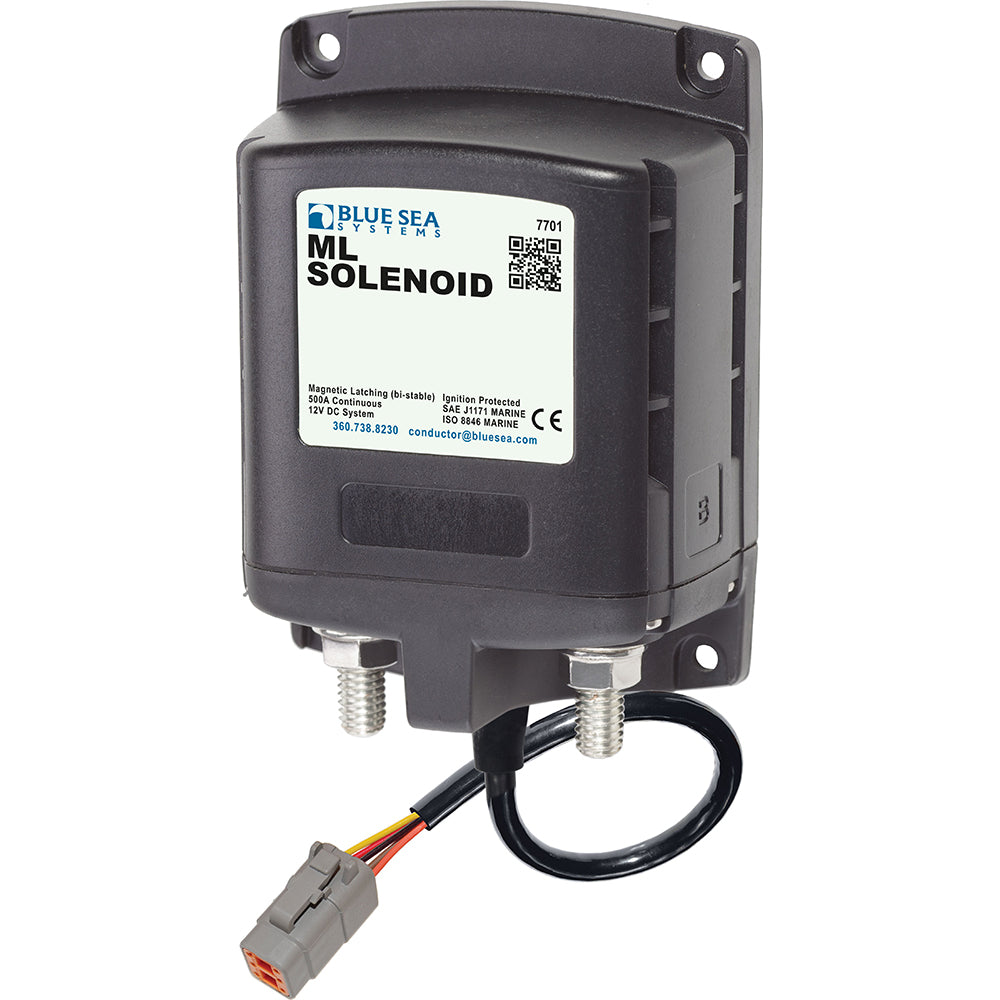

7701100 ML Solenoid 12V 500A with Deutsch Connector
500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.
Features:
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk
Specifications
Specifications
Identification
| MPN | 7701100 |
|---|---|
| Barcode | 632085770112 |
General
| Control Circuit Connection | Deutsch DTM |
|---|---|
| Manual Control | No |
| Coil Function | Bi-Stable |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Stud Material | Tinned Copper |
Electrical
| Nominal Voltage | 12VDC |
|---|---|
| Amperage Operating Current Continous | 0A |
Physical
| Mounting | #10 |
|---|---|
| Cable Size to Meet Ratings | 2x (4/0) |
| Terminal Ring Diameter Clearance | 1.18" (29.97 mm) |
| Terminal Stud Length | 0.875" (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.75lb (0.79 kg) |
