Blue Sea Systems  |  SKU: BSS/3001  |  Código de barras: 632085030018

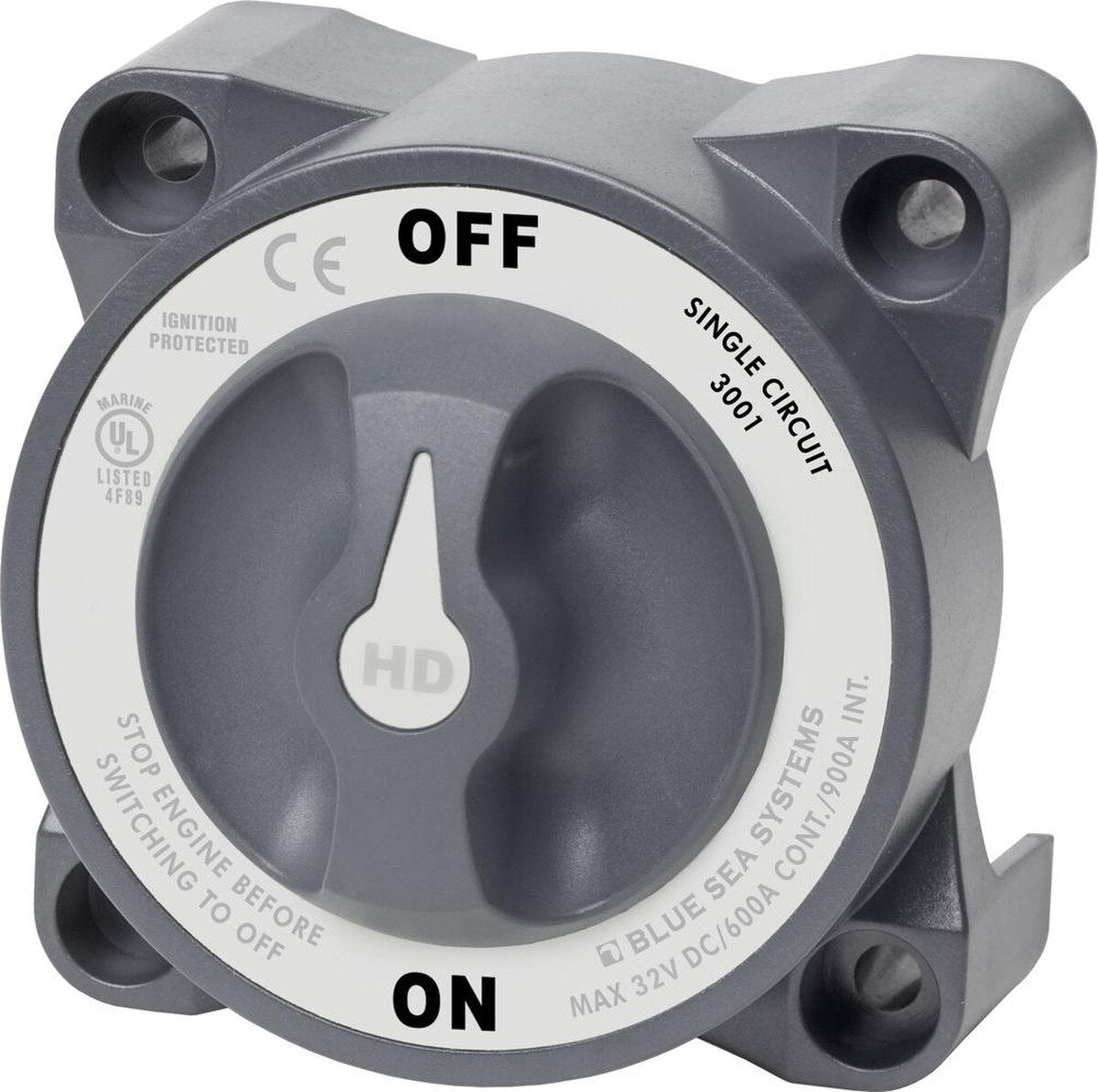

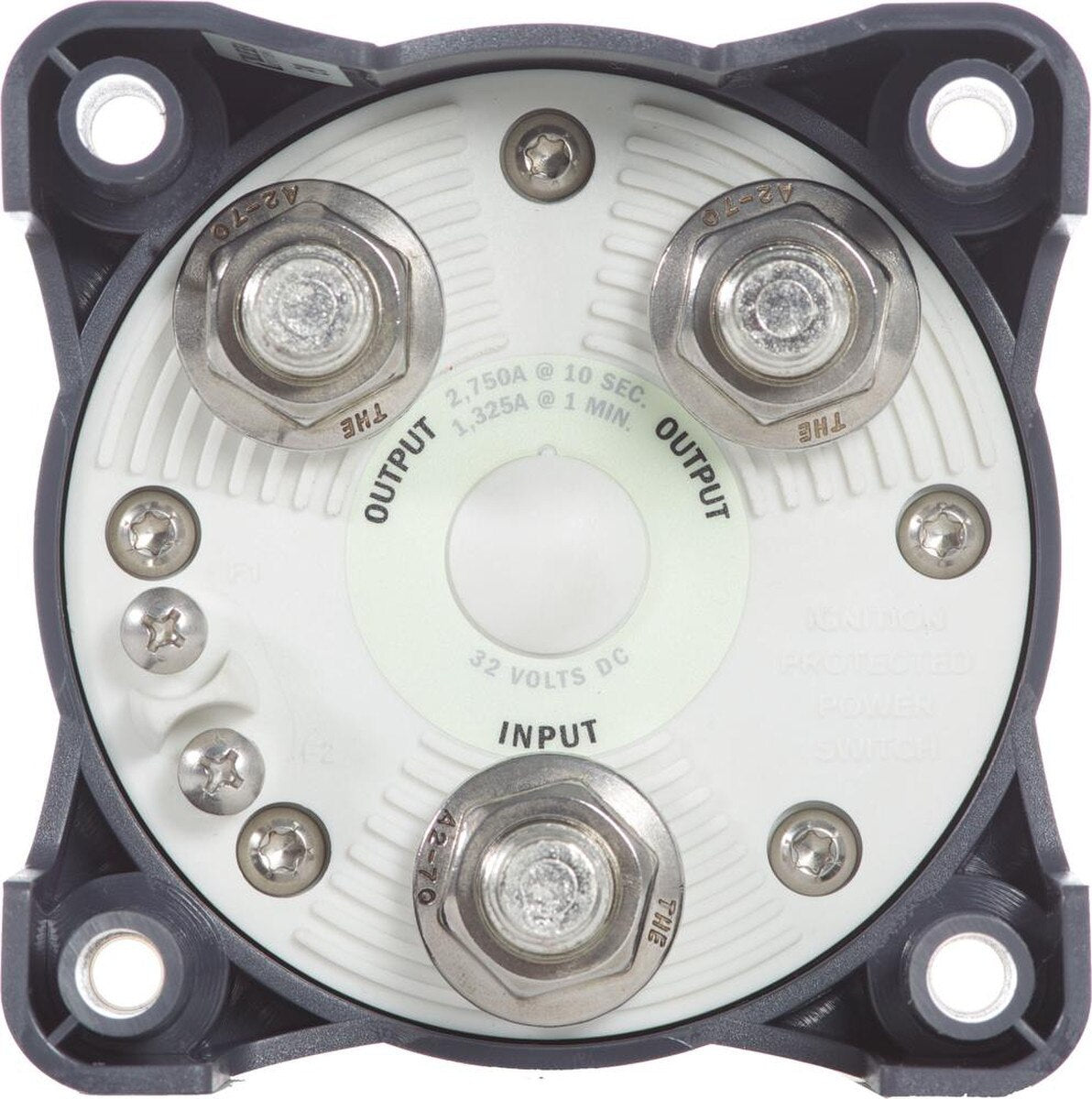

HD-Series Battery Switch - On/Off + AFD

$15099
Options
HD-Series Battery Switch - 1/Off/2/Both HD-Series Battery Switch - 1/Off/2/Both HD-Series Battery Switch - 1/Off/2/Both + AFD HD-Series Battery Switch - 1/Off/2/Both + AFD HD-Series Battery Switch - On/Off HD-Series Battery Switch - On/Off HD-Series Battery Switch - On/Off + AFD HD-Series Battery Switch - On/Off + AFD

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Switches a single battery to a single load group

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables

Especificaciones
  • MPN
    3001
  • Physical
    Dimensions: 3.85" x 3.85" x 3.09" (97.79 mm x 97.79 mm x 78.67 mm)
    Weight: 1.30 lbs (0.59 kg)
  • Mounting
    Type: Surface, Flat, Rear Mounting
    Screw Holes: 1/4"
  • Power
    Max Voltage: 32v DC
    Continuous Current: 500 A
    Intermittent Current (5min): 900 A
    Cranking Current: 1750 A
  • Connectivity
    Studs: 1/2"
  • Other
    Alternator Field Disconnect: Yes
  • IP Rating
    IP66
  • Certifications
    Ignition Protected, CE, ISO 8846, SAE J1171, UL 1107, UL 1500
