Blue Sea Systems  |  SKU: BSS/9010  |  Código de barras: 632085090104

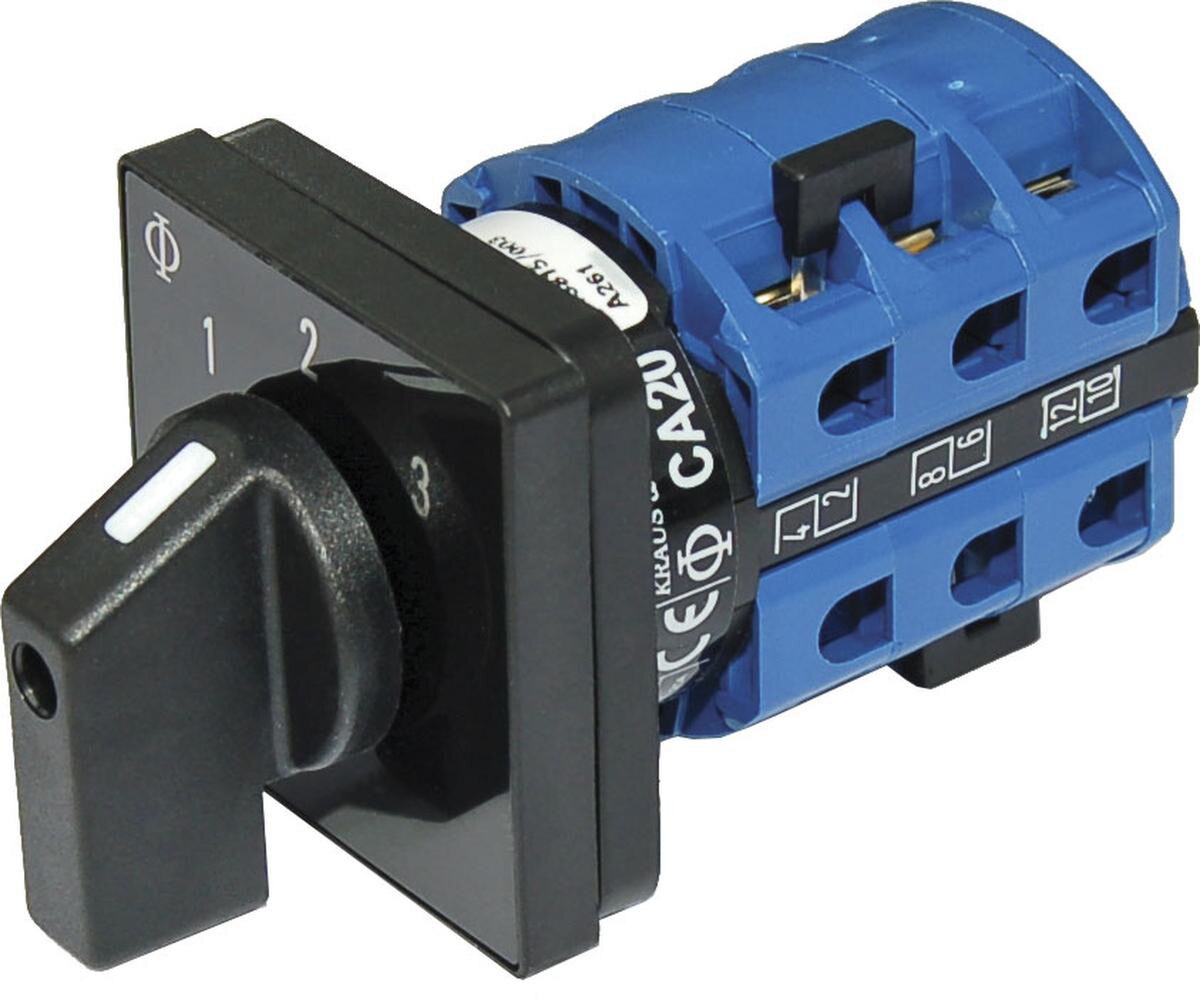

Rotary Switch - 3 Position (120v/30A)

$18999
Options
Rotary Switch - 2 Position (120v/30A)
Rotary Switch - 2 Position (120v/30A)

Rotary Switch - 2 Position (120v/65A)
Rotary Switch - 2 Position (120v/65A)

Rotary Switch - 3 Position (120v/30A)
Rotary Switch - 3 Position (120v/30A)

Rotary Switch - 2 Position (120v/30A) Rotary Switch - 2 Position (120v/30A) Rotary Switch - 2 Position (120v/65A) Rotary Switch - 2 Position (120v/65A) Rotary Switch - 3 Position (120v/30A) Rotary Switch - 3 Position (120v/30A)

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción
  • Switches 3 - 120 or 230 Volt AC sources
  • Compact solution when circuit protection is provided elsewhere
  • Allows connecting one of two different AC sources to one circuit
  • Mounts in panels up to 0.16 (4.00mm) thick
  • Mounts in panels up to 0.16 in (4.00mm) thick
  • Heavy duty industrial rated switch
  • Intuitive function - One hand operation
  • UL listed

Especificaciones
  • Product Series
    AC Rotary
  • MPN
    9010-BSS
  • Physical
    Dimensions:
    H: 1.89" (48.01 mm)
    W: 1.89" (48.01 mm)
    D: 2.41" (61.21 mm)
    Weight: 0.70 lbs (0.32 kg)
  • Power
    Nominal Voltage: 120v AC
    Max Voltage: 600v AC
    Max Amperage: 30 A
    Poles: 2
    Sources: 3
  • Certifications
    UL 508

Reseñas (0)

In The Box

In The Box:

AC Rotary Switch

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
