Discontinued
Clarion  |  SKU: CLA/010-03223-00

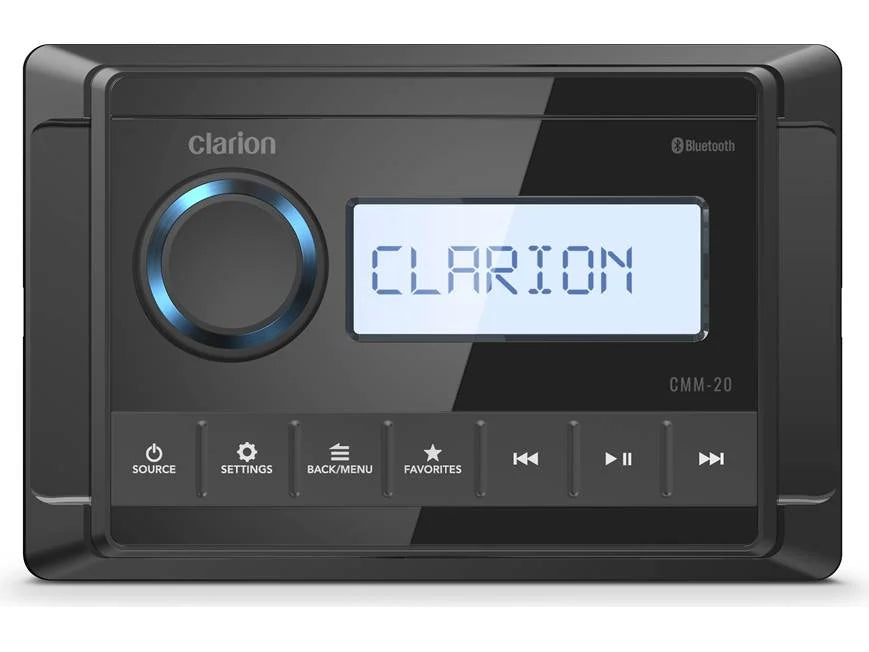

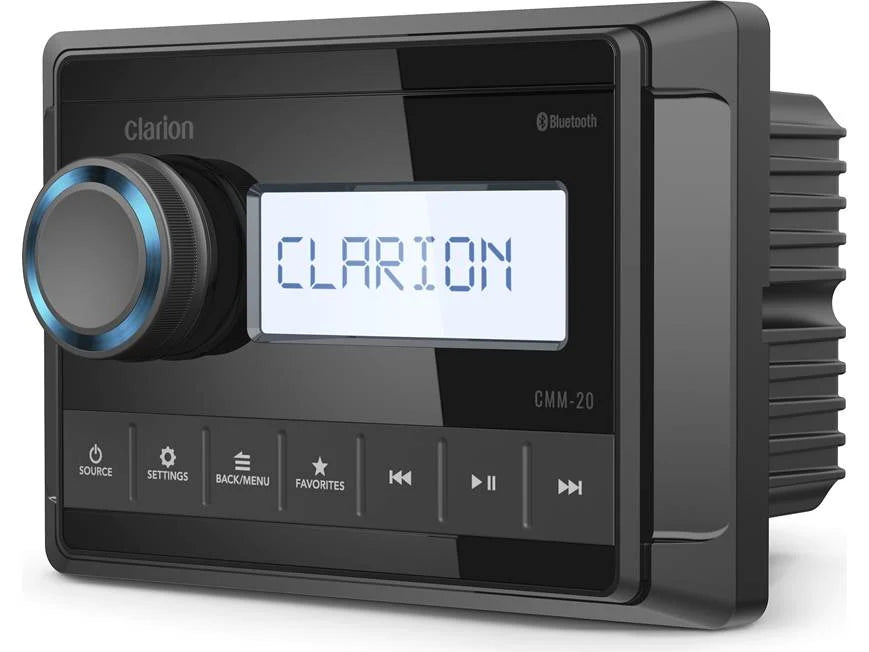

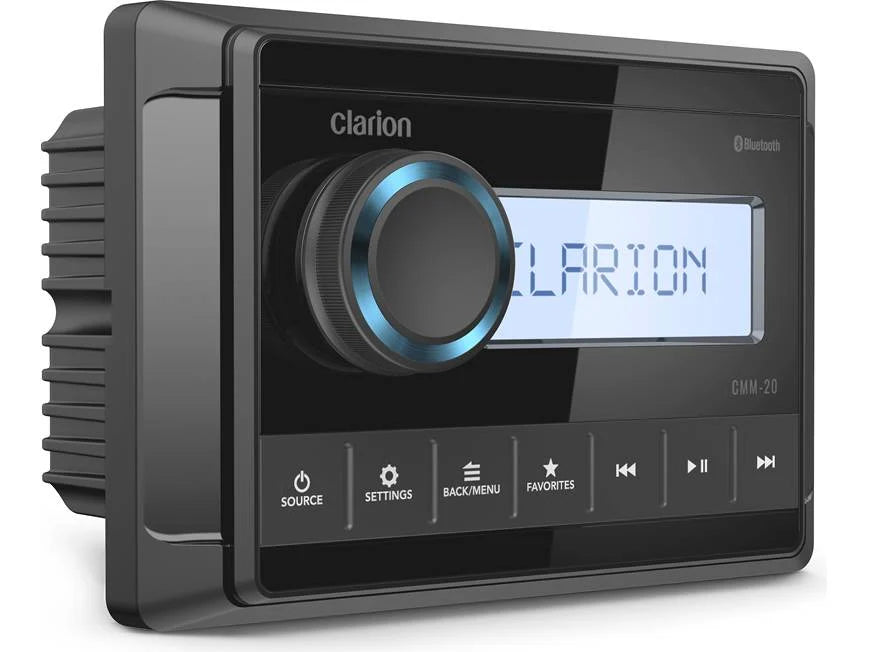

CMM-20

2-zone Source Unit

Precio normal $19999
Los gastos de envío se calcularán al momento de pagar.

DISCONTINUED

Limited To Stock Available

Discontinued:

Descripción

Enhance your boating experience with the CMM-20 Source Unit. The marine grade design ensures durability, while the 2.37" screen provides easy navigation. Enjoy seamless connectivity with bluetooth and USB capabilities, as well as full audio control with clarion remote support. Two audio zones allow for personalized sound throughout your vessel.

Especificaciones

  • Product Series
    CMM
  • MPN
    010-03223-00
  • Physical
    Dimensions:
    W: 5.94" (151 mm)
    H: 3.90" (99 mm)
    D: 3.15" (79 mm)
  • Mounting
    Cutout Width: 3.68" (94 mm)
    Cutout Height: 3.09" (79 mm)
  • Amplifier Power
    Built-In: Yes
    RMS Power Output:
    - 4ohm: 25 W x 4 @ 14.4 V input < 1% THD
    Zones: 2
    - Zone 1: Internal Amplifier
    - Zone 2: Internal Amplifier / External Amplification
  • Power
    Power Input: 10-16v DC
    Power Draw:
    - Standby: 33 mA
    - Max: 15 A
    Fuse: 15 A
  • Screen
    Type: TFT LCD
    Size: 2.37"
  • Connectivity
    Clarion Remote Control

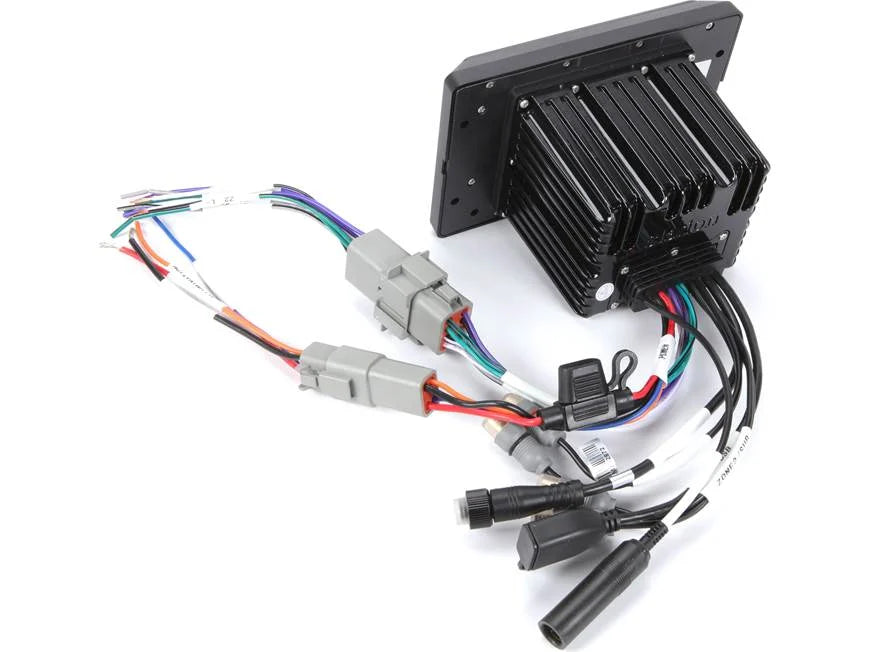

    Physical Connections
    - Power/Speakers (4)
    - Zone 2 Line Out
    - Aux In
    - USB
    - Antenna Input
    - Remote
  • Sources
    AM/FM
    Bluetooth
    USB
    Aux
  • IP Rating
    IP66
  • Temp Range
    -4° F to +140° F (-20° C to +60° C)

Reseñas (0)

In The Box

In The Box:

One marine source unit with trim ring (attached)
Power and speaker connections wire harness
One mounting gasket
One mounting template
Four mounting screws
Protective sun cover
Documentation

Package Dimensions:

  • 10"
  • 9"
  • 5"

Support/Warranty



Release Date:

Warranty: 1yr



* ALL WARRANTY IS THROUGH MANUFACTURE *
