Clarion  |  SKU: CLA/92804

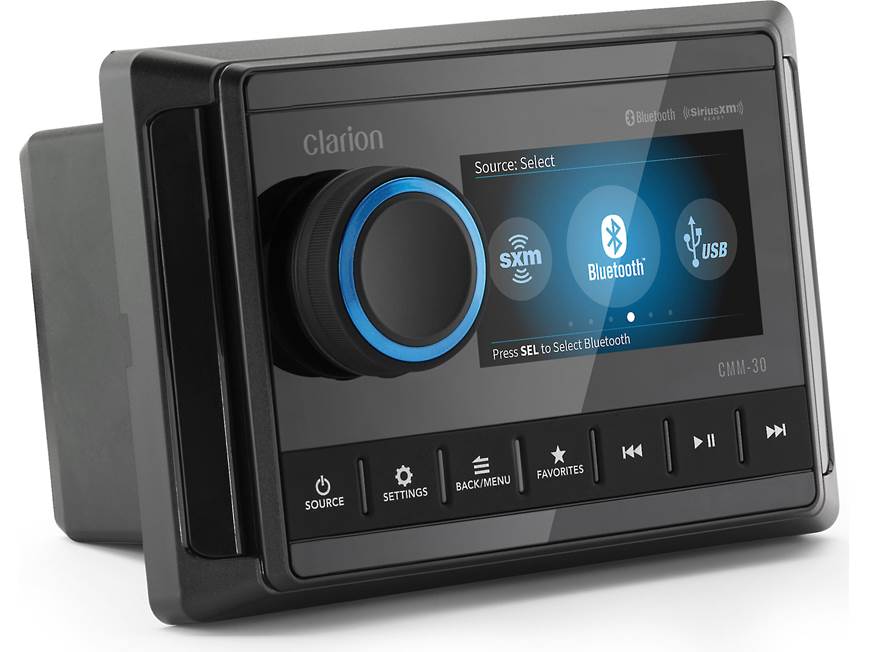

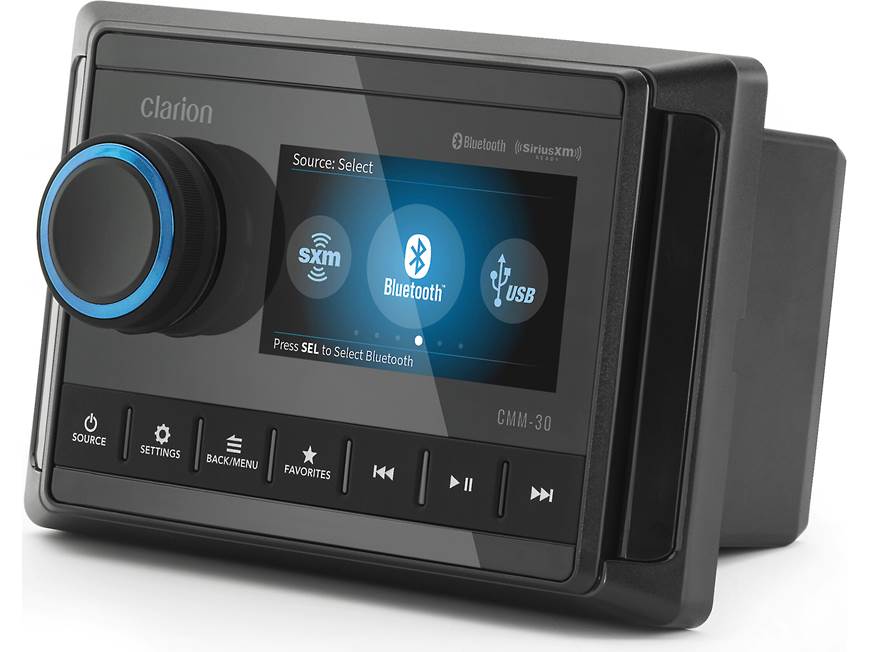

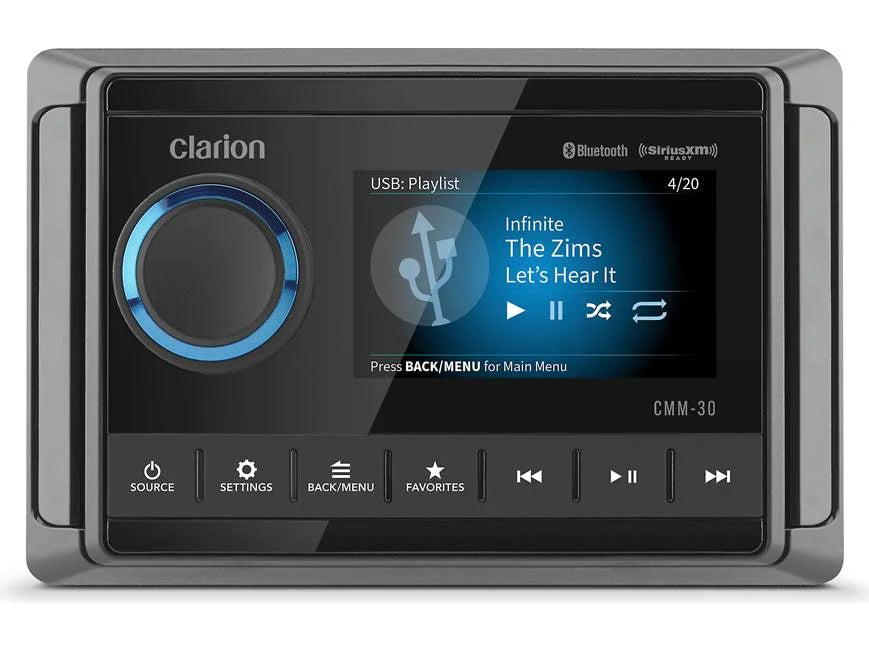

CMM-30

4-zone Source Unit

$42999
Los gastos de envío se calcularán al momento de pagar.

DISCONTINUED

Limited To Stock Available

Discontinued:

Descripción

The CMM-30 Source Unit is a versatile marine grade source unit with a 3" display. It features bluetooth connectivity, SiriusXM compatibility, and 4 zones of audio control. The unit can be controlled remotely via NMEA 2000 or a clarion remote, making it a convenient and high-quality addition to any marine audio system.

Especificaciones
  • Product Series
    CMM
  • MPN
    92804
  • Physical
    Dimensions:
    W: 5.94" (151 mm)
    H: 3.90" (99 mm)
    D: 2.95" (75 mm)
  • Mounting
    Cutout Width: 3.68" (94 mm)
    Cutout Height: 3.09" (79 mm)
  • Amplifier Power
    Built-In: Yes
    RMS Power Output:
    - 4ohm: 25 W x 4 @ 14.4 V input < 1% THD
    Zones: 4
    - Zone 1: Internal Amplifier / External Amplification
    - Zone 2: Internal Amplifier / External Amplification
    - Zone 3: External Amplification
    - Zone 4: External Amplification
  • Power
    Power Input: 10-16v DC
    Power Draw:
    - Standby: 33 mA
    - Max: 15 A
    Fuse: 15 A
  • Screen
    Type: TFT Full Color LCD
    Size: 3" (76mm)
    Resolution: 360 x 640
  • Connectivity
    NMEA 2000 Control
    Clarion Remote Control

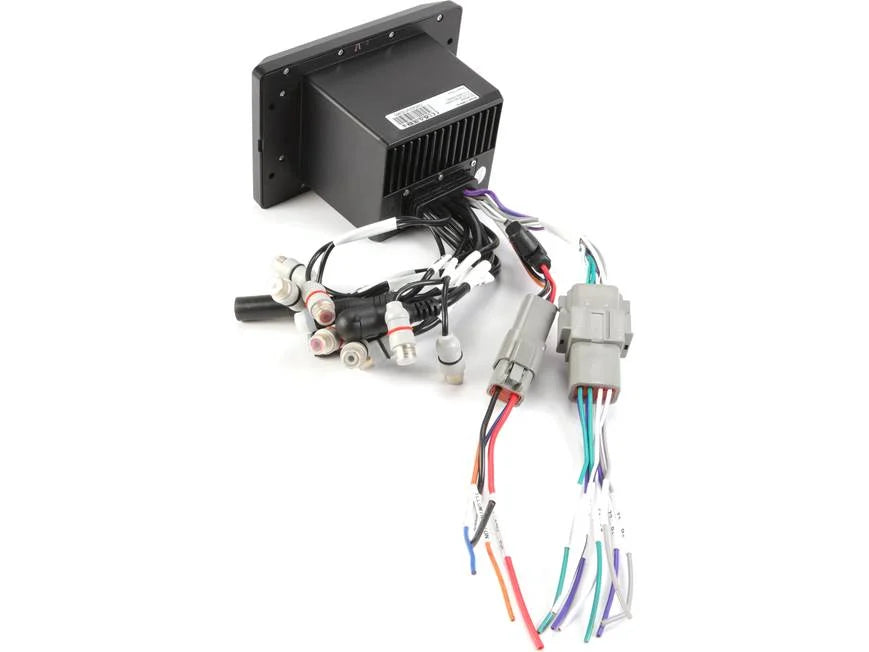

    Physical Connections
    - Power/Speakers (4)
    - Zone 1 Line Out
    - Zone 2 Line Out
    - Zone 3 Line Out
    - Zone 4 Line Out
    - Aux In
    - USB
    - Antenna Input
    - NMEA2000
    - Remote
    - SIruisXM
  • Sources
    AM/FM
    Bluetooth
    USB
    Aux
    SiriusXM Ready (Requires Tuner)
  • IP Rating
    IP66
  • Temp Range
    -4° F to +140° F (-20° C to +60° C)

Reseñas (0)

In The Box

In The Box:

Radio
Documentation

Package Dimensions:

  • 10"
  • 9"
  • 5"

Support/Warranty



Release Date:

Warranty: 1yr



* ALL WARRANTY IS THROUGH MANUFACTURE *
