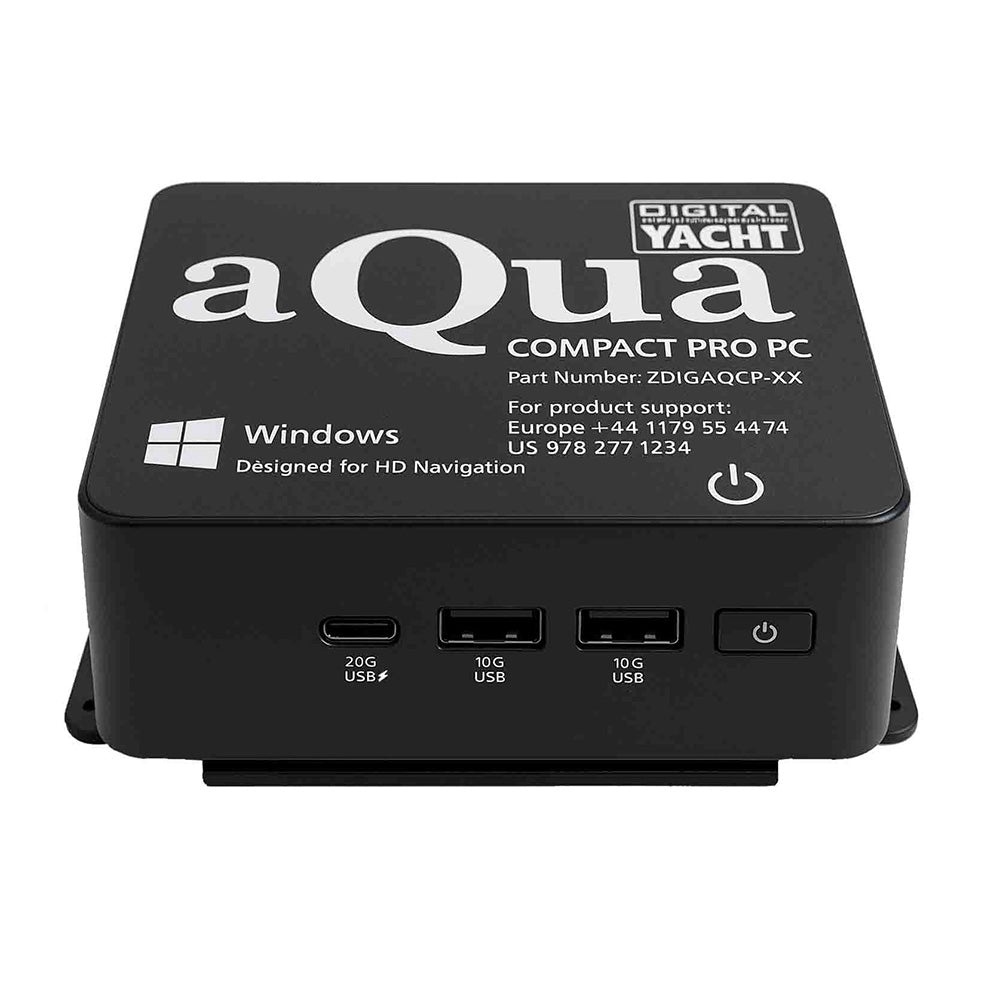

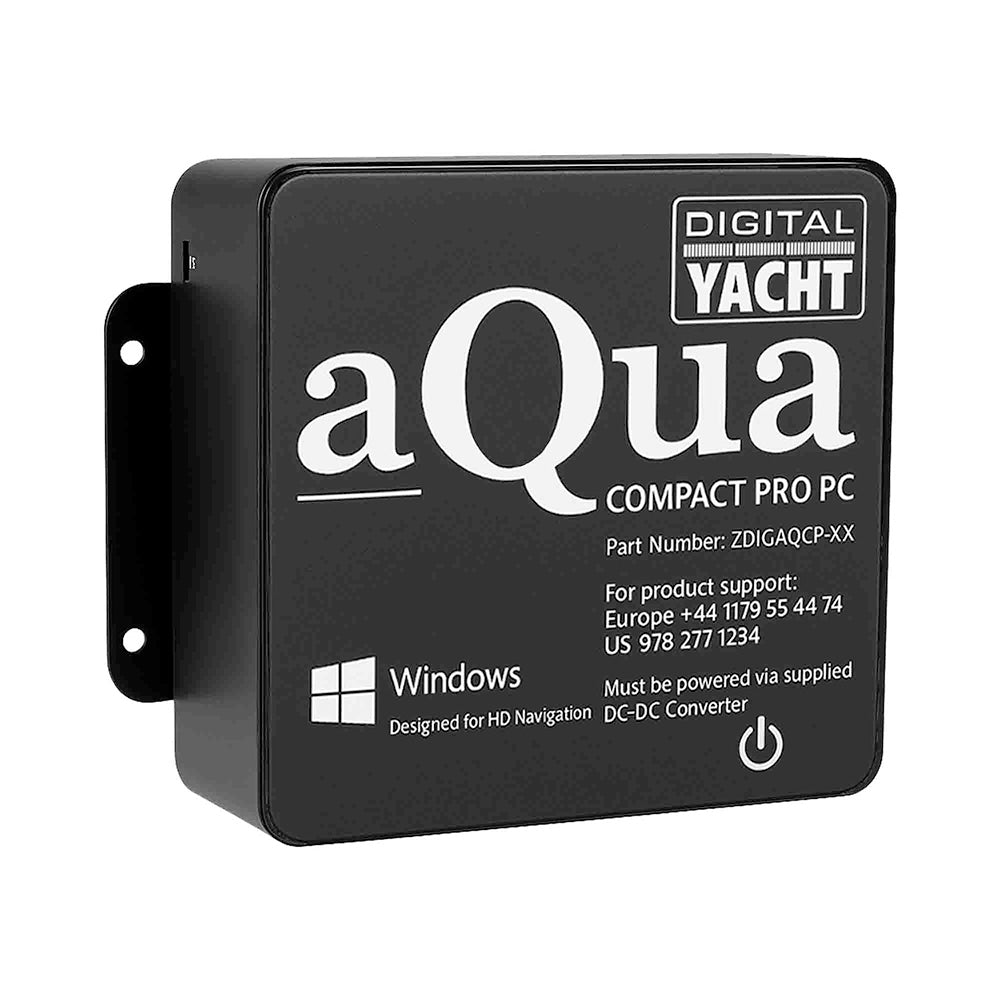

Aqua Compact Pro+ PC
The Aqua Compact Pro+ utilizes the latest generation Intel Core i7 processor for modern 3D charting and radar overlay applications. Despite this, average power consumption is around 25W, keeping battery drain to a minimum.
The new Aqua Compact Pro+ now has a larger rugged 480GB solid state hard drive too, and it's fitted with 8GB of RAM. In terms of connectivity, there are 4 x USB ports and an audio headset connector.
The new unit supports up to 3 displays via a dedicated HDMI connector and also a Thunderbolt/USB-C connector, which can support displays with an appropriate cable. 7.1 multichannel digital audio is supported over these display connections, too, so it’s ideal as an on-board media entertainment center.
Network connectivity is provided by a wired Ethernet Gigabit port as well as the latest Intel wifi card, which supports 802.11ax protocols (2.4 and 5GHz with up to 3x bandwidth) and has built-in Bluetooth 5 for easy connectivity.
The Aqua Pro+ has found markets in commercial fishing where users want charting, radar, and bathymetry/sonar overlays, which demand fast 3D graphics. The Aqua Compact Pro+ is optimized for Maxsea TimeZero systems. We are also seeing many ocean racing yachts opt for these systems for the best-in-class animated weather routing displays. The new Aqua Compact Pro+ is also supplied with an external voltage stabilizer to ensure 100% reliability on low-voltage systems, which are affected by voltage drops.
Specifications
Specifications
Identification
| MPN | ZDIGAQCPPL |
|---|---|
| Barcode | 081159830632 |
General
| Note 1 | The perfect solution for demanding navigation applications like MaxSea/Nobeltec TimeZero, even with radar and 3D integration |
|---|---|
| Note 2 | Direct 12v DC Operation (8-19v input), approx 25W power consumption |
| Note 3 | Intel i7 processor (latest generation) |
| Note 4 | 8GB RAM and super-fast 480GB rugged solid-state drive |
| Note 5 | 3 x display outputs – full-size HDMI and USB-C |
| Note 6 | Bluetooth 5 and Dual Band WiFi built in (plus wired gigabit network port) |
| Note 7 | 4 x USB Type-A ports with charging mode on the front panel port |
| Note 8 | 2 x Thunderbolt ports |
| Note 9 | 1 x Ethernet port |
| Note 10 | Front panel-mounted audio jack for audio in/out – ideal as a media center |
| Note 11 | Windows 11 operating system |
| Note 12 | Built-in mic for Cortana speech control and recognition |
| Note 13 | Just 115mm x 110mm x 50mm |
| Note 14 | Easy installation with supplied mounting bracket, power cable, and Windows License |
| Note 15 | LINUX option at no extra charge |
