SKU:
EME/3912
Precio normal
$5390
Precio unitario
Descripción
Descripción

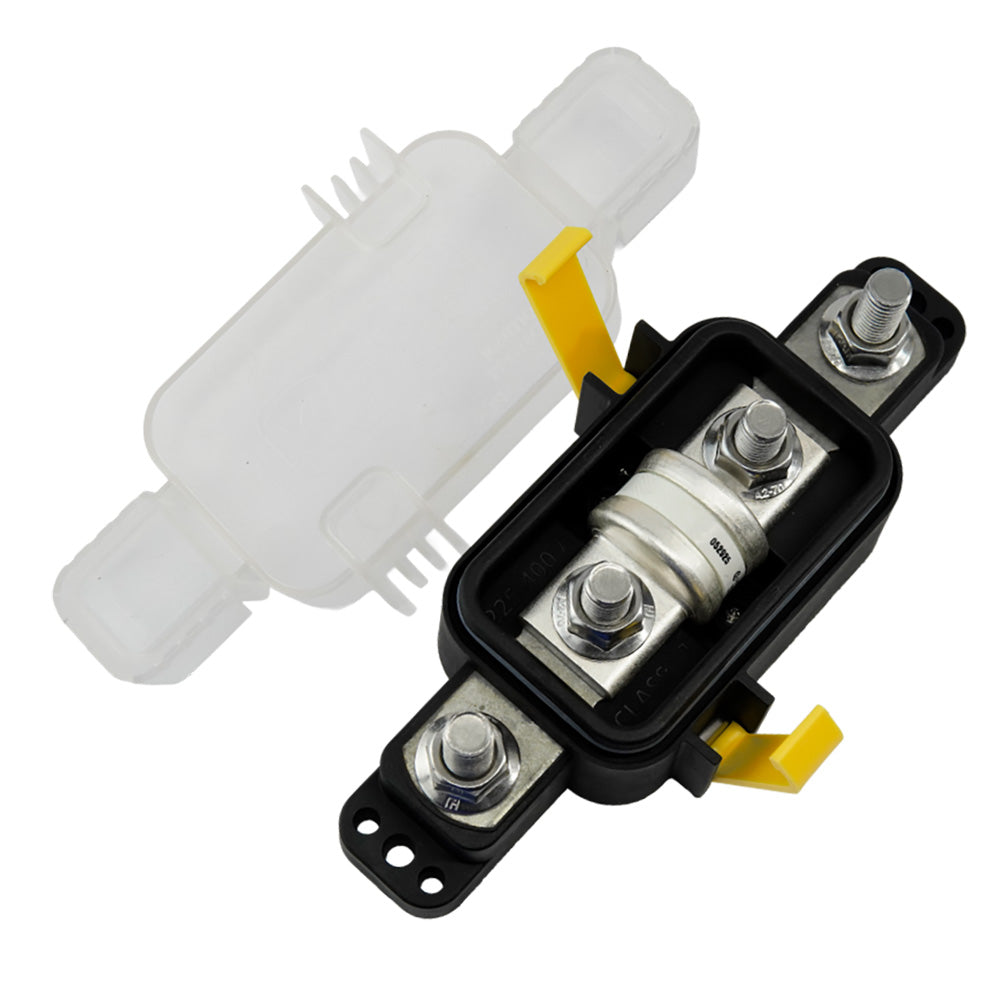

Class T Fuse Block 225-400 A - Sealed
Applications/Problems This Solves:
- Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
- Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.
Features:
- Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
- Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
- Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
- 4 Year Warranty
Specifications
Specifications
Identification
| MPN | 3912 |
|---|---|
| Barcode | 850067590729 |
Electrical
| Maximum Amperage | 225-400A |
|---|---|
| Max Voltage | 80 VDC |
Certifications & Protection
| Ingress Protection Ratings | IP66, IP67, IP6K9K |
|---|
Physical
| Mounting Holes | 4x #10 (M5) & 2x 1/4" (M6) |
|---|---|
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
General
| Busbar Material | Tin-Plated Copper |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
