Egis RT Fuse Block 12 Position w/Ground & LED Indication
Precio normal
$6120
Precio unitario
SKU:
EME/8026
Precio normal
$6120
Precio unitario
Descripción
Descripción

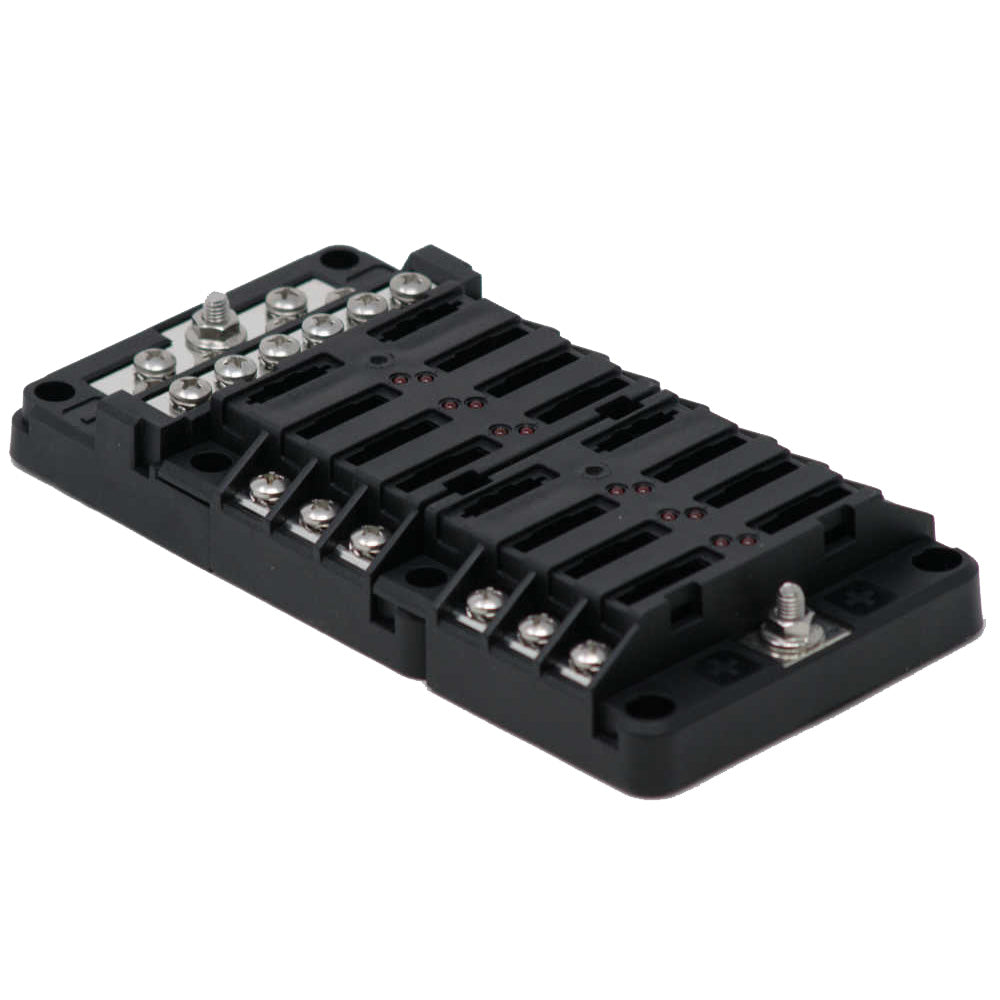

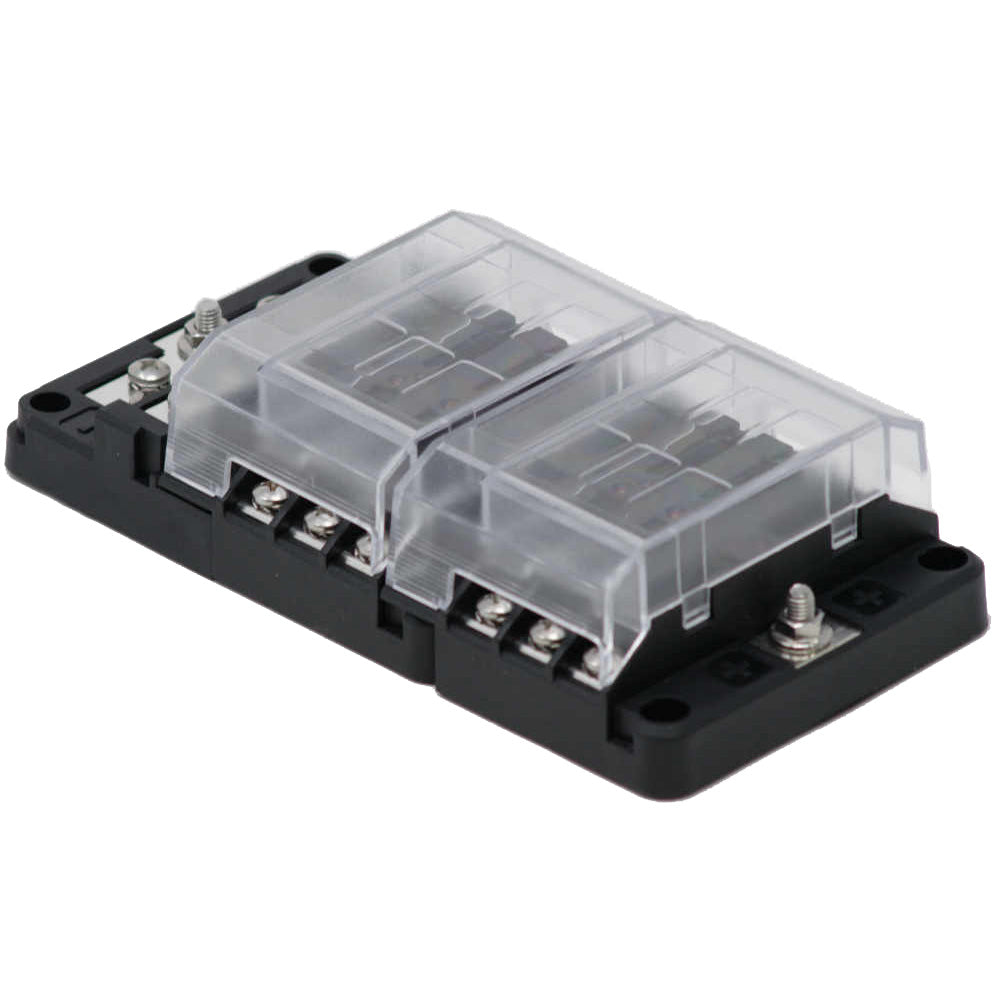

RT Fuse Block 12 Position with Ground & LED Indication
This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.
Applications:
- Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
- Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.
Features:
- Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
- Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
- Supports SAE circuit protection standards for thermal/short circuit events
Specifications
Specifications
Identification
| MPN | 8026 |
|---|---|
| Barcode | 850035199725 |
Electrical
| Maximum Current (Entire Block) Amps | 10 |
|---|---|
| Maximum Current (Per Circuit) Amps | 30 |
| Voltage Range VDC | 0-36 |
| Number of Fuse Positions | 12 |
| Compatible Fuse Types | ATO / ATC / ATF |
Physical
| Max Output Wire Size | #10 AWG |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
