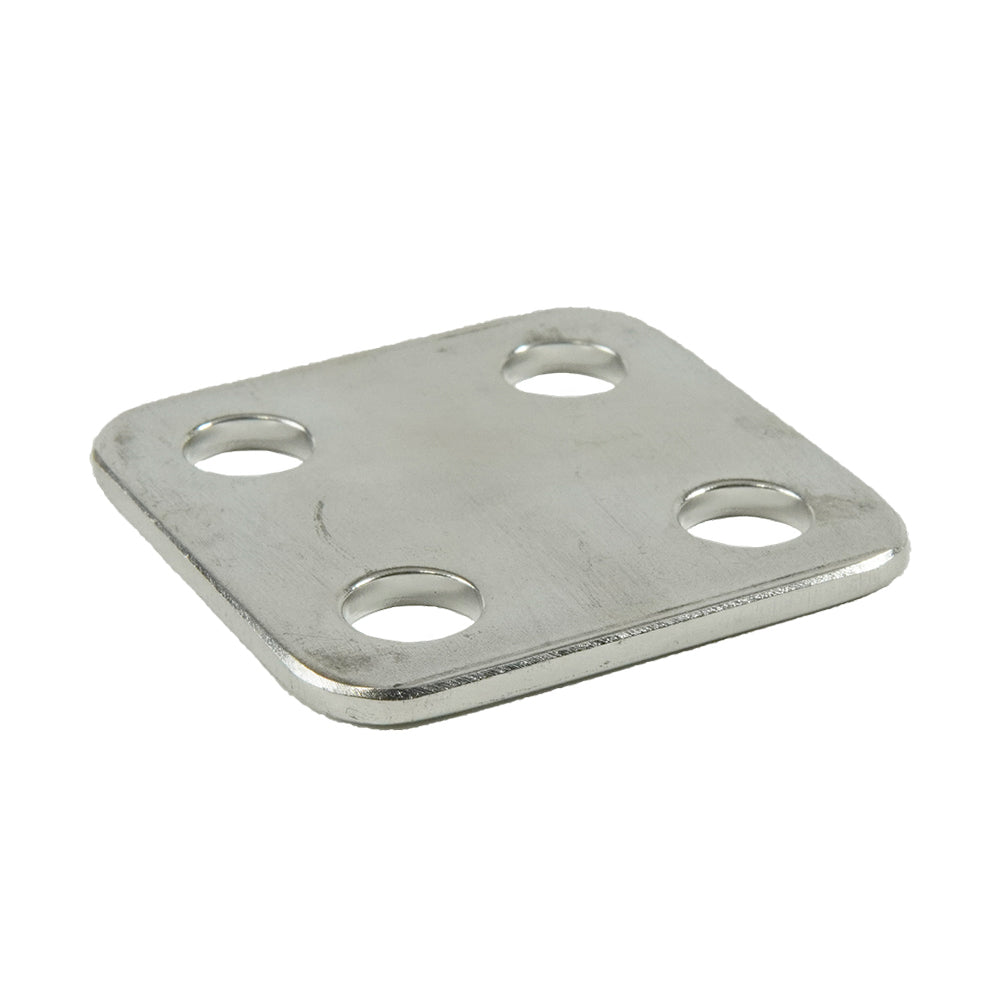

Egis 4 Hole Quad Shaped Busbar Connector

4 Hole Quad Shaped Busbar Connector

Link Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.

Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.

Specifications:

• Continuous Current (Amps): 500
• Max Voltage (Vdc): 72
• Material: Tin Plated Copper
• Size: 90mm x 90mm
• Thickness: 2.8 mm (1/8")
• Terminal Stud Hole Size: 10.5mm (3/8")

In The Box:

Package Dimensions:

7" x 3" x 1"

Available Method: Ground

* ALL WARRANTY IS THROUGH MANUFACTURE *
