SKU:
FIR/G-2BB-R
Precio normal
$92000
Precio unitario
Descripción
Descripción

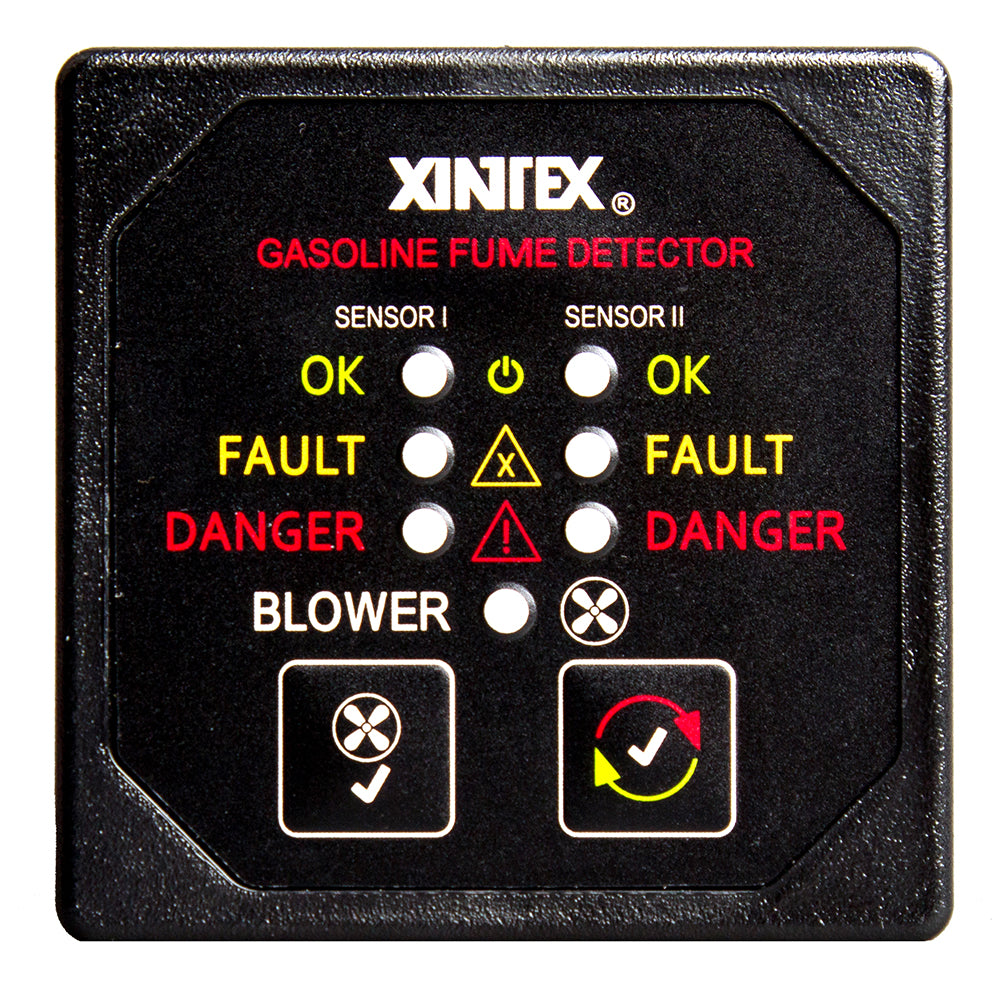

Gasoline Fume Detector with Dual Channel and Blower Control - 12/24V
The Dual Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.
Complete system includes Blower Control Relay, easy installation and precise monitoring.
Features:
- Simple Installation
- Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
- Monitors two (2) separate areas simultaneously
- Automatically activates bilge blower
Specifications
Specifications
Identification
| MPN | G-2BB-R |
|---|---|
| Barcode | 619749202561 |
General
| Operating Temperature | -40° to 185°F (-40° to 85°C) |
|---|---|
| Alarm Horn | 68 dB |
| Display Style | Square with Black Bezel |
Electrical
| Current Draw Nominal | 55mA |
|---|---|
| Current Draw Maximum | 150mA |
| Operating Voltage | 9 to 30V DC |
Physical
| Display Dimensions | 2-5/8" x 2-5/8" (6.7 x 6.7 cm) |
|---|---|
| Cutout Dimension | 2-1/8" (5.4 cm) round hole |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
