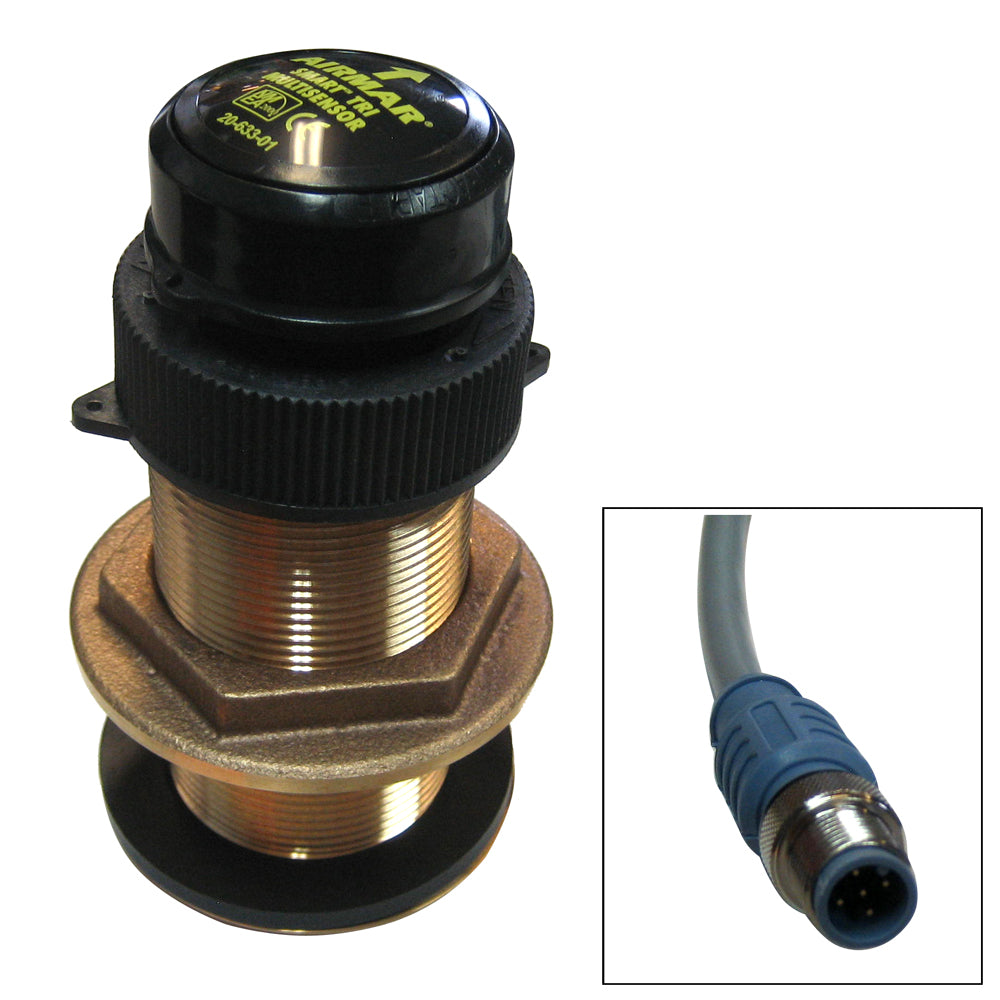

Furuno DT-800MSF - Airmar B617V Housing Style Transducer
Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4') of water and can reach depths up to 180M (600')
Standard Features:
- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Specifications
Specifications
Identification
| MPN | DT-800MSF |
|---|---|
| Barcode | 611679330543 |
Physical
| Weight | 1.5kg (3.4lb) |
|---|---|
| Minimum Sounding Depth | 0.5M (1.6') |
| Maximum Sounding Depth | 180M (590) |
| Standard Cable Length | 6M |
General
| Acoustic Window | Urethane |
|---|---|
| Data Update Rate | 1 per second |
| Pressure Rating | 3M (10') |
| NMEA 2000® Load Equivalency Number (LEN) | 4 *p/nm = pulses per nautical mile |
Certifications & Protection
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot) |
|---|
Electrical
| Smart Sensor Supply Voltage at 100% Sound Power Output | 10 VDC to 25 VDC |
|---|---|
| Supply Current | 40 mA |
