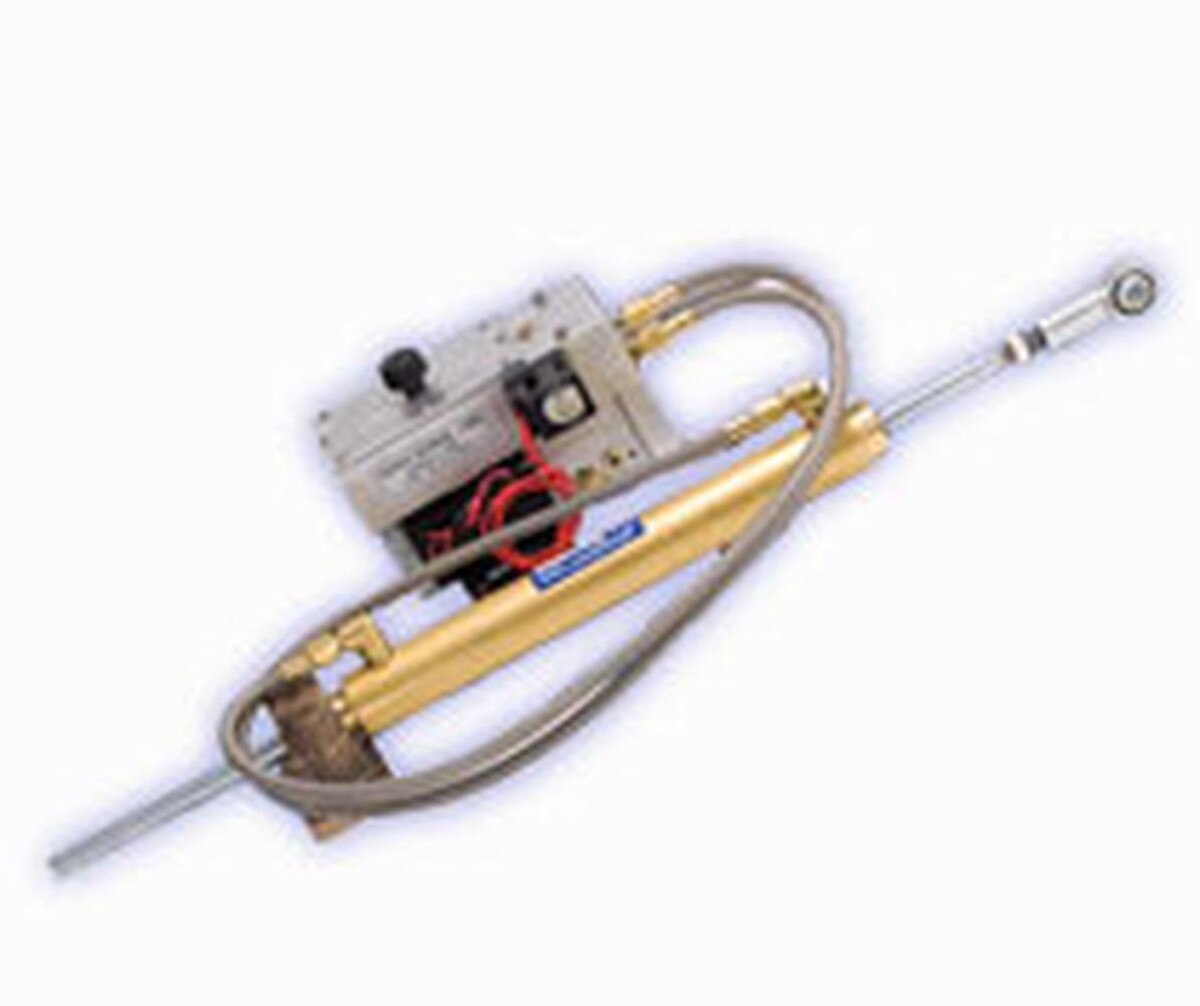

The Accusteer PUMPLA11-12 Linear Actuator is designed to interface an autopilot system with mechanical steering systems such as wire, cable or chain drives. This linear actuator consists of a hydraulic drive unit, steering cylinder, and interconnecting hoses.This unit is also available as the PUMPLA17-12 using a 1.75 in x 12 in RAM.

• Heavy-duty brass cylinder (2 in bore x 11 in stroke)
• 1.5 in x 9 in RAM
• Stainless steel braid covered hoses
• Compact and rugged drive unit
• Average Motor Current: 3-6 Amps ? PUMPLA11-12 (12VDC Motor)
• Cylinder Design: Balanced
• Max Cylinder Stroke and Swept Volume: 9 in. (23 cm) and 13.1 cubic in. (215 cc)
• Solenoid/Clutch Current Draw: 1.5 Amps (12V)/0.75 Amps (24V)
• Max Cylinder Thrust @ 500 psi: 785 lbs (356 kg)
• Hard Over Time (HOH): About 13 Seconds
• Maximum Rudder Torque (+/-35 deg. @ 8 in. Rudder Shaft to Tiller Bolt Distance): 6280 in. lbs. (710 Nm)
• Raymarine Equivalent Linear Drive: TYPE 1 (Recommended Maximum Boat Displacement = 22,000lbs (10,000kg))
• Simrad Equivalent Linear Drive: HLD350

In The Box:

Package Dimensions:

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
