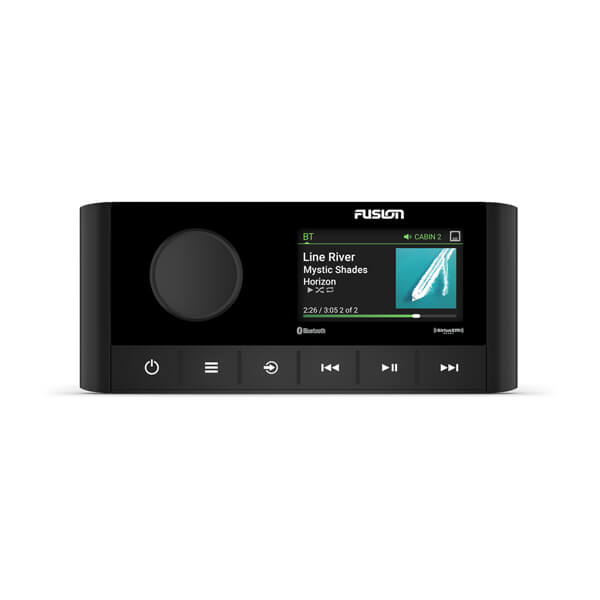

Unidad fuente RA210
Descripción
Descripción
REFERENCIA INDUSTRAL PARA EL ENTRETENIMIENTO MARÍTIMO
El estéreo marino MS-RA210 de Fusion ® es una incorporación elegante a su embarcación. Incorporando algunas de las características clave de la serie Apollo ™ , el estéreo incluye tecnología de procesamiento de señal digital (DSP) incorporada, estética de diseño moderno y opciones de fuente avanzadas.
Specifications
Specifications
Identification
| MPN | 010-02250-00 |
|---|---|
| Barcode | 753759240363 |
Dimensions
| Dimension | 6.18" x 2.68" x 4.99" (156 x 68 x 126.6 mm) |
|---|---|
| Cutout Dimensions (W/H/D) | 5-5/16" x 2-1/16" x 4-1/4" |
| Weight | 0.77 lbs (350 g) |
Audio
| Amplifier | Class-D (4 ohm) |
|---|---|
| Peak Power | 200 W |
| Rated Power Output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
General
| Water Rating | IPX6 and IPX7 (front panel only, when properly installed) |
|---|---|
| Display | 2.7" optically bonded color LCD |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
| Multi-Language Interface | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish |
Electrical Features
| Power Input | 10.8 - 16 VDC |
|---|---|
| Compass-Safe Distance | 5.9" (150 mm) |
Stereo Features
| Built-in Digital Signal Processing (DSP) | Yes (with custom DSP profile setup using Garmin Audio app) |
|---|---|
| Garmin Audio Control | Yes (MFD, smart device and Garmin watch) |
| Multi-Zone™ Technology | 2 zones |
| Bluetooth® Wireless Technology | Yes |
| ANT® Wireless Technology | Yes |
| SiriusXM-Ready | Yes |
| DAB+ Ready | Yes |
| Supports NRX Wired Remote | Yes |
| Software Updates | USB |
Sources
| Supported Sources | AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, MTP |
|---|---|
| SiriusXM-Ready | U.S. only, requires optional SiriusXM Connect vehicle tuner |
| DAB+ Ready | available in Europe and Australia only |
Networking & Connections
| Auxiliary Inputs (RCA) | 1 |
|---|---|
| NMEA 2000® Ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 Ports | 1 |
| SiriusXM Ports | 1 |
| AM/FM Ports (Motorola antenna connector) | 1 |
| Speaker Connections | 4 (2 zone amplified) |
| RCA Pre-Out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line Out | 2 (L + R per zone, requires external amplification) |
| Subwoofer Out | 2 (1 mono output per zone, requires external amplification) |
| Wireless Frequencies/Protocols | BLUETOOTH®: 2.4 GHz @ +12 dBm nominal; ANT®: 2.4 GHz @ +7 dBm nominal |
| ANT® Wireless Range | Up to 10 ft |
| Bluetooth® Wireless Range | up to 30 ft |
